8.14
8.14.1
Water, spare
parts, tool
Prerequisites
Topping up
Maintenance manual
GMK5250L

Other maintenance work

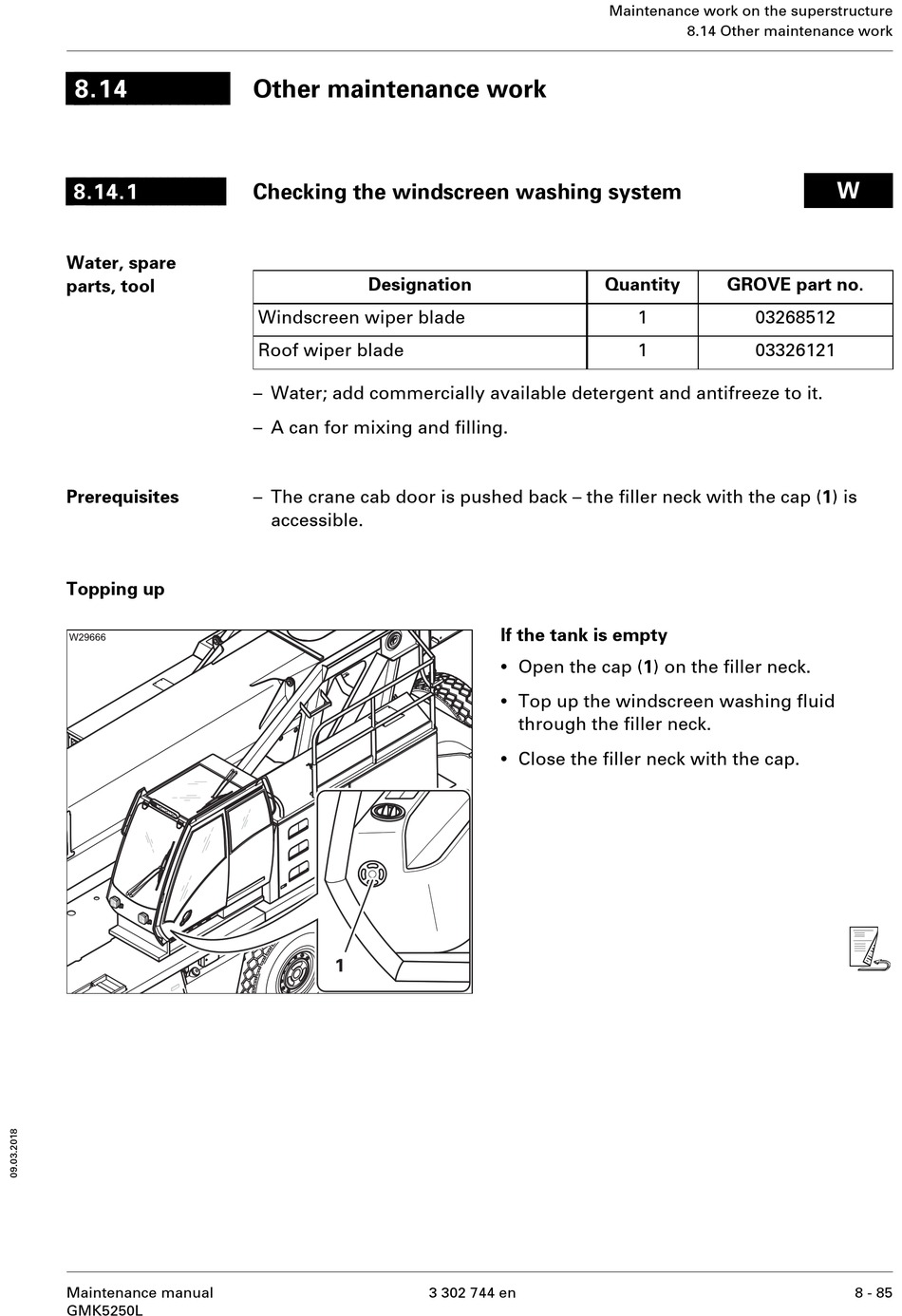

Checking the windscreen washing system

Designation
Windscreen wiper blade
Roof wiper blade
– Water; add commercially available detergent and antifreeze to it.
– A can for mixing and filling.
– The crane cab door is pushed back – the filler neck with the cap (1) is
accessible.
If the tank is empty
•
Open the cap (1) on the filler neck.
•
Top up the windscreen washing fluid
through the filler neck.
•
Close the filler neck with the cap.
3 302 744 en
Maintenance work on the superstructure
8.14 Other maintenance work
Quantity GROVE part no.
1 03268512
1 03326121
W
s
8 - 85
