th
4 axle line
S
Maintenance manual
GMK5250L

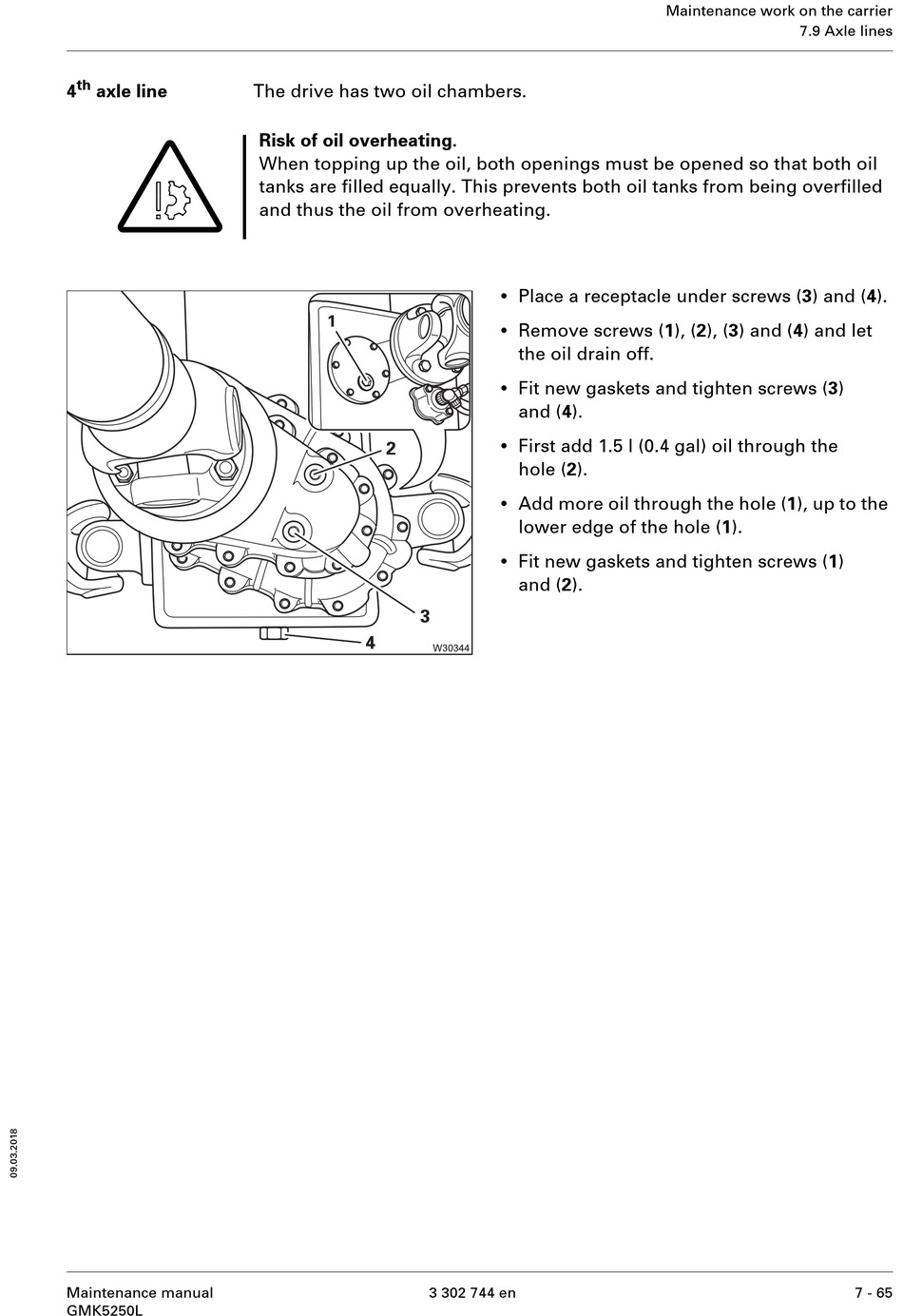

The drive has two oil chambers.
Risk of oil overheating.
When topping up the oil, both openings must be opened so that both oil
tanks are filled equally. This prevents both oil tanks from being overfilled
and thus the oil from overheating.
•
Place a receptacle under screws (3) and (4).
•
Remove screws (1), (2), (3) and (4) and let
the oil drain off.
•
Fit new gaskets and tighten screws (3)
and (4).
•
First add 1.5 l (0.4 gal) oil through the
hole (2).
•
Add more oil through the hole (1), up to the
lower edge of the hole (1).
•
Fit new gaskets and tighten screws (1)
and (2).
3 302 744 en
Maintenance work on the carrier
7.9 Axle lines
7 - 65
