Maintenance work on the carrier
7.15 Hydraulic system

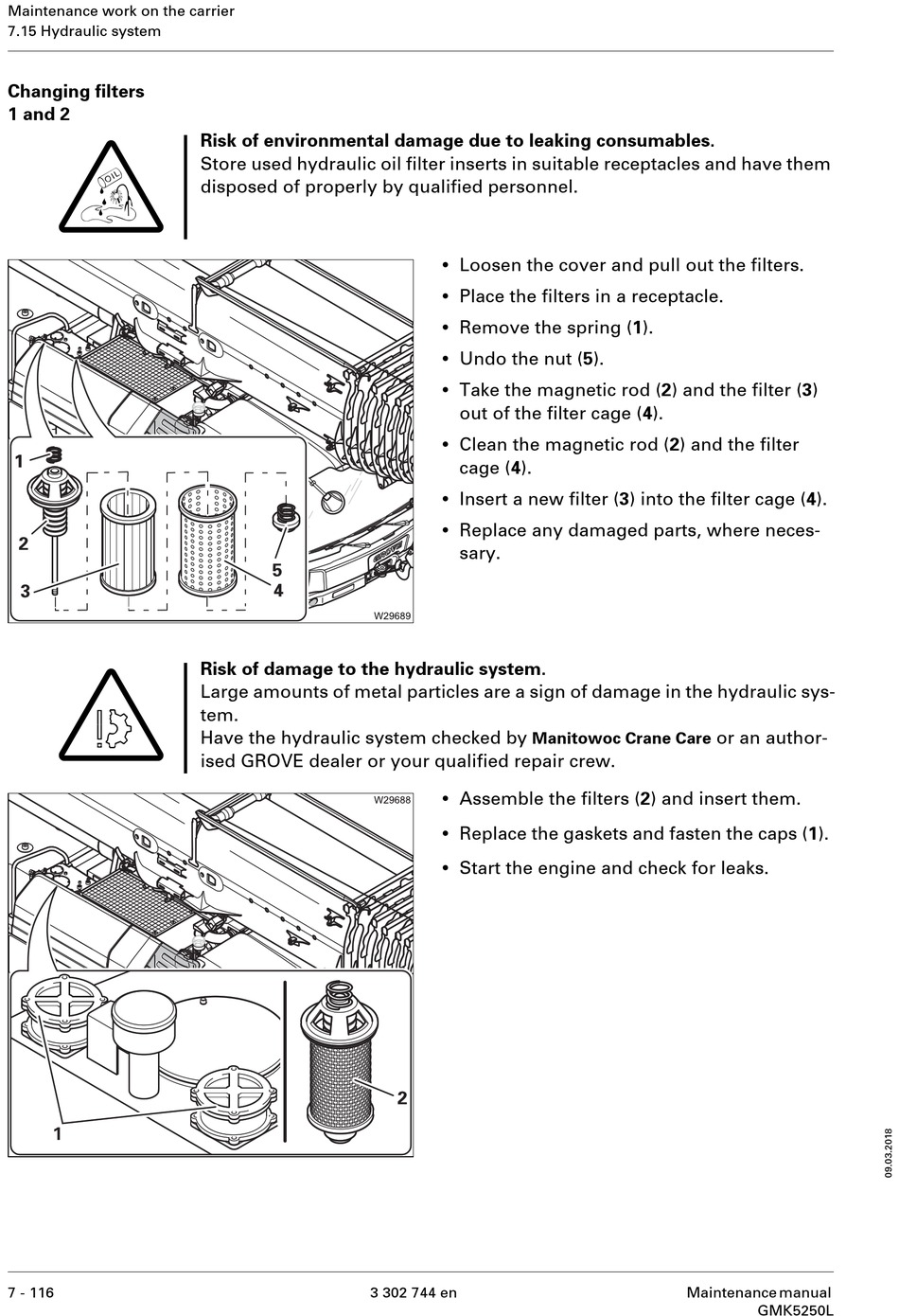

Changing filters
1 and 2
O
S
7 - 116
Risk of environmental damage due to leaking consumables.
Store used hydraulic oil filter inserts in suitable receptacles and have them
disposed of properly by qualified personnel.
Risk of damage to the hydraulic system.
Large amounts of metal particles are a sign of damage in the hydraulic sys-
tem.
Have the hydraulic system checked by
ised GROVE dealer or your qualified repair crew.
3 302 744 en
•
Loosen the cover and pull out the filters.
•
Place the filters in a receptacle.
•
Remove the spring (1).
•
Undo the nut (5).
•
Take the magnetic rod (2) and the filter (3)
out of the filter cage (4).
•
Clean the magnetic rod (2) and the filter
cage (4).
•
Insert a new filter (3) into the filter cage (4).
•
Replace any damaged parts, where neces-
sary.
Manitowoc Crane Care
•
Assemble the filters (2) and insert them.
•
Replace the gaskets and fasten the caps (1).
•
Start the engine and check for leaks.
or an author-
