7.9.4
Spare parts and
tools
Prerequisites
Checking the oil
level
Maintenance manual
GMK5250L

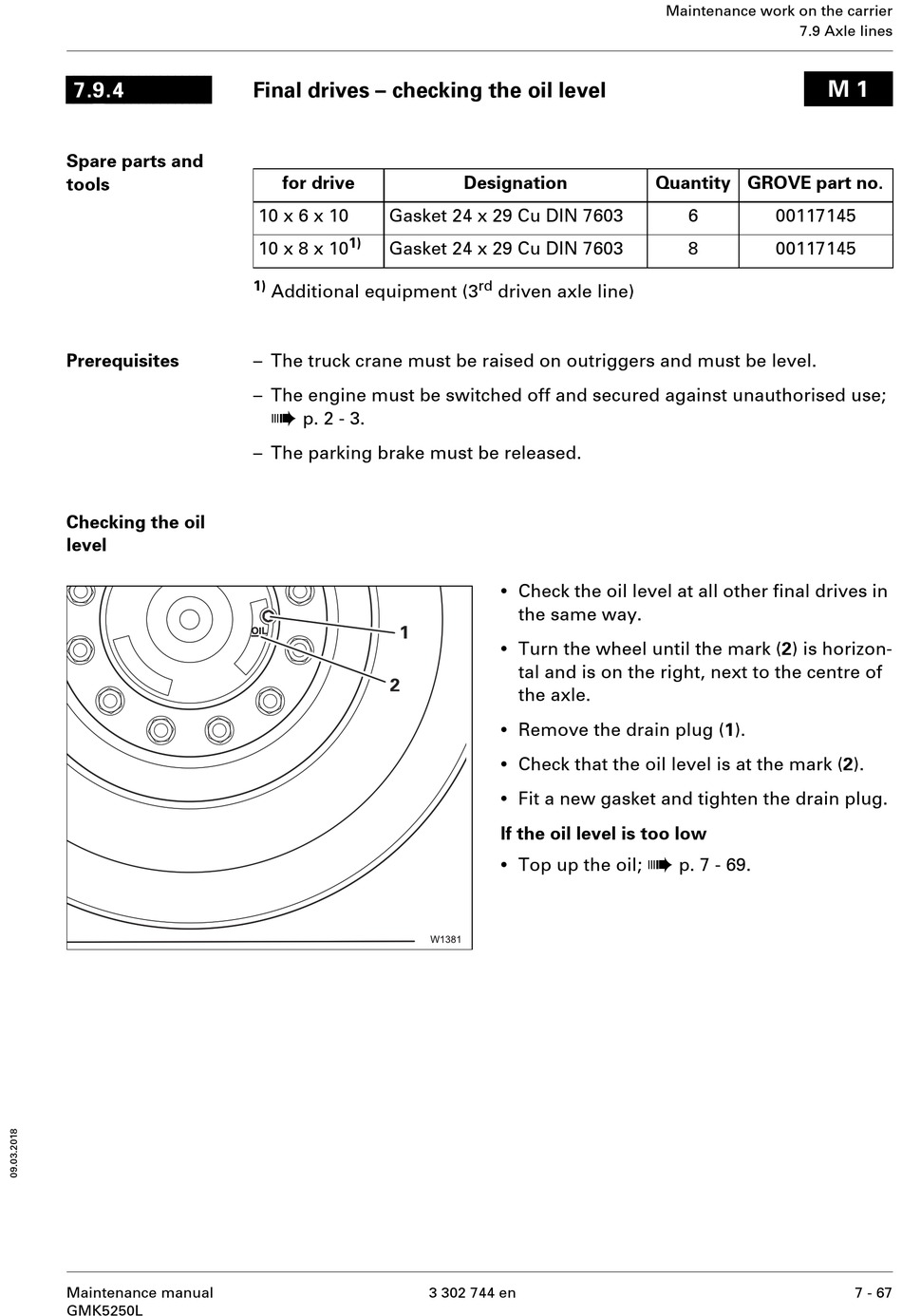

Final drives – checking the oil level
for drive
10 x 6 x 10 Gasket 24 x 29 Cu DIN 7603
1)
10 x 8 x 10 Gasket 24 x 29 Cu DIN 7603
1)
Additional equipment (3
– The truck crane must be raised on outriggers and must be level.
– The engine must be switched off and secured against unauthorised use;
à
p. 2 - 3.
– The parking brake must be released.
Designation
rd
driven axle line)
•
Check the oil level at all other final drives in
the same way.
•
Turn the wheel until the mark (2) is horizon-
tal and is on the right, next to the centre of
the axle.
•
Remove the drain plug (1).
•
Check that the oil level is at the mark (2).
•
Fit a new gasket and tighten the drain plug.
If the oil level is too low
•
Top up the oil;
3 302 744 en
Maintenance work on the carrier
7.9 Axle lines
Quantity GROVE part no.
6 00117145
8 00117145
à
p. 7 - 69.
M 1
7 - 67
