Draining oil
Topping up the oil
Maintenance manual
GMK5250L
•
Change the oil on all final drives in the same
way.
•

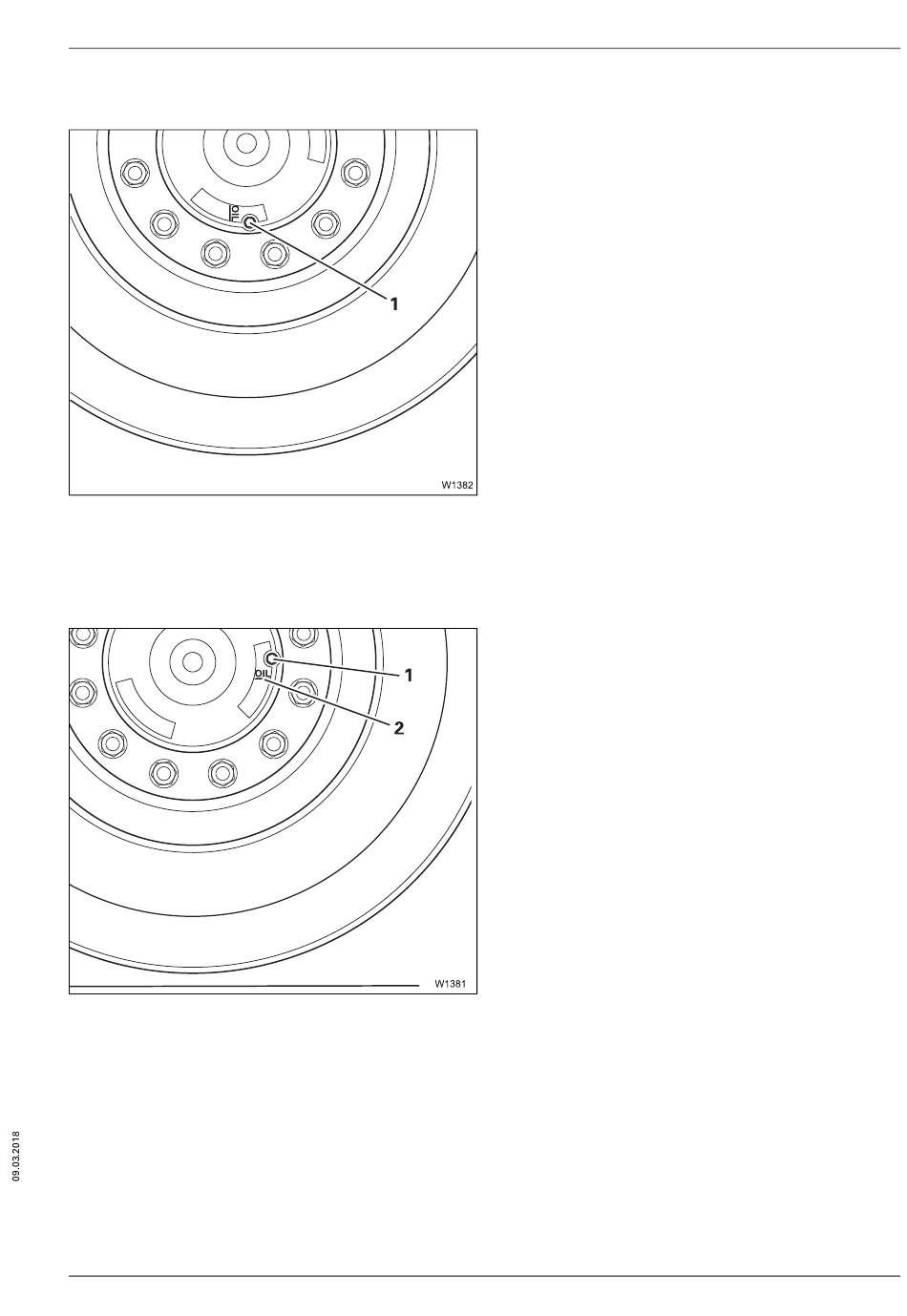

Turn the wheel until the screw (1) is at the
bottom.
•
Use a drain channel and place a receptacle
under the screw.
•
Remove the screw and let the oil drain out.
•
Turn the wheel until the mark (2) is horizon-
tal and is on the right, next to the centre of
the axle.
•
Top up the oil through the opening.
•
Fit a new gasket and tighten the drain
screw (1).
