Maintenance work on the carrier

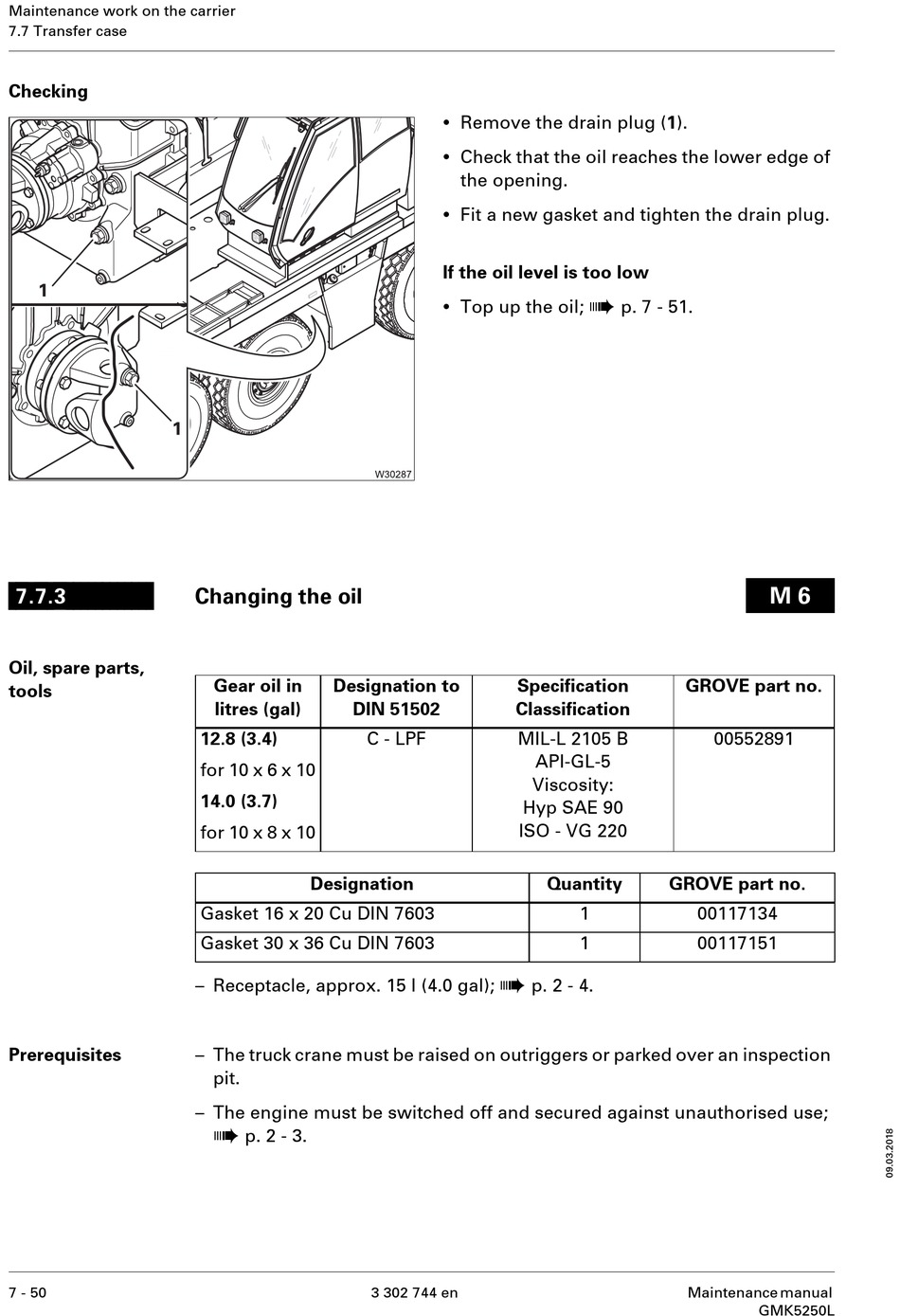

7.7 Transfer case
Checking
7.7.3
Oil, spare parts,
tools
Prerequisites
7 - 50

Changing the oil

Gear oil in Designation to
litres (gal) DIN 51502
12.8 (3.4)
for 10 x 6 x 10
14.0 (3.7)
for 10 x 8 x 10
Designation
Gasket 16 x 20 Cu DIN 7603
Gasket 30 x 36 Cu DIN 7603
– Receptacle, approx. 15 l (4.0 gal);
– The truck crane must be raised on outriggers or parked over an inspection
pit.
– The engine must be switched off and secured against unauthorised use;
à
p. 2 - 3.
•
Remove the drain plug (1).
•
Check that the oil reaches the lower edge of
the opening.
•
Fit a new gasket and tighten the drain plug.
If the oil level is too low
•
Top up the oil;
Specification
Classification
C - LPF MIL-L 2105 B
API-GL-5
Viscosity:
Hyp SAE 90
ISO - VG 220
à
p. 2 - 4.
3 302 744 en
à
p. 7 - 51.
GROVE part no.
00552891
Quantity GROVE part no.
1 00117134
1 00117151
Maintenance manual
M 6
GMK5250L
