7.4
Maintenance manual
GMK5250L

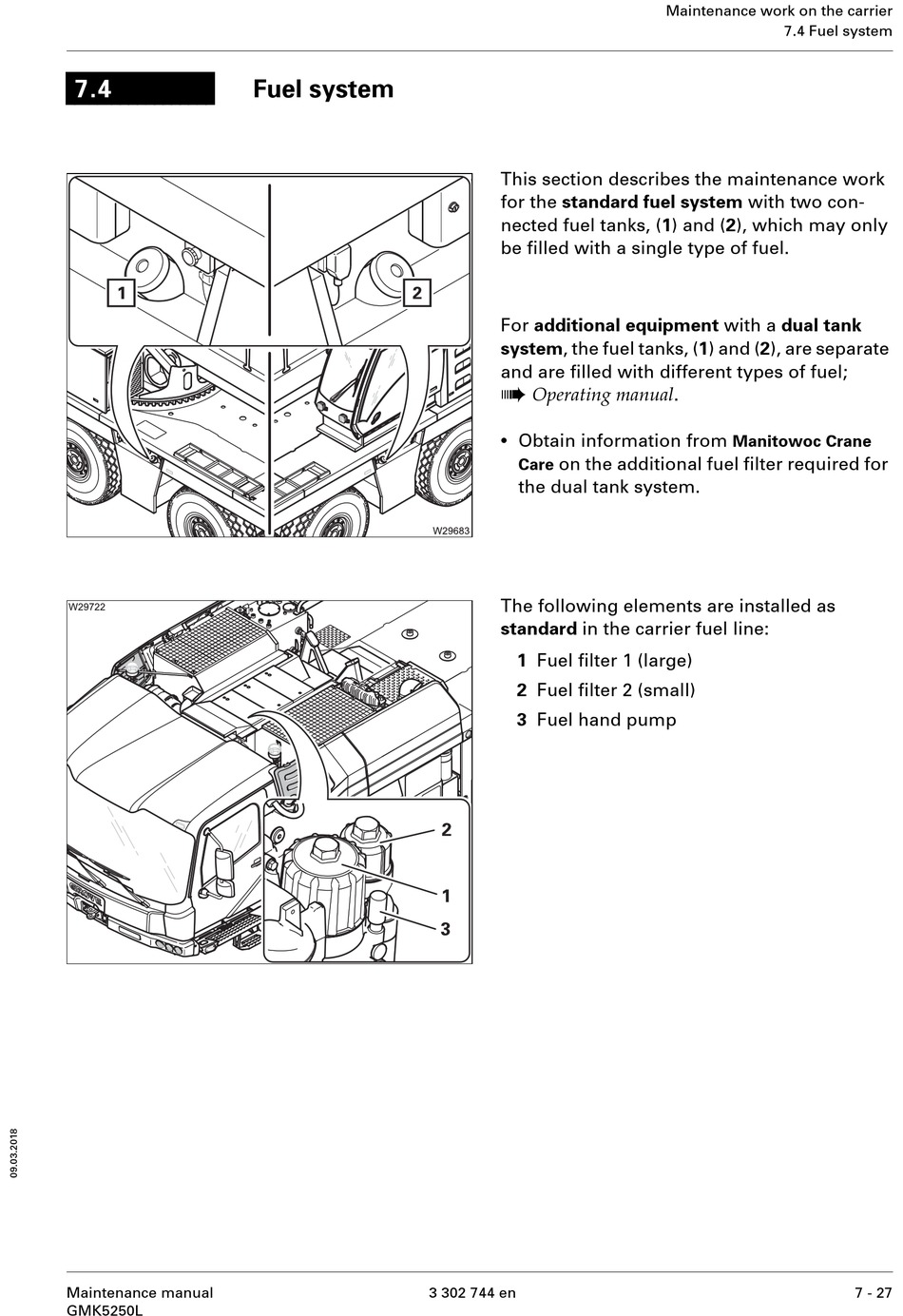

Fuel system

This section describes the maintenance work
for the standard fuel system with two con-
nected fuel tanks, (1) and (2), which may only
be filled with a single type of fuel.
For additional equipment with a dual tank
system, the fuel tanks, (1) and (2), are separate
and are filled with different types of fuel;
à
Operating manual .
•
Obtain information from
on the additional fuel filter required for
Care
the dual tank system.
The following elements are installed as
standard in the carrier fuel line:
1 Fuel filter 1 (large)
2 Fuel filter 2 (small)
3 Fuel hand pump
3 302 744 en
Maintenance work on the carrier
7.4 Fuel system
Manitowoc Crane
7 - 27
