7.9.7
H
Grease, spare
parts, tools
Prerequisites
Greasing
Maintenance manual
GMK5250L

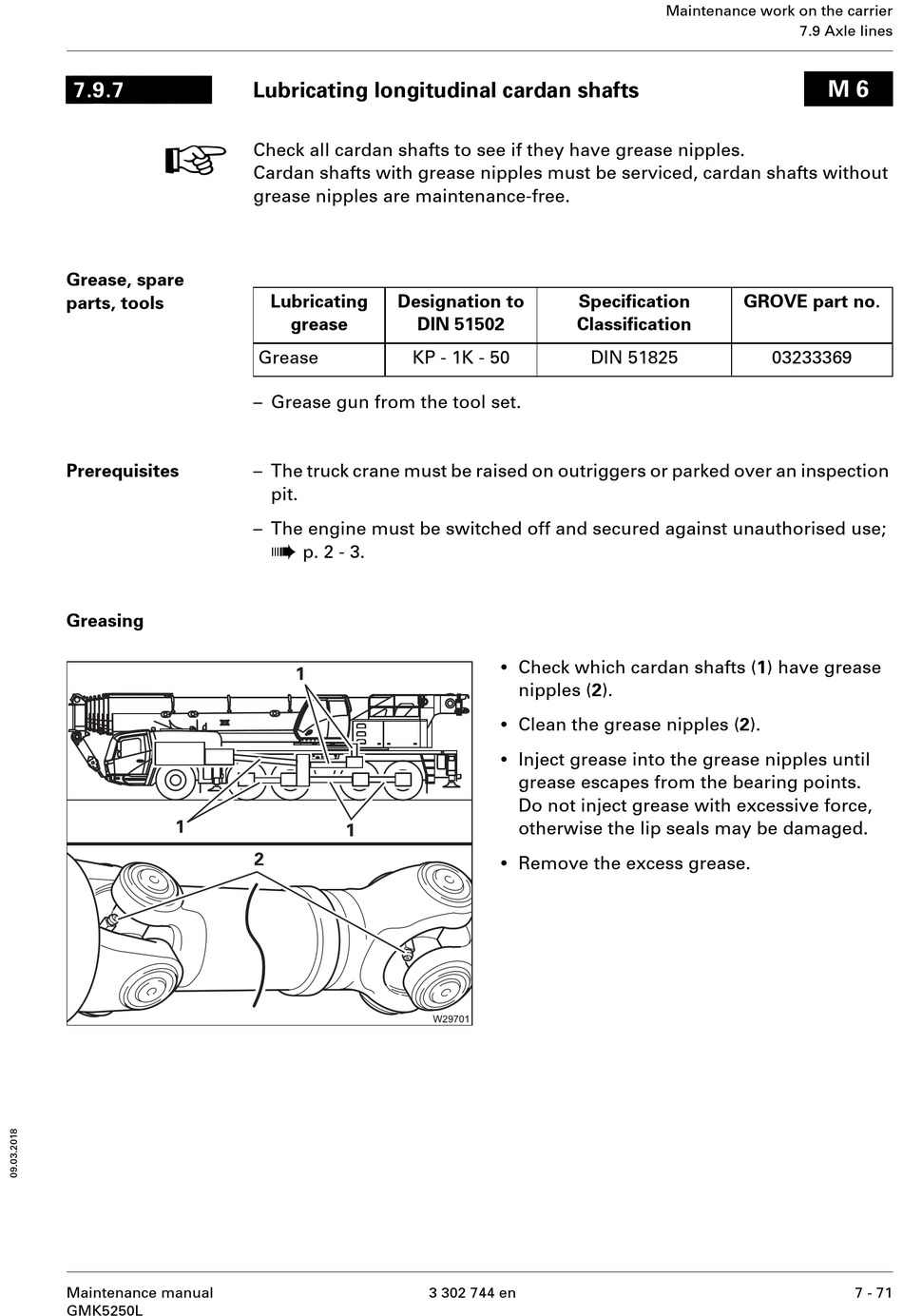

Lubricating longitudinal cardan shafts

Check all cardan shafts to see if they have grease nipples.
Cardan shafts with grease nipples must be serviced, cardan shafts without
grease nipples are maintenance-free.
Lubricating Designation to
grease DIN 51502
Grease KP - 1K - 50
– Grease gun from the tool set.
– The truck crane must be raised on outriggers or parked over an inspection
pit.
– The engine must be switched off and secured against unauthorised use;
à
p. 2 - 3.
Specification
Classification
DIN 51825
•
Check which cardan shafts (1) have grease
nipples (2).
•
Clean the grease nipples (2).
•
Inject grease into the grease nipples until
grease escapes from the bearing points.
Do not inject grease with excessive force,
otherwise the lip seals may be damaged.
•
Remove the excess grease.
3 302 744 en
Maintenance work on the carrier
7.9 Axle lines
M 6
GROVE part no.
03233369
7 - 71
