7.14.3
Spare parts and
tools
Prerequisites
Changing the filter
cartridge
G
Maintenance manual
GMK5250L

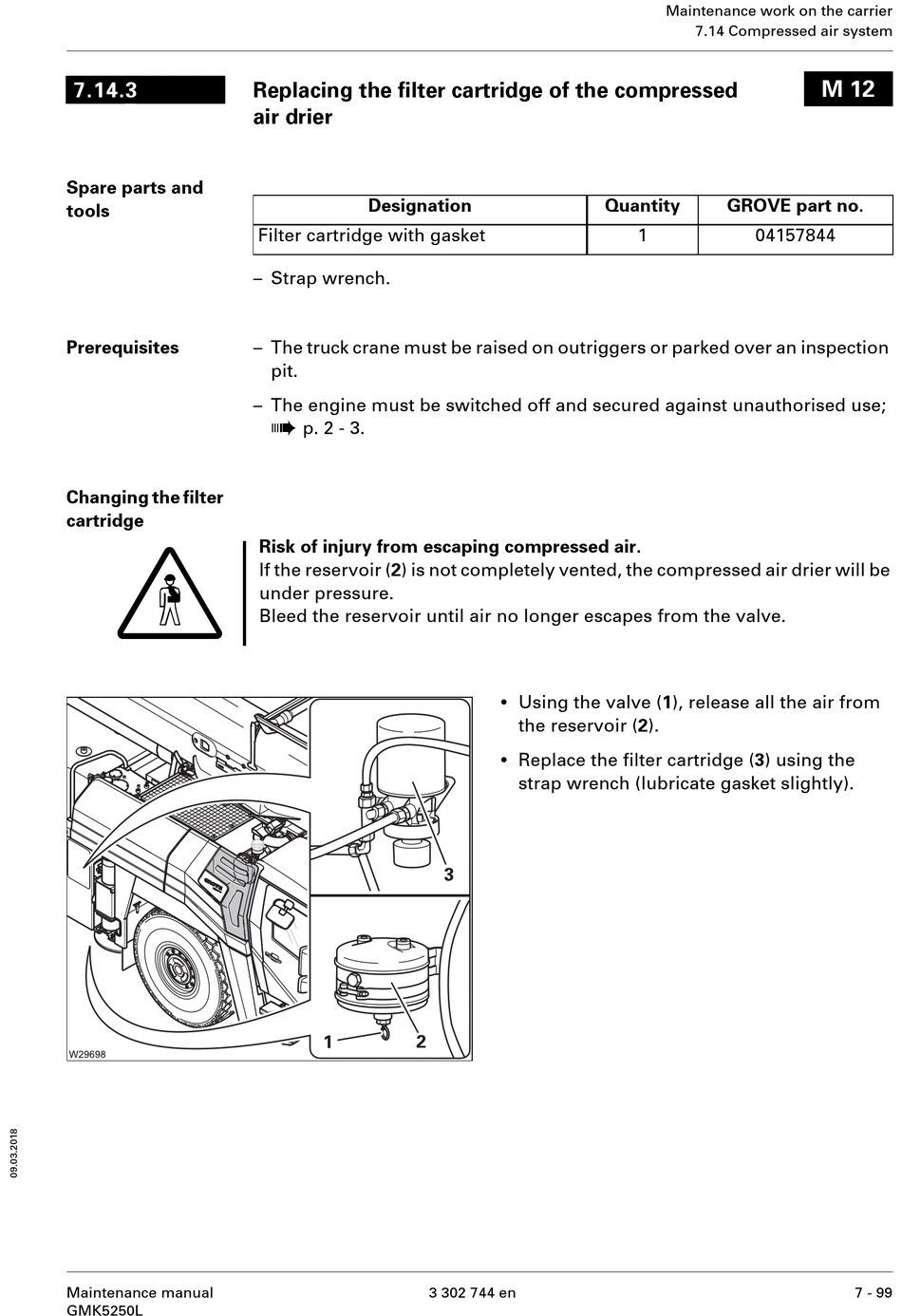

Replacing the filter cartridge of the compressed
air drier
Designation
Filter cartridge with gasket
– Strap wrench.
– The truck crane must be raised on outriggers or parked over an inspection
pit.
– The engine must be switched off and secured against unauthorised use;
à
p. 2 - 3.
Risk of injury from escaping compressed air.
If the reservoir (2) is not completely vented, the compressed air drier will be
under pressure.
Bleed the reservoir until air no longer escapes from the valve.
•
Using the valve (1), release all the air from
the reservoir (2).
•
Replace the filter cartridge (3) using the
strap wrench (lubricate gasket slightly).
3 302 744 en
Maintenance work on the carrier
7.14 Compressed air system
Quantity GROVE part no.
1 04157844
M 12
7 - 99
