7.2
CCS
Maintenance
submenu
Maintenance manual
GMK5250L

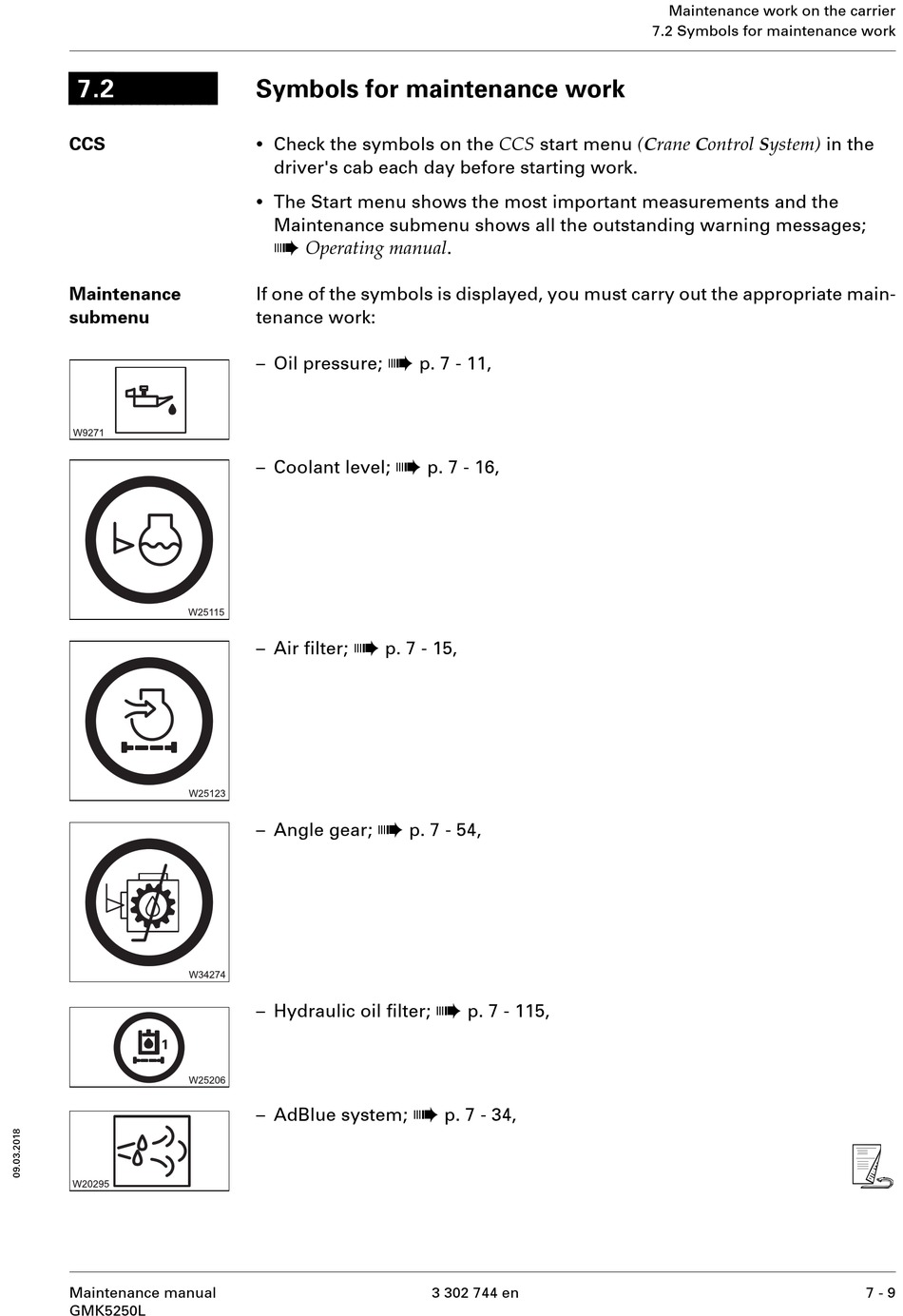

Symbols for maintenance work

•
Check the symbols on the CCS start menu (Crane Control System) in the
driver's cab each day before starting work.
•
The Start menu shows the most important measurements and the
Maintenance submenu shows all the outstanding warning messages;
à
Operating manual .
If one of the symbols is displayed, you must carry out the appropriate main-
tenance work:
à
– Oil pressure; p. 7 - 11,
à
– Coolant level;
à
– Air filter; p. 7 - 15,
à
– Angle gear; p. 7 - 54,
– Hydraulic oil filter;
à
– AdBlue system;
p. 7 - 16,
à
p. 7 - 115,
p. 7 - 34,
3 302 744 en
Maintenance work on the carrier
7.2 Symbols for maintenance work
s
7 - 9
