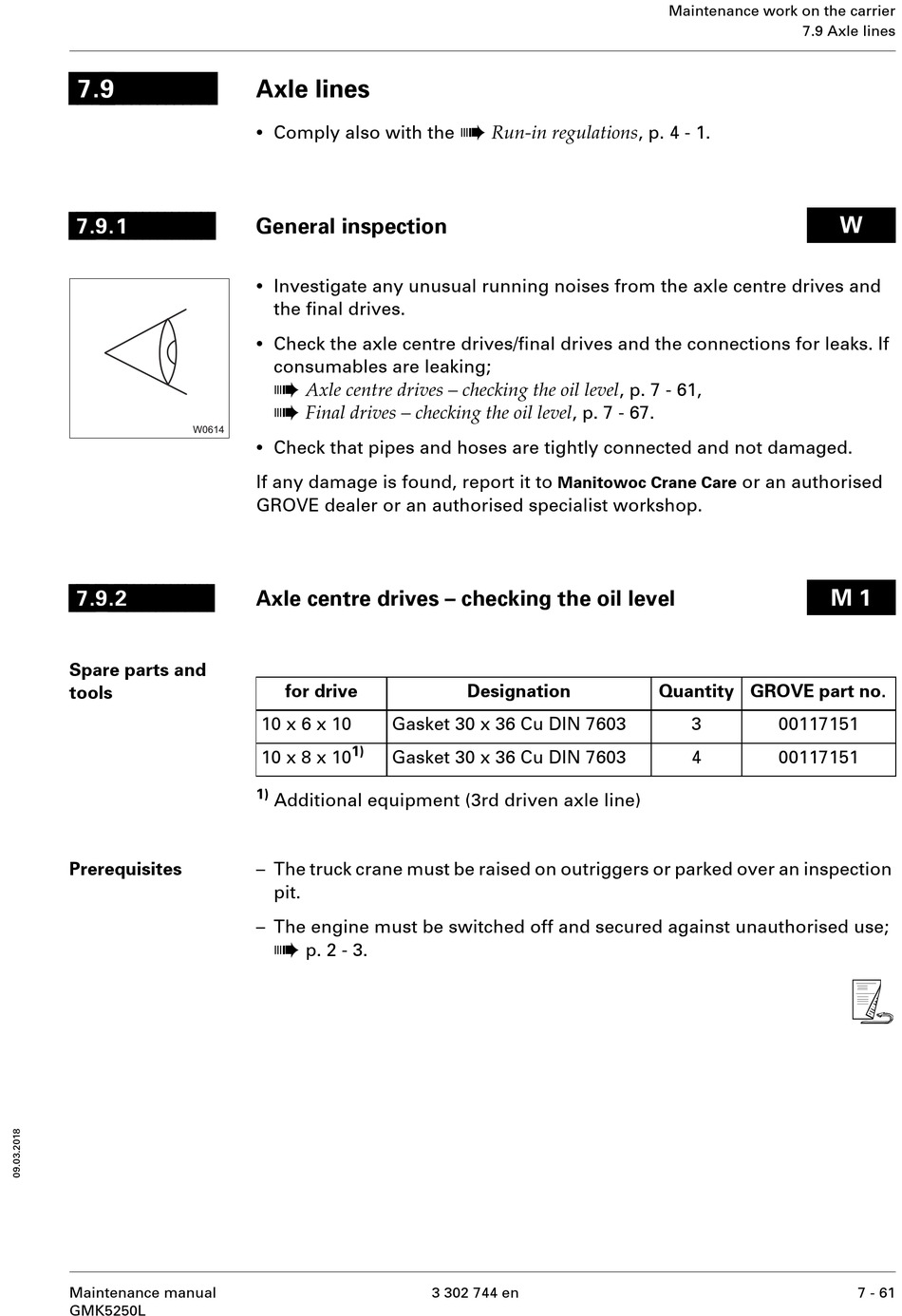

Axle Lines; General Inspection; Axle Centre Drives - Checking The Oil Level - Manitowoc Grove GMK 5250L Maintenance Manual

7.9
7.9.1
7.9.2
Spare parts and
tools
Prerequisites
Maintenance manual
GMK5250L

Axle lines

•
Comply also with the

General inspection

•
Investigate any unusual running noises from the axle centre drives and
the final drives.
•
Check the axle centre drives/final drives and the connections for leaks. If
consumables are leaking;
à
Axle centre drives – checking the oil level , p. 7 - 61,
à
Final drives – checking the oil level , p. 7 - 67.
•
Check that pipes and hoses are tightly connected and not damaged.
If any damage is found, report it to
GROVE dealer or an authorised specialist workshop.
Axle centre drives – checking the oil level
for drive
10 x 6 x 10 Gasket 30 x 36 Cu DIN 7603
1)
10 x 8 x 10 Gasket 30 x 36 Cu DIN 7603
1)
Additional equipment (3rd driven axle line)
– The truck crane must be raised on outriggers or parked over an inspection
pit.
– The engine must be switched off and secured against unauthorised use;
à
p. 2 - 3.
à
Run-in regulations , p. 4 - 1.
