Checking The Cotter Pin - Manitowoc Grove GMK 5250L Maintenance Manual

Maintenance work on the carrier
7.19 Towbar coupling
7.19.3
Prerequisites
Checking the
cotter pin
7 - 138

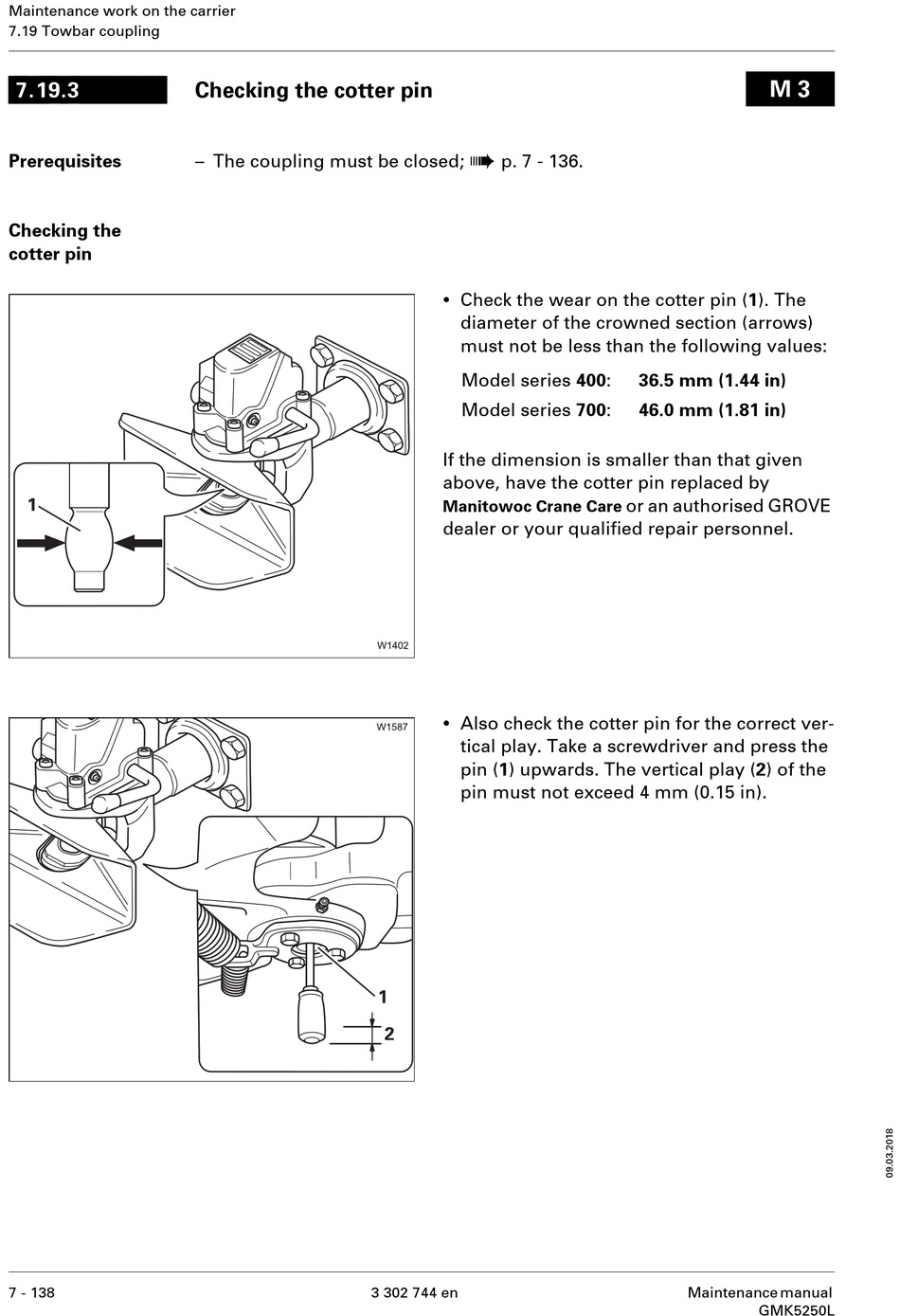

Checking the cotter pin

– The coupling must be closed;
à
p. 7 - 136.
•
Check the wear on the cotter pin (1). The
diameter of the crowned section (arrows)
must not be less than the following values:
Model series 400:
Model series 700:
If the dimension is smaller than that given
above, have the cotter pin replaced by
Manitowoc Crane Care
dealer or your qualified repair personnel.
•
Also check the cotter pin for the correct ver-
tical play. Take a screwdriver and press the
pin (1) upwards. The vertical play (2) of the
pin must not exceed 4 mm (0.15 in).
3 302 744 en
M 3
36.5 mm (1.44 in)
46.0 mm (1.81 in)
or an authorised GROVE
Maintenance manual
GMK5250L
