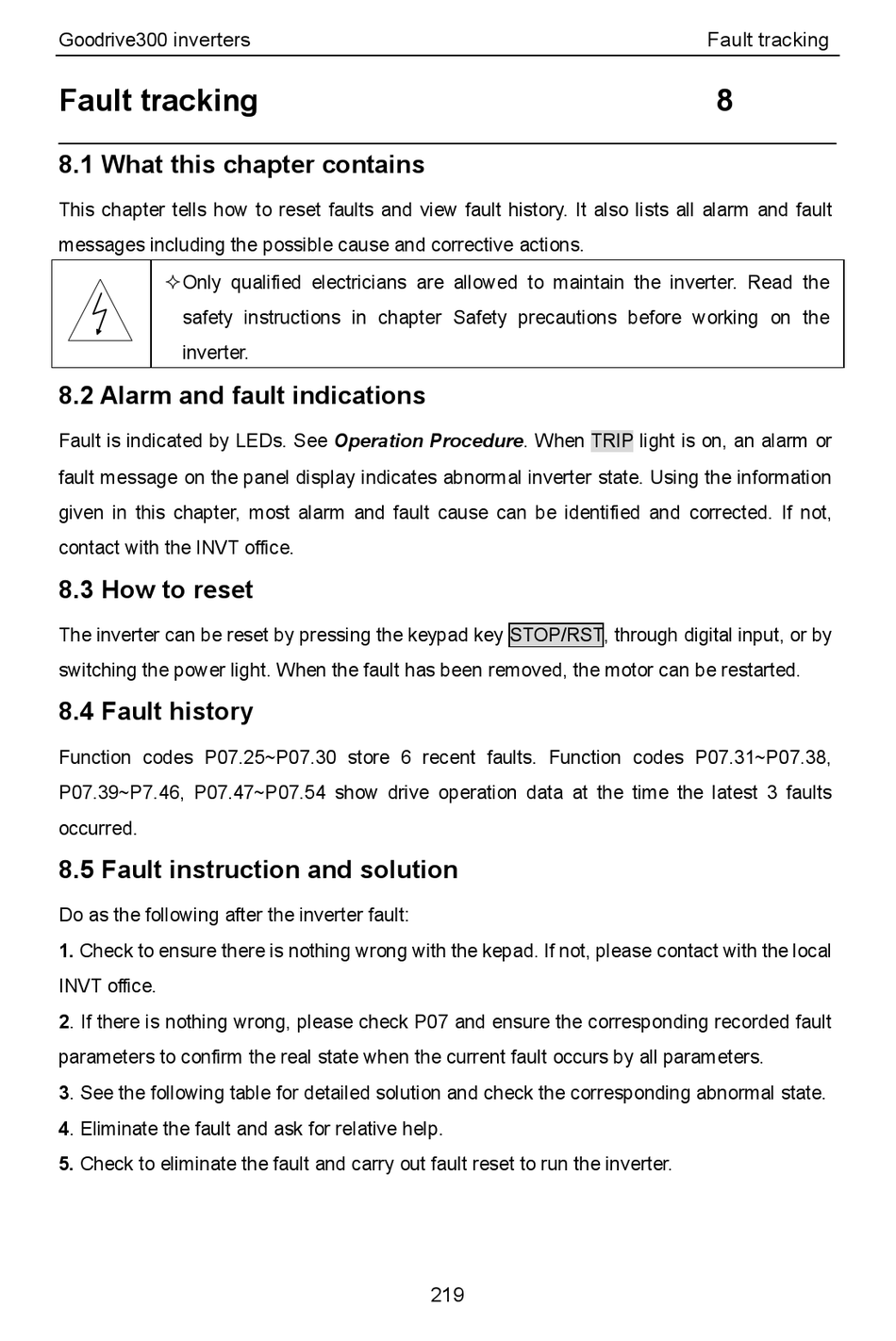

Fault tracking

8.1 What this chapter contains

This chapter tells how to reset faults and view fault history. It also lists all alarm and fault
messages including the possible cause and corrective actions.
 Only qualified electricians are allowed to maintain the inverter. Read the
safety instructions in chapter Safety precautions before working on the
inverter.

8.2 Alarm and fault indications

Fault is indicated by LEDs. See Operation Procedure. When TRIP light is on, an alarm or
fault message on the panel display indicates abnormal inverter state. Using the information
given in this chapter, most alarm and fault cause can be identified and corrected. If not,
contact with the INVT office.

8.3 How to reset

The inverter can be reset by pressing the keypad key STOP/RST, through digital input, or by
switching the power light. When the fault has been removed, the motor can be restarted.

8.4 Fault history

Function codes P07.25~P07.30 store 6 recent faults. Function codes P07.31~P07.38,
P07.39~P7.46, P07.47~P07.54 show drive operation data at the time the latest 3 faults
occurred.

8.5 Fault instruction and solution

Do as the following after the inverter fault:
1. Check to ensure there is nothing wrong with the kepad. If not, please contact with the local
INVT office.
2. If there is nothing wrong, please check P07 and ensure the corresponding recorded fault
parameters to confirm the real state when the current fault occurs by all parameters.
3. See the following table for detailed solution and check the corresponding abnormal state.
4. Eliminate the fault and ask for relative help.
5. Check to eliminate the fault and carry out fault reset to run the inverter.
