1. Introduction

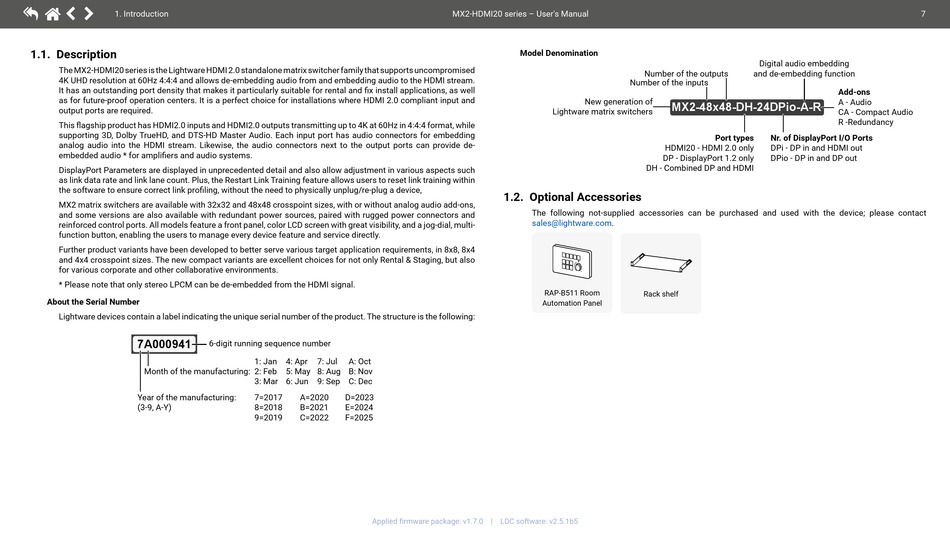

1.1. Description
The MX2-HDMI20 series is the Lightware HDMI 2.0 standalone matrix switcher family that supports uncompromised
4K UHD resolution at 60Hz 4:4:4 and allows de-embedding audio from and embedding audio to the HDMI stream.
It has an outstanding port density that makes it particularly suitable for rental and fix install applications, as well
as for future-proof operation centers. It is a perfect choice for installations where HDMI 2.0 compliant input and
output ports are required.
This flagship product has HDMI2.0 inputs and HDMI2.0 outputs transmitting up to 4K at 60Hz in 4:4:4 format, while
supporting 3D, Dolby TrueHD, and DTS-HD Master Audio. Each input port has audio connectors for embedding
analog audio into the HDMI stream. Likewise, the audio connectors next to the output ports can provide de-
embedded audio * for amplifiers and audio systems.
DisplayPort Parameters are displayed in unprecedented detail and also allow adjustment in various aspects such
as link data rate and link lane count. Plus, the Restart Link Training feature allows users to reset link training within
the software to ensure correct link profiling, without the need to physically unplug/re-plug a device,
MX2 matrix switchers are available with 32x32 and 48x48 crosspoint sizes, with or without analog audio add-ons,
and some versions are also available with redundant power sources, paired with rugged power connectors and
reinforced control ports. All models feature a front panel, color LCD screen with great visibility, and a jog-dial, multi-
function button, enabling the users to manage every device feature and service directly.
Further product variants have been developed to better serve various target application requirements, in 8x8, 8x4
and 4x4 crosspoint sizes. The new compact variants are excellent choices for not only Rental & Staging, but also
for various corporate and other collaborative environments.
* Please note that only stereo LPCM can be de-embedded from the HDMI signal.
About the Serial Number
Lightware devices contain a label indicating the unique serial number of the product. The structure is the following:
7A000941
Month of the manufacturing:
Year of the manufacturing:
(3-9, A-Y)
6-digit running sequence number
1: Jan 4: Apr 7: Jul A: Oct
2: Feb 5: May 8: Aug B: Nov
3: Mar 6: Jun 9: Sep C: Dec
7=2017 A=2020 D=2023
8=2018 B=2021 E=2024
9=2019 C=2022 F=2025
Applied firmware package: v1.7.0 | LDC software: v2.5.1b5
MX2-HDMI20 series – User's Manual
Model Denomination
Number of the inputs
New generation of
Lightware matrix switchers
1.2. Optional Accessories
The following not-supplied accessories can be purchased and used with the device; please contact
sales@lightware.com.
RAP-B511 Room
Automation Panel
Digital audio embedding
Number of the outputs and de-embedding function
MX2-48x48-DH-24DPio-A-R
Port types Nr. of DisplayPort I/O Ports
HDMI20 - HDMI 2.0 only DPi - DP in and HDMI out
DP - DisplayPort 1.2 only DPio - DP in and DP out
DH - Combined DP and HDMI
Rack shelf
7
Add-ons
A - Audio
CA - Compact Audio
R -Redundancy
