1. Introduction
1.1. Description
MMX4x2 series device is a unique mini size matrix switcher. The HT200 model has three HDMI inputs and
one HDBaseT compatible TPS input port. It has two independent HDMI outputs. The HDMI model has four
TM
HDMI inputs and two independent HDMI outputs. Audio can be de-embedded from the HDMI signal to a
balanced 5-pole Phoenix (Euroblock) port, and external audio signal can be embedded into the HDMI stream
from another 5-pole Phoenix input port. The volume and gain properties of the audio signal can be modified
at both input and output. The unit is fully 4K/UHD/3D capable and HDCP compliant. The device has a built-in
Event Manager tool, configurable via the Lightware Device Controller software. Further control options are
served by the USB, RS-232, IR (in and out) and Ethernet ports.
MMX4x2-HDMI-USB20-L Model
The model has four HDMI inputs and two independent HDMI outputs, as well as a USB 2.0 layer that provides
the switching of four external USB peripherals (USB devices such as webcamera, speakerphone, multitouch
display, etc.) to four independent host computers or laptops.
Unique USB functions allow seamless integration in Unified Communication
and small Video Conference rooms. The USB 'Host5vSense' function makes
the device to recognize if a USB cable is connected, and it triggers a condition
as set in the Event Manager. For example, the last connected USB laptop can be
selected as an input automatically. The 'Device5vEnable' means turning the 5V
supply for USB peripherals ON or OFF.
HDMI connectors are 4K capable, HDCP compliant, and additional control options are served by the USB,
RS-232, IR (in and out), Ethernet and GPIO ports.
Model Denomination
4 inputs and 2 outputs
MMX4x2-HDMI-USB20-L
Multimedia matrix
About the Serial Number
Lightware devices contain a label indicating the unique serial number of the product. The structure is the
following:
7A000941
Month of the manufacturing:
Year of the manufacturing:
(3-9, A-Y)
With USB 2.0 interface
Large enclosure
HDMI: model with HDMI-type I/O ports
HT200: model with one TPS input
6-digit running sequence number
1: Jan 4: Apr 7: Jul A: Oct
2: Feb 5: May 8: Aug B: Nov
3: Mar 6: Jun 9: Sep C: Dec
7=2017 A=2020 D=2023
8=2018 B=2021 E=2024
9=2019 C=2022 F=2025
Applied firmware package: v1.6.0b19 | LDC software: v2.5.13b5
MMX4x2 series – User's Manual
1.2. Compatible Devices
The MMX4x2-HT200 matrix is compatible with other Lightware TPS transmitters, matrix TPS and TPS2
boards, 25G TPS2 boards, as well as third-party HDBaseT-extenders, displays, but not compatible with the
phased out TPS-90 extenders.
HDBaseT and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.
TM

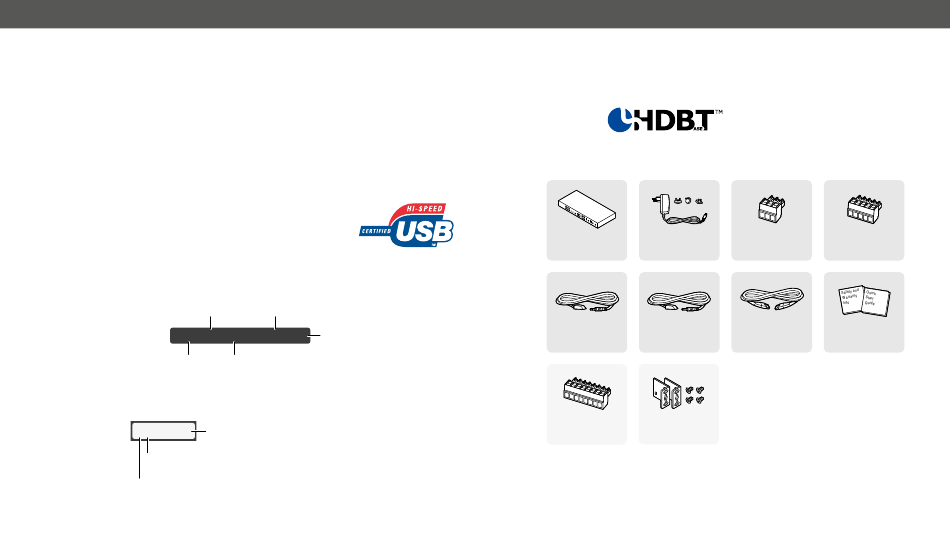

1.3. Box Contents
MMX4x2 series
matrix
Infrared emitter unit
Phoenix Combicon
®
2
8-pole connector
Supplied with MMX4x2-HDMI-USB20-L model only.
1
Two pieces are supplied with MMX4x2-HDMI-USB20-L model.
2
The MMX4x2-HT200 matrix is
compatible with any third-party
HDBaseT TM device.
12V DC adaptor with Phoenix Combicon
®
interchangeable plugs 3-pole connector
1
Infrared detector unit UTP patch cable
(3 m)
Rack ears (2x) with
2
M4x8 screws (4x)
9
Phoenix Combicon
®
5-pole connector (2x)
Safety & warranty info,
Quick Start Guide
