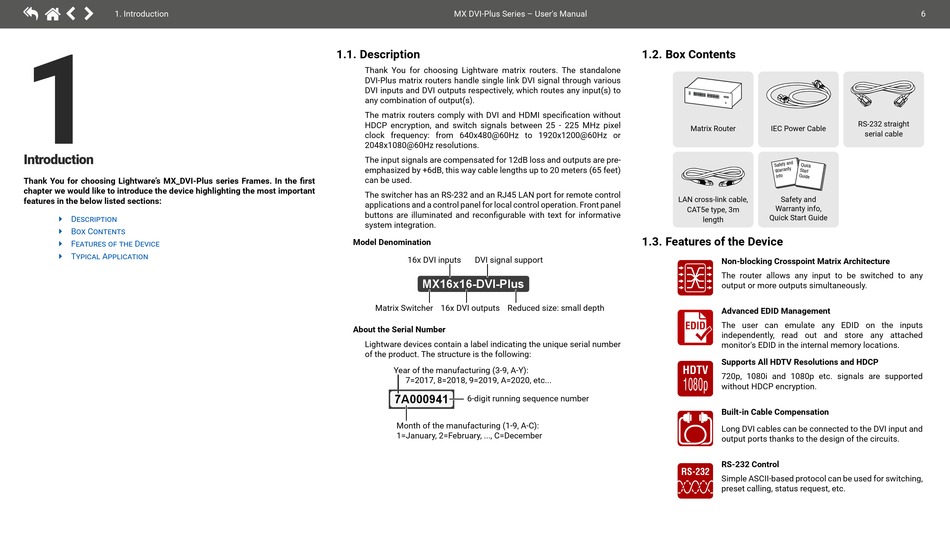

1. Introduction

1
I ntroduction
Thank You for choosing Lightware's MX_DVI-Plus series Frames. In the first
chapter we would like to introduce the device highlighting the most important
features in the below listed sections:

Description

Ý

Box Contents

Ý

Features of the Device

Ý
Typical Application
Ý
MX DVI-Plus Series – User's Manual
1.1. Description
Thank You for choosing Lightware matrix routers. The standalone
DVI-Plus matrix routers handle single link DVI signal through various
DVI inputs and DVI outputs respectively, which routes any input(s) to
any combination of output(s).
The matrix routers comply with DVI and HDMI specification without
HDCP encryption, and switch signals between 25 - 225 MHz pixel
clock frequency: from 640x480@60Hz to 1920x1200@60Hz or
2048x1080@60Hz resolutions.
The input signals are compensated for 12dB loss and outputs are pre-
emphasized by +6dB, this way cable lengths up to 20 meters (65 feet)
can be used.
The switcher has an RS-232 and an RJ45 LAN port for remote control
applications and a control panel for local control operation. Front panel
buttons are illuminated and reconfigurable with text for informative
system integration.
Model Denomination
16x DVI inputs DVI signal support
MX16x16-DVI-Plus
Matrix Switcher 16x DVI outputs Reduced size: small depth
About the Serial Number
Lightware devices contain a label indicating the unique serial number
of the product. The structure is the following:
Year of the manufacturing (3-9, A-Y):
7=2017, 8=2018, 9=2019, A=2020, etc...
7A000941
6-digit running sequence number
Month of the manufacturing (1-9, A-C):
1=January, 2=February, ..., C=December
1.2. Box Contents
Matrix Router IEC Power Cable
LAN cross-link cable, Safety and
Warranty info,
CAT5e type, 3m
Quick Start Guide
length
1.3. Features of the Device
Non-blocking Crosspoint Matrix Architecture
The router allows any input to be switched to any
output or more outputs simultaneously.
Advanced EDID Management
The user can emulate any EDID on the inputs
independently, read out and store any attached
monitor's EDID in the internal memory locations.
Supports All HDTV Resolutions and HDCP
HDTV
720p, 1080i and 1080p etc. signals are supported
1080p
without HDCP encryption.
Built-in Cable Compensation
Long DVI cables can be connected to the DVI input and
output ports thanks to the design of the circuits.
RS-232 Control
RS-232
Simple ASCII-based protocol can be used for switching,
preset calling, status request, etc.
6
RS-232 straight
serial cable
