7. Software Control - Lightware Device Controller
7.4. Crosspoint Menu
7.4.1. Video Layer
5
6
7
8

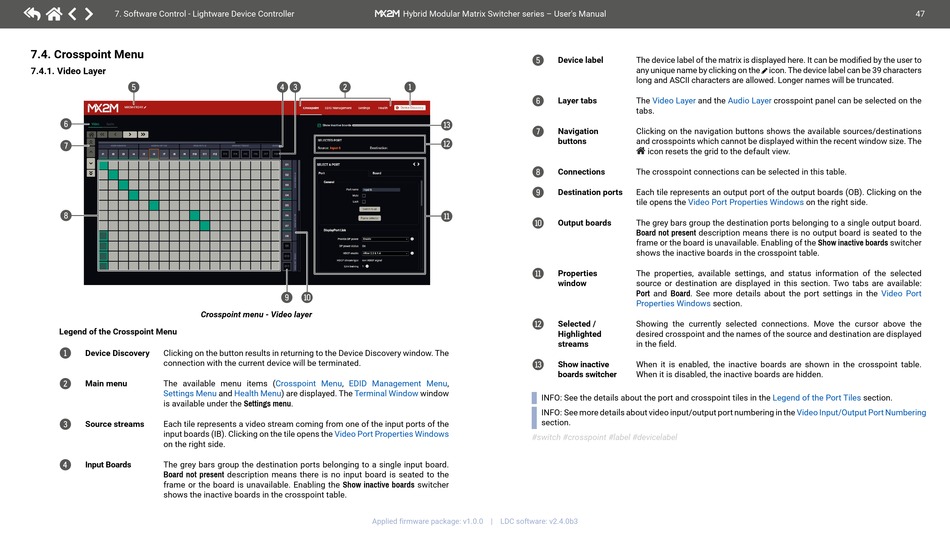

Crosspoint menu - Video layer
Legend of the Crosspoint Menu
1 Device Discovery Clicking on the button results in returning to the Device Discovery window. The
connection with the current device will be terminated.
Main menu The available menu items
2
Settings Menu
is available under the Settings menu.
3 Source streams Each tile represents a video stream coming from one of the input ports of the
input boards (IB). Clicking on the tile opens the
on the right side.
Input Boards The grey bars group the destination ports belonging to a single input board.
4
Board not present description means there is no input board is seated to the
frame or the board is unavailable. Enabling the Show inactive boards switcher
shows the inactive boards in the crosspoint table.
43 2
9 q
(Crosspoint Menu, EDID Management
and Health Menu) are displayed. The Terminal Window
Video Port Properties Windows
Applied firmware package: v1.0.0 | LDC software: v2.4.0b3
Hybrid Modular Matrix Switcher series – User's Manual
5 Device label
1
Layer tabs
6
r
7 Navigation
buttons
e
Connections
8
9 Destination ports
w
Output boards
q
w Properties
window
e Selected /
Highlighted
streams
r Show inactive
boards switcher
Menu,
window
INFO:
See the details about the port and crosspoint tiles in the

INFO: See more details about video input/output port numbering in the
section.
#switch #crosspoint #label #devicelabel
The device label of the matrix is displayed here. It can be modified by the user to
any unique name by clicking on the icon. The device label can be 39 characters

long and ASCII characters are allowed. Longer names will be truncated.
The

Video Layer

and the Audio Layer crosspoint panel can be selected on the
tabs.
Clicking on the navigation buttons shows the available sources/destinations
and crosspoints which cannot be displayed within the recent window size. The
 icon resets the grid to the default view.
The crosspoint connections can be selected in this table.
Each tile represents an output port of the output boards (OB). Clicking on the
tile opens the Video Port Properties Windows on the right side.
The grey bars group the destination ports belonging to a single output board.
Board not present description means there is no output board is seated to the
frame or the board is unavailable. Enabling of the Show inactive boards switcher
shows the inactive boards in the crosspoint table.
The properties, available settings, and status information of the selected
source or destination are displayed in this section. Two tabs are available:
Port and Board. See more details about the port settings in the
Properties Windows section.
Showing the currently selected connections. Move the cursor above the
desired crosspoint and the names of the source and destination are displayed
in the field.
When it is enabled, the inactive boards are shown in the crosspoint table.
When it is disabled, the inactive boards are hidden.
Legend of the Port Tiles
Video Input/Output Port Numbering
47
Video Port
section.
