Connecting Steps - Lightware MMX6x2-HT200 User Manual


  
2. Installation

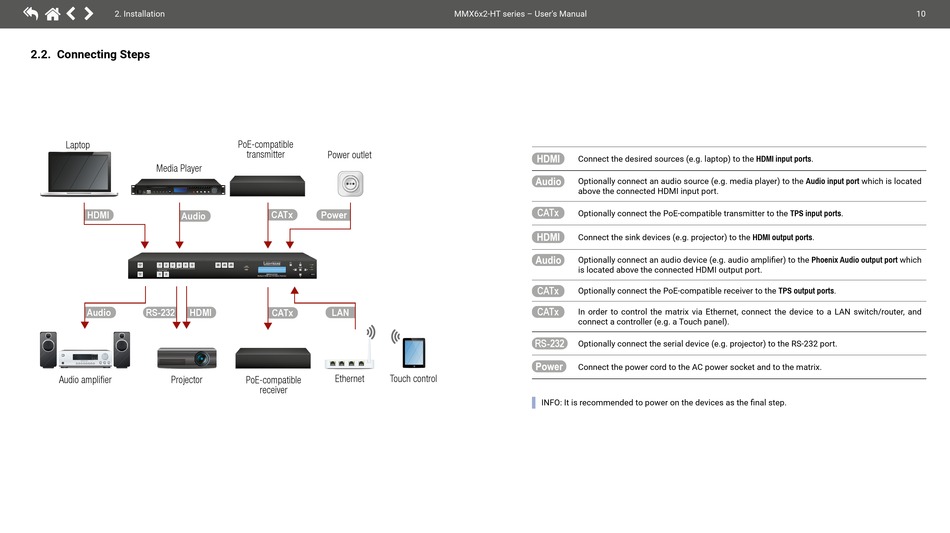

2.2. Connecting Steps
Laptop
Media Player
HDMI
Audio
C C O O N N T T R R O O L L 1 2 3 4 5 6
L L O O C C K K
SOURCES
DESTINATIONS
1 2
O O U U T T P P U U T T
L L O O C C K K
Audio RS-232 HDMI
Projector
Audio amplifier
PoE-compatible
transmitter
Power outlet
CATx Power
ESC
T T A A K K E E T T A A K K E E L L O O A A D D L L O O A A D D S S A A V V E E S S A A V V E E
LIVE
A A U U T T O O A A U U T T O O P P R R E E S S E E T T P P R R E E S S E E T T P P R R E E S S E E T T P P R R E E S S E E T T USB
CONTROL ENTER 5V
48V
MMX6x2-HT220 RESET
Multiport HDMI and TPS Matrix Switcher
LAN
CATx
Ethernet Touch control
PoE-compatible
receiver
MMX6x2-HT series – User's Manual
Connect the desired sources (e.g. laptop) to the HDMI input ports.
Optionally connect an audio source (e.g. media player) to the Audio input port which is located
above the connected HDMI input port.
CATx
Optionally connect the PoE-compatible transmitter to the TPS input ports.
Connect the sink devices (e.g. projector) to the HDMI output ports.
Optionally connect an audio device (e.g. audio amplifier) to the Phoenix Audio output port which
is located above the connected HDMI output port.
CATx
Optionally connect the PoE-compatible receiver to the TPS output ports.
CATx
In order to control the matrix via Ethernet, connect the device to a LAN switch/router, and
connect a controller (e.g. a Touch panel).
RS-232
Optionally connect the serial device (e.g. projector) to the RS-232 port.
Connect the power cord to the AC power socket and to the matrix.
INFO: It is recommended to power on the devices as the final step.
10
