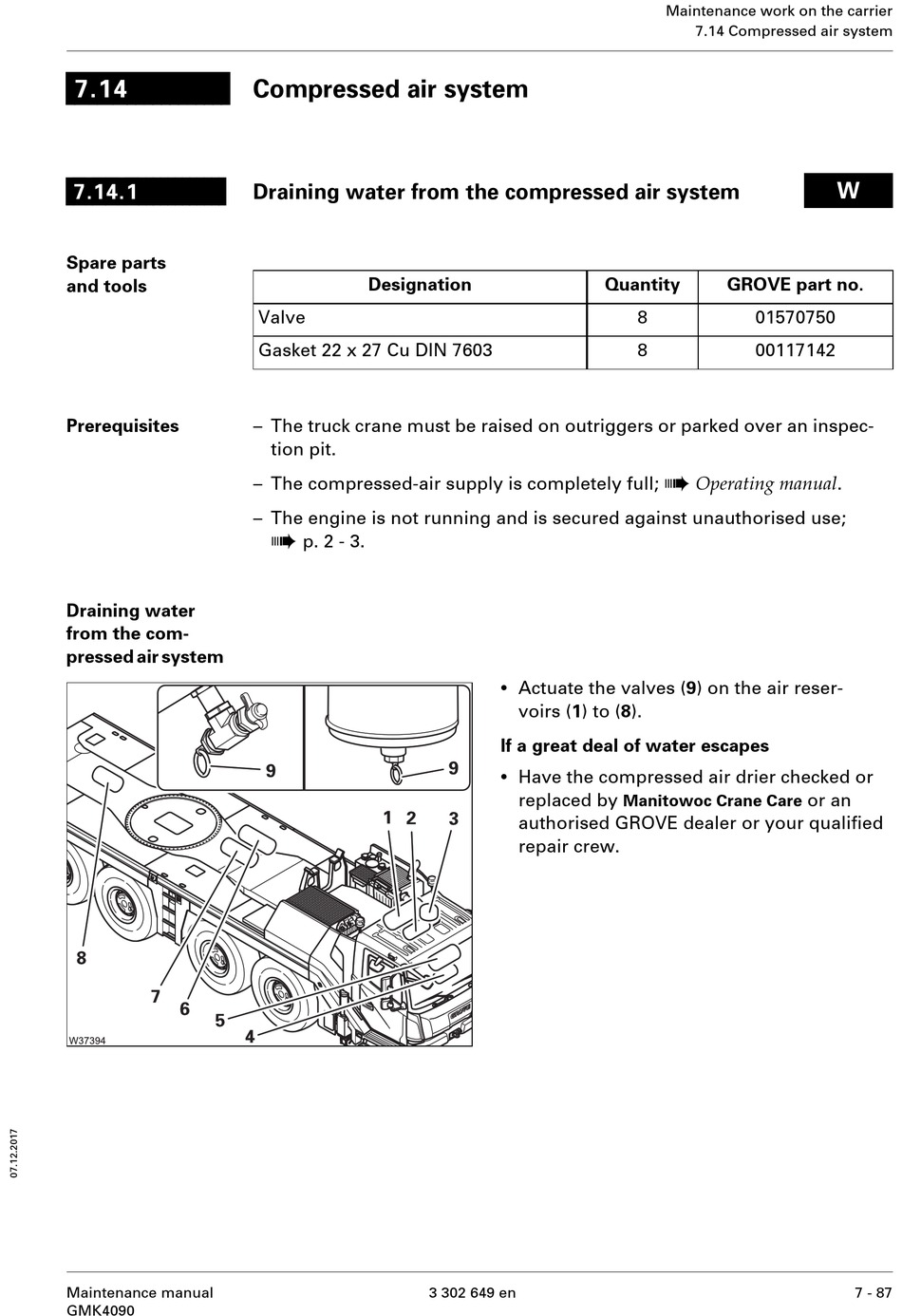

7.14
7.14.1
Spare parts
and tools
Prerequisites
Draining water
from the com-
pressed air system
Maintenance manual
GMK4090

Compressed air system

Draining water from the compressed air system

Designation
Valve
Gasket 22 x 27 Cu DIN 7603
– The truck crane must be raised on outriggers or parked over an inspec-
tion pit.
– The compressed-air supply is completely full;
– The engine is not running and is secured against unauthorised use;
à
p. 2 - 3.
•
Actuate the valves (9) on the air reser-
voirs (1) to (8).
If a great deal of water escapes
•
Have the compressed air drier checked or
replaced by
authorised GROVE dealer or your qualified
repair crew.
3 302 649 en
Maintenance work on the carrier
7.14 Compressed air system
Quantity GROVE part no.
8 01570750
8 00117142
à
Operating manual .
Manitowoc Crane Care
W
or an
7 - 87
