Powering On The Smart Busway - Huawei FusionModule5000 Commissioning Manual

FusionModule5000 Smart Modular Data Center
Commissioning Guide

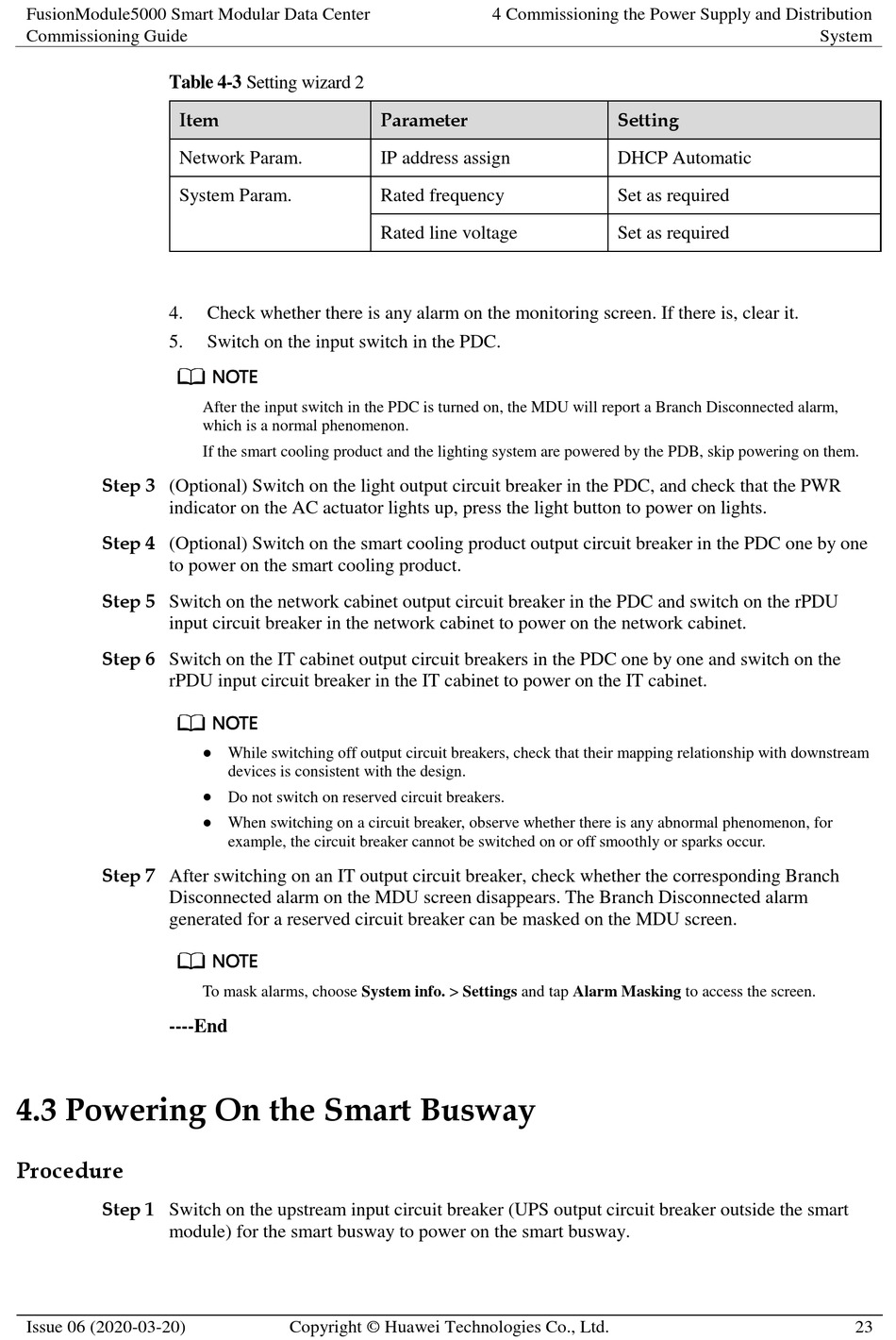

Table 4-3 Setting wizard 2
Item
Network Param.
System Param.
4.
5.
Step 3 (Optional) Switch on the light output circuit breaker in the PDC, and check that the PWR
indicator on the AC actuator lights up, press the light button to power on lights.
Step 4 (Optional) Switch on the smart cooling product output circuit breaker in the PDC one by one
to power on the smart cooling product.
Step 5 Switch on the network cabinet output circuit breaker in the PDC and switch on the rPDU
input circuit breaker in the network cabinet to power on the network cabinet.
Step 6 Switch on the IT cabinet output circuit breakers in the PDC one by one and switch on the
rPDU input circuit breaker in the IT cabinet to power on the IT cabinet.
Step 7 After switching on an IT output circuit breaker, check whether the corresponding Branch
Disconnected alarm on the MDU screen disappears. The Branch Disconnected alarm
generated for a reserved circuit breaker can be masked on the MDU screen.
----End

4.3 Powering On the Smart Busway

Procedure
Step 1 Switch on the upstream input circuit breaker (UPS output circuit breaker outside the smart
module) for the smart busway to power on the smart busway.
Issue 06 (2020-03-20)
Check whether there is any alarm on the monitoring screen. If there is, clear it.
Switch on the input switch in the PDC.
After the input switch in the PDC is turned on, the MDU will report a Branch Disconnected alarm,
which is a normal phenomenon.
If the smart cooling product and the lighting system are powered by the PDB, skip powering on them.
 While switching off output circuit breakers, check that their mapping relationship with downstream
devices is consistent with the design.
 Do not switch on reserved circuit breakers.
 When switching on a circuit breaker, observe whether there is any abnormal phenomenon, for
example, the circuit breaker cannot be switched on or off smoothly or sparks occur.
To mask alarms, choose System info. > Settings and tap Alarm Masking to access the screen.
Copyright © Huawei Technologies Co., Ltd.
4 Commissioning the Power Supply and Distribution
Parameter
IP address assign
Rated frequency
Rated line voltage
Setting
DHCP Automatic
Set as required
Set as required
System
23
