RETRIEVE 622 RING INTERFACE CARD (RIC) STATUS
Summary: This procedure defines the information retrieved from the shelf level GUI card status
display for the 622 RIC card. User must have the GUI launched and accessed the shelf level GUI
display per NTP-007 prior to performing this procedure.
1. Double click on the 622 RIC located in slot 16 or 17 in the shelf level GUI "Chassis
View"at the top of the window.
2. Click the small block between the Status and Configuration sections and drag it downwards
to view all the status information. Refer to Table 759-1 for definitions of status information
provided.
3. Select the Close button to return to the shelf view.
Stop! You have completed this procedure.
Cellworx Vision: Card View - 622 Ring Interface Card
NE Name: Cellworx1
NE Id: 1
Card: 622 Ring
Slot Number: 17
Port Number: 1
622
Ring
ADC
Status
Active
Timing
Port
1
Apply
APPLIES CHANGES RETURNS TO CHASSIS
AND SENDS TO SHELF VIEW WITHOUT CLOSING
CONTROLLER. CARD LEVEL VIEW.
Page 2-266
© 2000, ADC Telecommunications, Inc.
Status:
Card Level
Up
Operational State:
Available
Availability State:
Port Level
Section Status: Line Status:
No Alarm No Alarm
AIS
LOS
LOF RDI
Synachronization Status:
TC Alarm Status:
Recieve Path Trace:
Configuration:
Port Level
Chassis View Diagnostics
PERFORMS TEST
OVER FIBER
LINK.

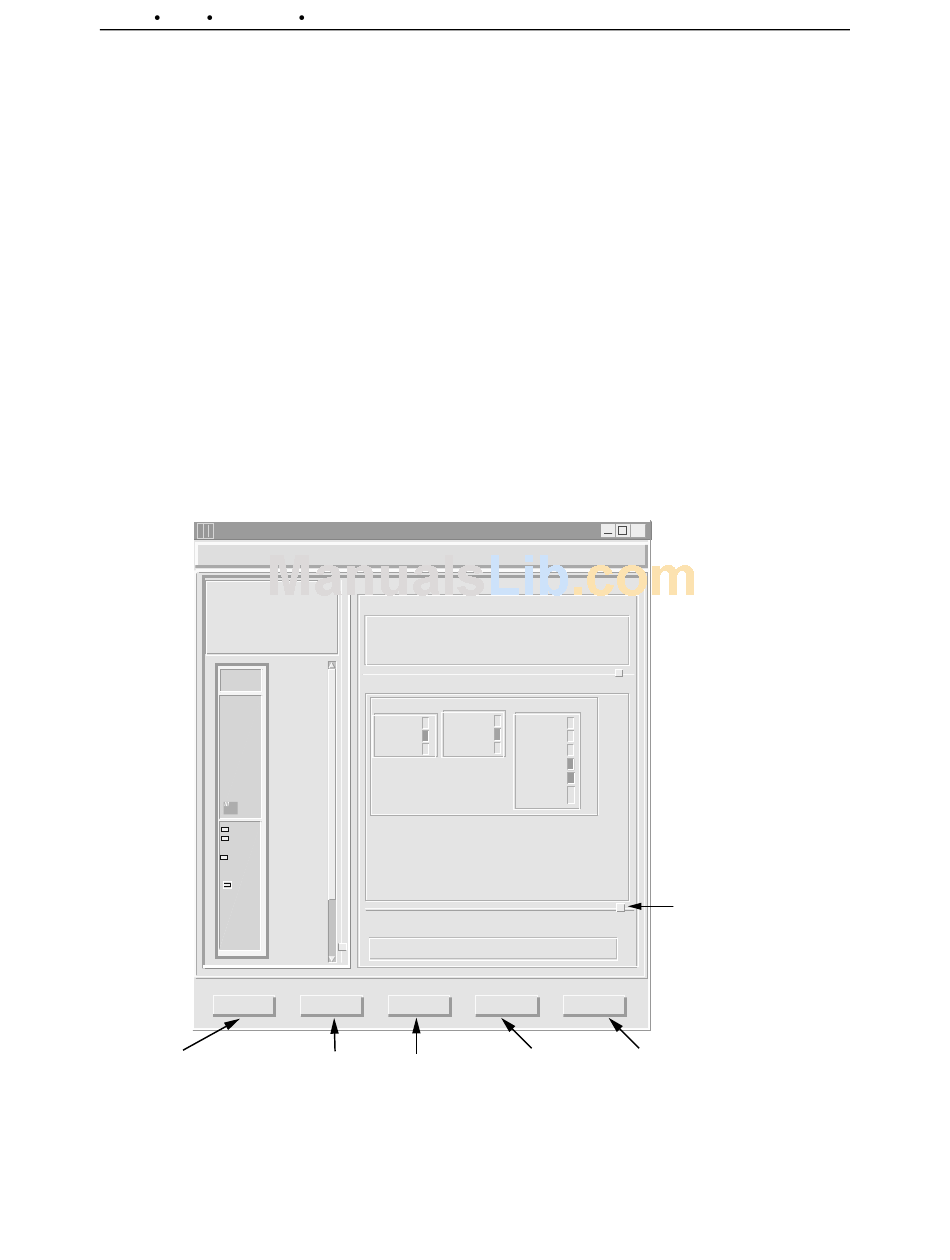

Figure 759-1. 622 RIC Status Window
X
Path Status:
No Alarm
STS LOP
STS AIS
STS RDI
Unequipped
Signal Label
Mismatch
ST3
No Alarm
NE3_Slot16_Port1 (OC12)
Refresh Close
REPAINTS WINDOW CLOSES CARD LEVEL
TO REFLECT ANY VIEW AND RETURNS TO
CHANGES. SHELF LEVEL VIEW.
CLICK ON BOX AND DRAG
UP OR DOWN TO EXPAND
STATUS OR CONFIGURATION
VIEWS.
13444-B
