Filter Type - ADC Release 3.1 User Manual

SELECT A TAB TO FILTER
FOR A SPECIFIC ITEM.
SELECT AN ITEM IN THE
FOLDERS TO FILTER.
SELECT THE APPLY BUTTON
TO RETRIEVE CONNECTION
INFO FOR FILTERED
SELECTION.
Table 787-3. Cellworx Vision Connection Filter Descriptions

FILTER TYPE

Connection
Network
Traffic
ATM
Cellworx Vision: Subnetwork Connection Filter
Network
Connection
Connection Types:
ATM VP - ATM VP
ATM VC - ATM VC
CES - ATM VC
CES - CES
FR - ATM VC
FR - FR
ATM VP MULTICAST
ATM BUNDLED VC MULTICAST
Retrieve All Selected Type Connections
Apply

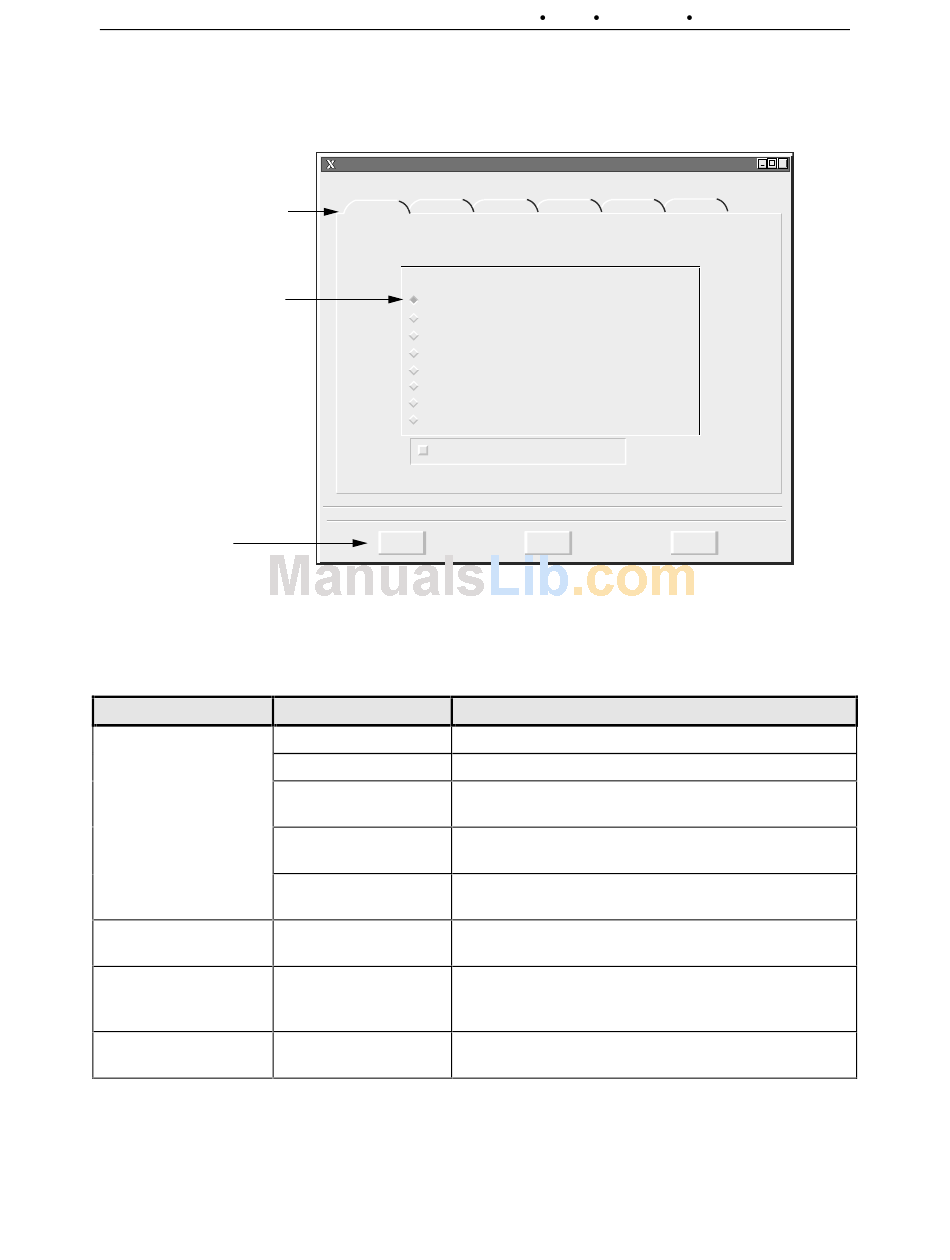

Figure 787-8 Connection Filter Window
OPTIONS
ATM VP - ATM VP Selects all ATM VP connections.
ATM VC - ATM VC Selects all ATM VC connections.
CES -VC Selects all Circuit Emulation Service to ATM Virtual
Channel connections.
CES - CES Selects all Circuit Emulation Service connections
(Phase II).
FR-ATM VC Frame Relay not supported for Release 2.0 software
FR-FR packages.
Administrator defined. Allows user to specify certain NEs when filtering
connections.
Administrator defined. Selects the traffic contract to be queried. These are
user-defined names. Several connections may utilize the
same traffic contract.
Administrator defined. Selects the UNI or NNI to be queried. These are user-
defined names and apply to specific ports.
1152700 Issue 1 February 2001 Operation and Maintenance
Traffic ATM
CES
Reset
DESCRIPTION
© 2000, ADC Telecommunications, Inc.
DLP-787
Page 10 of 12
X
FR
Close
11000-F
Page 2-383
