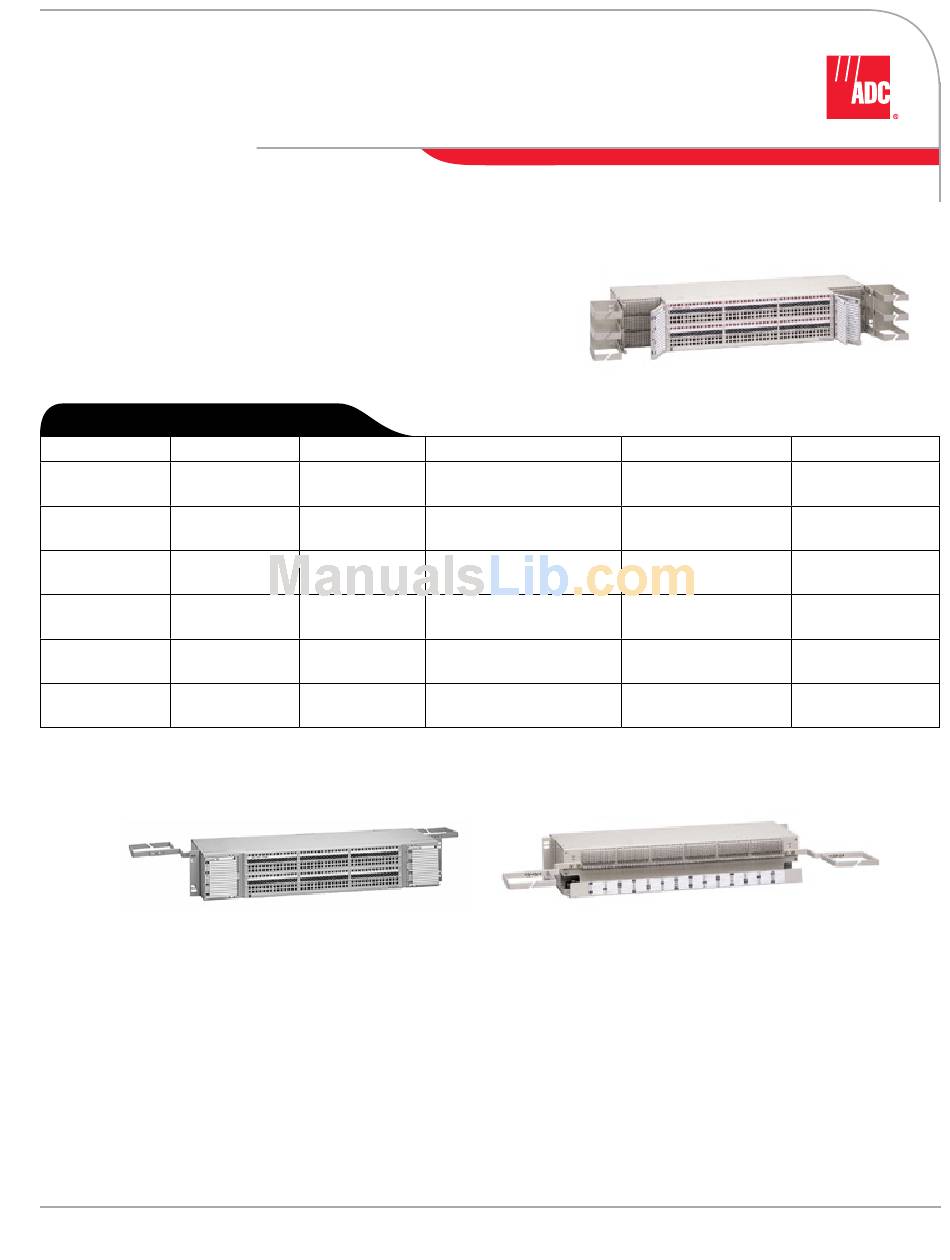

ADC Cross-Connect DSXi Specification Sheet

DSXi™ Cross-Connect

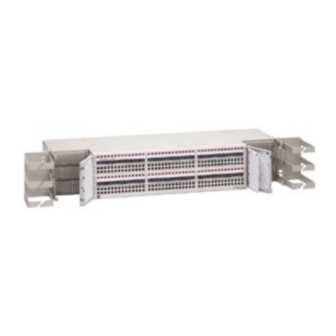

DSXi 84 Termination Chassis
Front and Rear Cross-Connect
• Increased density by 20 percent with 4-inch high panels, saving valuable floor space
• Easier circuit access and faster identification to help save time and money
• Improved cable management ensures cables are kept well organized
• Designed to comply with NEBS level 3 standards
O r d e r i n g I n f o r m a t i o n
Cross-connect IN/OUT Cabling
Rear Wire-wrap
Rear Wire-wrap
Front split Wire-wrap
Front split Wire-wrap
Front below Wire-wrap
Front below Wire-wrap
* Reversible bracket for 19" or 23"
w w w . a d c . c o m • + 1 - 9 5 2 - 9 3 8 - 8 0 8 0 • 1 - 8 0 0 - 3 6 6 - 3 8 9 1
Designation
1-84
1-28 A,B,C
1-84
1-28 A,B,C
1-84
(17.8 x 48.3/58.2 x 20.3 cm)
1-28 A,B,C
(17.8 x 48.3/58.2 x 20.3 cm)
Di-G2CU1 Front View
Dimensions
4" x 23" x 8"
(10.2 x 58.2 x 20.3 cm)
4" x 23" x 8"
(10.2 x 58.2 x 20.3 cm)
4" x 23" x 8"
(10.2 x 58.2 x 20.3 cm)
4" x 23" x 8"
(10.2 x 58.2 x 20.3 cm)
7" x 19"/23" x 8"
7" x 19"23" x 8"
Di-G2CU1 Rear View
Mounting Options Catalog Number
Flush, 2", 3", 4" recess
Flush, 2", 3", 4" recess
Flush, 2", 3", 4" recess
Flush, 2", 3", 4" recess
Flush, 2", 3", 4" recess
Flush, 2", 3", 4" recess
DI-G2CU1
DI-G2GU1
DI-M2CU1
DI-M2GU1
DI-T2CUI*
DI-T2GUI*
