1152700 Issue 1 February 2001 Section 2 Operation and Maintenance
DLP-714
Page 3 of 3
Cellworx Vision: Service Provider Profile Configuration
Network Element:
NE-1
NE-2
NE-3
Recording Interface Identifier:
Carrier Identifier:
Transit Identifier:
Service Type:
Call Type:
Remote Interface Type:
UNI
Apply

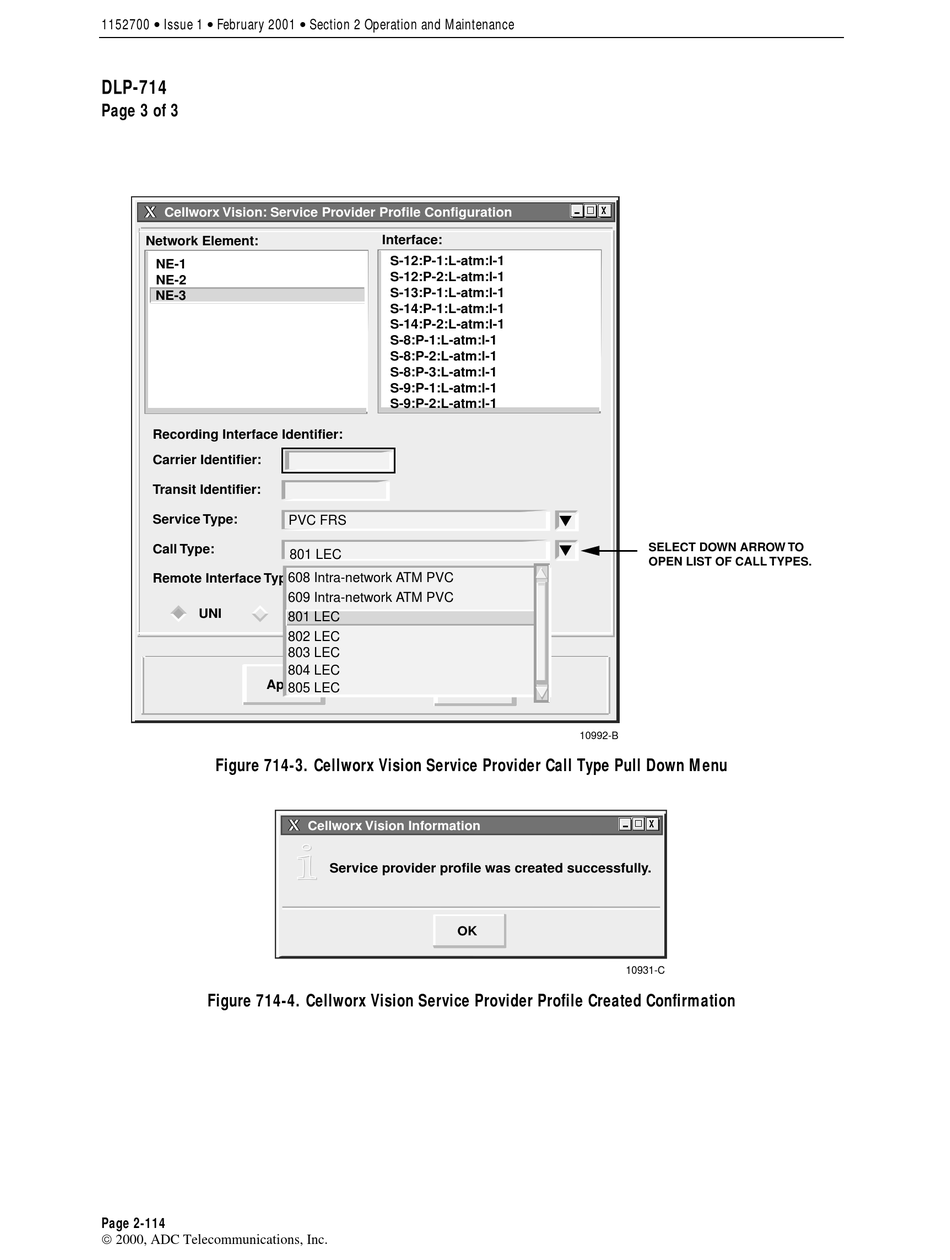

Figure 714-3. Cellworx Vision Service Provider Call Type Pull Down Menu
Figure 714-4. Cellworx Vision Service Provider Profile Created Confirmation
Page 2-114
2000, ADC Telecommunications, Inc.
Interface:
S-12:P-1:L-atm:l-1
S-12:P-2:L-atm:l-1
S-13:P-1:L-atm:l-1
S-14:P-1:L-atm:l-1
S-14:P-2:L-atm:l-1
S-8:P-1:L-atm:l-1
S-8:P-2:L-atm:l-1
S-8:P-3:L-atm:l-1
S-9:P-1:L-atm:l-1
S-9:P-2:L-atm:l-1
PVC FRS
801 LEC
608 Intra-network ATM PVC
609 Intra-network ATM PVC
BICI
801 LEC
802 LEC
803 LEC
804 LEC
Close
805 LEC
Cellworx Vision Information
Service provider profile was created successfully.
OK
X
SELECT DOWN ARROW TO
OPEN LIST OF CALL TYPES.
10992-B
X
10931-C
