Cellworx Vision: Subnetwork Management System
File Configuration Fault Performance
NE-2
Cellworx User: root
Local Time: 21:35 GMT Time: 21:35

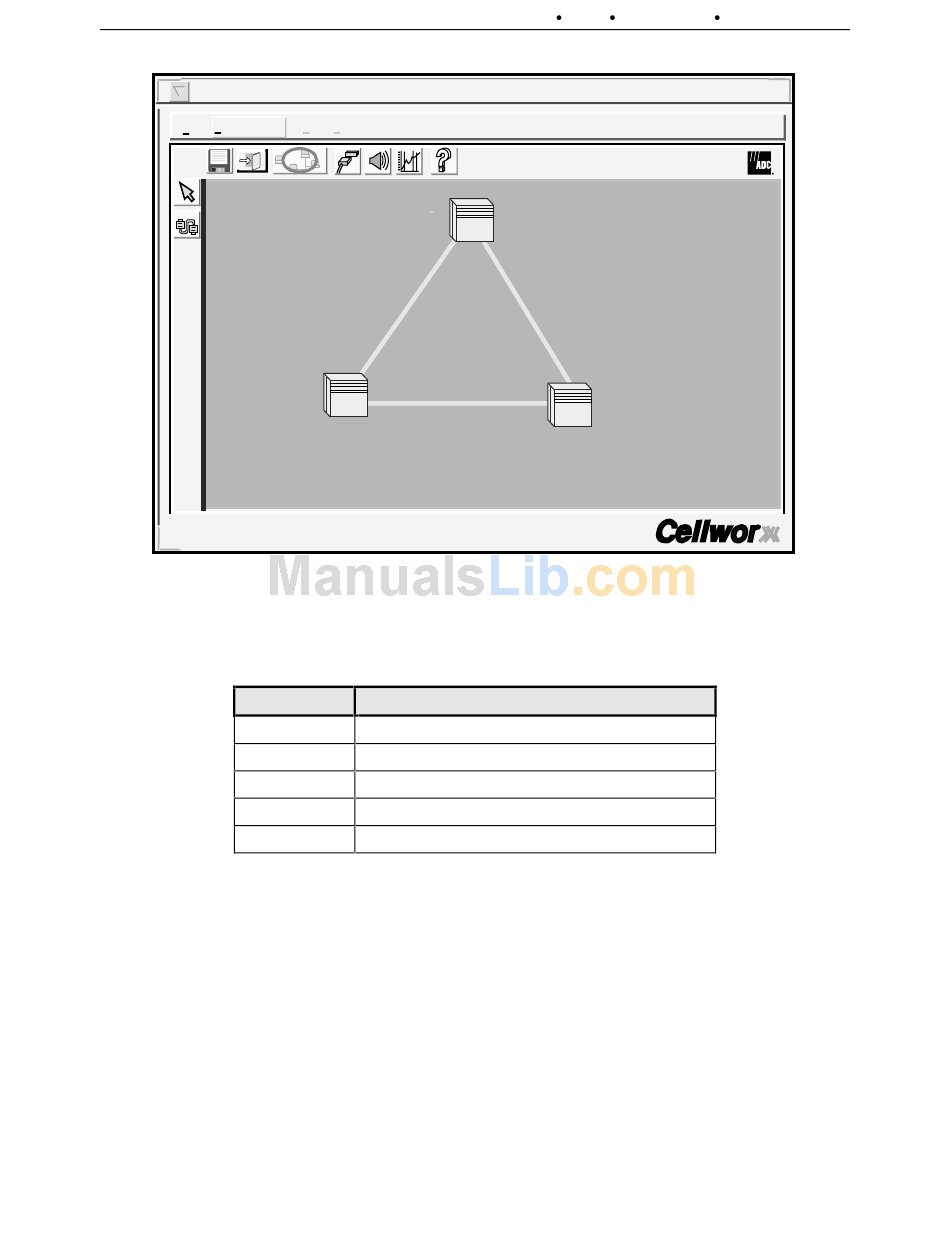

Figure 1-4. Network Manager Main Screen
Table 1-1. GUI Cellworx STN Node Icon Color Codes
COLOR
Green
Yellow
Orange
Red
Blue

GUI Screen Icon Definitions

Larger icons are used to represent the Cellworx STN shelves that have Secondary
nodes (expansion shelves called STN-EPS) connected to them. These icons are
referred to as Primary nodes and will look the same whether there are 2 or 10 STN-
EPS nodes connected to them. Refer to Figure 1-5. The Secondary nodes may be
collocated or reside at remote sites. When a user selects a node, it is highlighted by
a white square that surrounds it. By double clicking on one of these nodes with the
left mouse button, a new window is displayed reflecting the interconnecting
relationship between the Primary and Secondary nodes. It is at this point that the
user can determine the number of nodes involved. Refer to Figure 1-6. The Primary
node now appears as a normal size ICON and the ring network interconnections are
not displayed. To return to the ring network view, the operator clicks on the Cancel
button at the bottom of the window.
ADCP-70-220 Issue 1 September 2000 Section 1 Introduction
GNE-1
INDICATION
No existing alarms, normal operation.
Minor alarms exist at this site.
Major alarms exist at this site.
Critical alarms exist at this site.
Cannot communicate with the site.
NE-3
© 2000, ADC Telecommunications, Inc.
Help
10924-D
Page 1-5
