ADC Campus RS Destop Unit User Manual

Campus-rs line unit user manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

Campus
Campus
C
-RS L
U
AMPUS
INE
NIT
U
M
SER
ANUAL

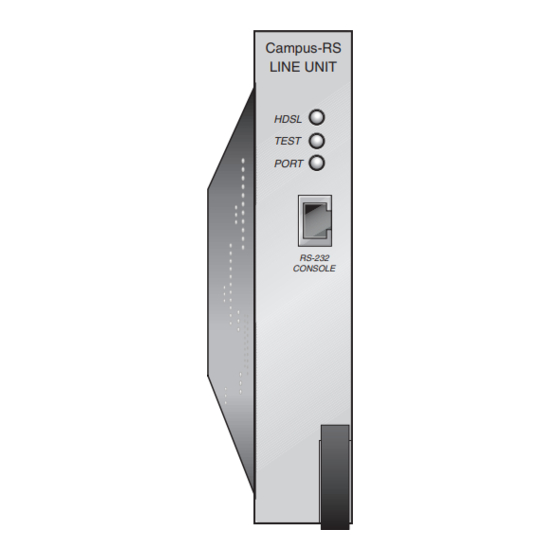

Campus-RS
LINE UNIT
HDSL
TEST
PORT
RS-232
CONSOLE

Advertisement

Table of Contents
loading

Related Manuals for ADC Campus RS Destop Unit

Summary of Contents for ADC Campus RS Destop Unit

  • Page 1 Campus Campus -RS L AMPUS ANUAL Campus-RS LINE UNIT HDSL TEST PORT RS-232 CONSOLE...
  • Page 2 In no event shall ADC be liable for any damages resulting from loss of data, loss of use, or loss of profits, and ADC further disclaims any and all liability for indirect, incidental, special, consequential or other similar damages.
  • Page 3 FCC C LASS This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 4: D Ocument C Onventions

    Using This Manual SING This manual provides information on how to: • locate the features of the ADC • install the line unit into a Campus-Star CARS-51) • set up the line unit • contact ADC for assistance OCUMENT ONVENTIONS Two types of messages, identified by icons, appear in the text.
  • Page 5 Unpack the card and inspect it for signs of damage. If it has been damaged in transit, report the extent of the damage to the transportation company and to ADC immediately. Order replacement equipment if necessary. Compare the contents of the package against the packing list to ensure a complete and accurate shipment.
  • Page 6 Unpack and Inspect the Shipment May 29, 2002 Campus-RS Line Unit User Manual...

  • Page 7: Table Of Contents

    ABLE OF ONTENTS Chapter 1: About the Product ____________________________________ 1 Features of the Line Unit ... 3 HDSL Reach and Transmission Rate ... 5 Chapter 2: Installing and Configuring the Line Unit__________________ 9 Surge Protection... 9 Install the Line Unit ... 10 Complete System Installation ...
  • Page 8 Table of Contents viii May 29, 2002 Campus-RS Line Unit User Manual...

  • Page 9: Chapter 1: About The Product

    BOUT THE ™ The Campus-RS card in a Campus-Star chassis, comprises half of a High-bit-rate Digital Subscriber Line (HDSL) transmission system. When connected to another Line Unit installed in a Campus-Star Unit, the Line Unit can transport digitized voice, data, and video signals over existing copper wire at a number of different HDSL transmission rates.
  • Page 10 About the Product When connecting to another Campus-RS unit, the three standard HDSL transmission rates are available. In addition, the Campus system can be configured to support an extended HDSL Operating Mode, as follows: • Over a single-loop connection, the Line Unit supports rates from 64 kbps to 2304 kbps in 64 kbps increments, depending on the interface card.

  • Page 11: Features Of The Line Unit

    EATURES OF THE This illustration shows the front of the Campus-RS Line Unit and page 4 describes its features. Campus-RS Line Unit User Manual Campus-RS LINE UNIT HDSL Status TEST LEDs PORT RS-232 port RS-232 CONSOLE Retaining latch May 29, 2002 About the Product Table 1 on...
  • Page 12 ADC for technical support. (a) To acknowledge a minor alarm, press and hold the Escape button on the Campus Management Unit (CMU) for three seconds.

  • Page 13: Hdsl Reach And Transmission Rate

    HDSL R EACH AND Four factors determine the maximum transmission rate and loop length of the HDSL line: • the wire gauge of the line • the condition of the line (presence of bridge taps, splices, and so on) • whether the line uses one or two loops •...
  • Page 14 About the Product 8.00 7.00 6.00 5.00 4.00 3.00 2.00 1.00 0.00 10.00 9.00 8.00 7.00 6.00 5.00 4.00 3.00 2.00 1.00 0.00 Campus-RS, Maximum Reach vs Rate 26 AWG (0.40 mm) Data Rate, One Loop/Two Loops (kbps) Campus-RS, Maximum Reach vs Rate 24 AWG (0.51 mm) Data Rate, One Loop / Two Loops (kbps)
  • Page 15 16.00 14.00 12.00 10.00 8.00 6.00 4.00 2.00 0.00 25.00 20.00 15.00 10.00 5.00 0.00 Campus-RS Line Unit User Manual Campus-RS, Maximum Reach vs Rate 22 AWG (0.51 mm) Data Rate, One Loop / Two Loops (kbps) Campus-RS, Maximum Reach vs Rate 19 AWG (0.51 mm) Data Rate, One Loop / Two Loops (kbps)
  • Page 16 About the Product May 29, 2002 Campus-RS Line Unit User Manual...

  • Page 17: Chapter 2: Installing And Configuring The Line Unit

    URGE ROTECTION To protect you and your Campus-RS devices, ADC recommends the use of a dual line Network Interface Device (NID) with a gas tube or solid state composition. The NID can protect both Campus-Star chassis and Campus-RS Desktop Units.

  • Page 18: Install The Line Unit

    Install the NID on the HDSL line between the HDSL jack and the Telephone Company (Telco) demarcation point. Telco demarcation point ADC also suggests providing power line protection for critical circuits in high lightning areas. Use conditioned AC voltage, furnished through an Uninterruptible Power Supply (UPS), that is bonded to a good facilities ground.

  • Page 19: Complete System Installation

    L I N Slide the Line Unit into the slot on the front of the Campus-Star chassis that corresponds to the slot into which you installed the interface card. Use the guide rails to align the card. When the Line Unit is in as far as possible, push the retaining latch in until it snaps into place.

  • Page 20: Determine The Hdsl Operating Mode

    Installing and Configuring the Line Unit ETERMINE THE The Campus-RS Line Unit supports two operating modes: • Standard Mode provides HDSL compatibility with earlier versions of Campus products, such as the Campus-T1 Desktop Unit. • Extended Mode provides a wide range of HDSL transmission rates when the Line Unit is connected to another Campus-RS product.
  • Page 21 HDSL O ET THE RANSMISSION This section provides generic instruction for setting the HDSL Operating Mode and transmission rate. The actual steps depend on the interface card mated with the Line Unit. Refer to the manual for the interface card for a description of configuration options and complete configuration instructions.

  • Page 22: Standard Mode Configuration

    Installing and Configuring the Line Unit Standard Mode Configuration This section continues from HDSL transmission rate. If the Operating Mode is set to STANDARD, skip to press Enter. Press Next until STANDARD displays, then press Enter. The LCD displays OPERATING MODE. Press Next until HDSL RATE displays, then press Enter.

  • Page 23: Set The Hdsl Transceiver Mode

    HDSL T ET THE The Transceiver Mode option determines the hierarchy of the two Campus units when attempting to establish an HDSL link. There are three settings: • If a unit is set to Master, it initiates the HDSL link. The other Campus unit must be set to Slave or Auto.
  • Page 24 Installing and Configuring the Line Unit PERATING WITH AMPUS RODUCTS Campus-RS Desktop and Line Units are fully compatible with most of the earlier versions of Campus products, including Campus-E1, Campus-T1, and Campus-768. The Campus-RS Desktop and Line Units are not currently compatible with Campus-384 products.
  • Page 25 HDSL Line Signal Format T1 (default) Transmit Signal Power Console Connector Return Loss Loop Provisioning Loss One-Way Transmission Delay Physical Height Width Depth Weight Campus-RS Line Unit User Manual ECHNICAL PECIFICATIONS Full Duplex 1040 kbps 2B1Q Line Code (two pair) Full Duplex 784 kbps 2B1Q Line Code (two pair) Full Duplex 784 kbps...

  • Page 26: Appendix A: Technical Specifications

    Environmental Operating Temperature Relative Humidity Electromagnetic Emissions Safety Compliance ADC reserves the right to change features and specifications without notice. 5 Vdc 32 to 122°F (0° to 50° C) 0 to 85% Per FCC Part 15 Class A, CE UL, CSA, CE...
  • Page 27 OCUMENTATION This table describes the manuals and guides in the Campus-RS documentation set. Table 2. Campus-RS Documentation Set Document Campus-Star User Manual Campus-RS Line Unit User Manual Campus-RS Desktop Unit User Manual Campus Interface Card User Manuals Campus-RS Line Unit User Manual Description Contains instructions for setting up and using a Campus-Star.

  • Page 28: Appendix B: The Documentation Set

    The Documentation Set May 29, 2002 Campus-RS Line Unit User Manual...

  • Page 29: Appendix C: Product Support

    ADC Customer Service Group provides expert pre-sales and post-sales support and training for all its products. Technical support is available 24 hours a day, 7 days a week by contacting the ADC Technical Assistance Center (TAC). Sales Assistance 800.366.3891 extension 73000 (USA and Canada) 952.917.3000...
  • Page 30 Email: repair&return@adc.com All telephone numbers with an 800 prefix are toll-free in the USA and Canada. • www.adc.com/Knowledge_Base/index.jsp • www.adc.com/library1/ • ADC Return Material Authorization (RMA) number and instructions must be obtained before returning products. May 29, 2002 Campus-RS Line Unit User Manual...
  • Page 32 ADC DSL Systems, Inc. 14402 Franklin Avenue Tustin, CA 92780-7013 Tel: 714.832.9922 Fax: 714.832.9924 Technical Assistance Tel: 800.638.0031 Tel: 714.730.3222 Fax: 714.730.2400 ISO 9001/TL 9000 DNV Certification, Inc. REGISTERED FIRM ´+cH¶7]¨ 1167407...
