Summary of Contents for ADC PG-PLUS PLL-722

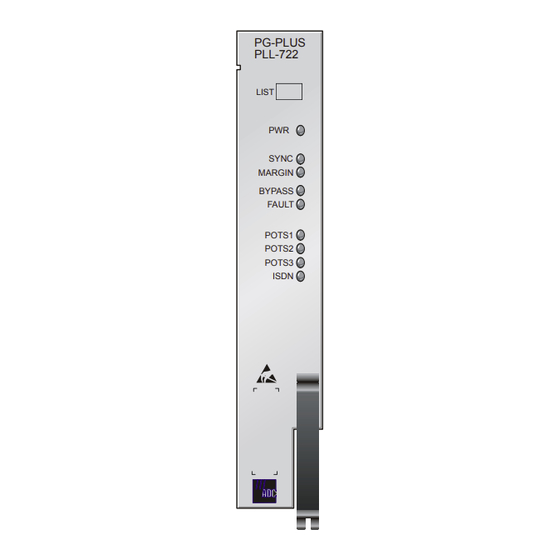

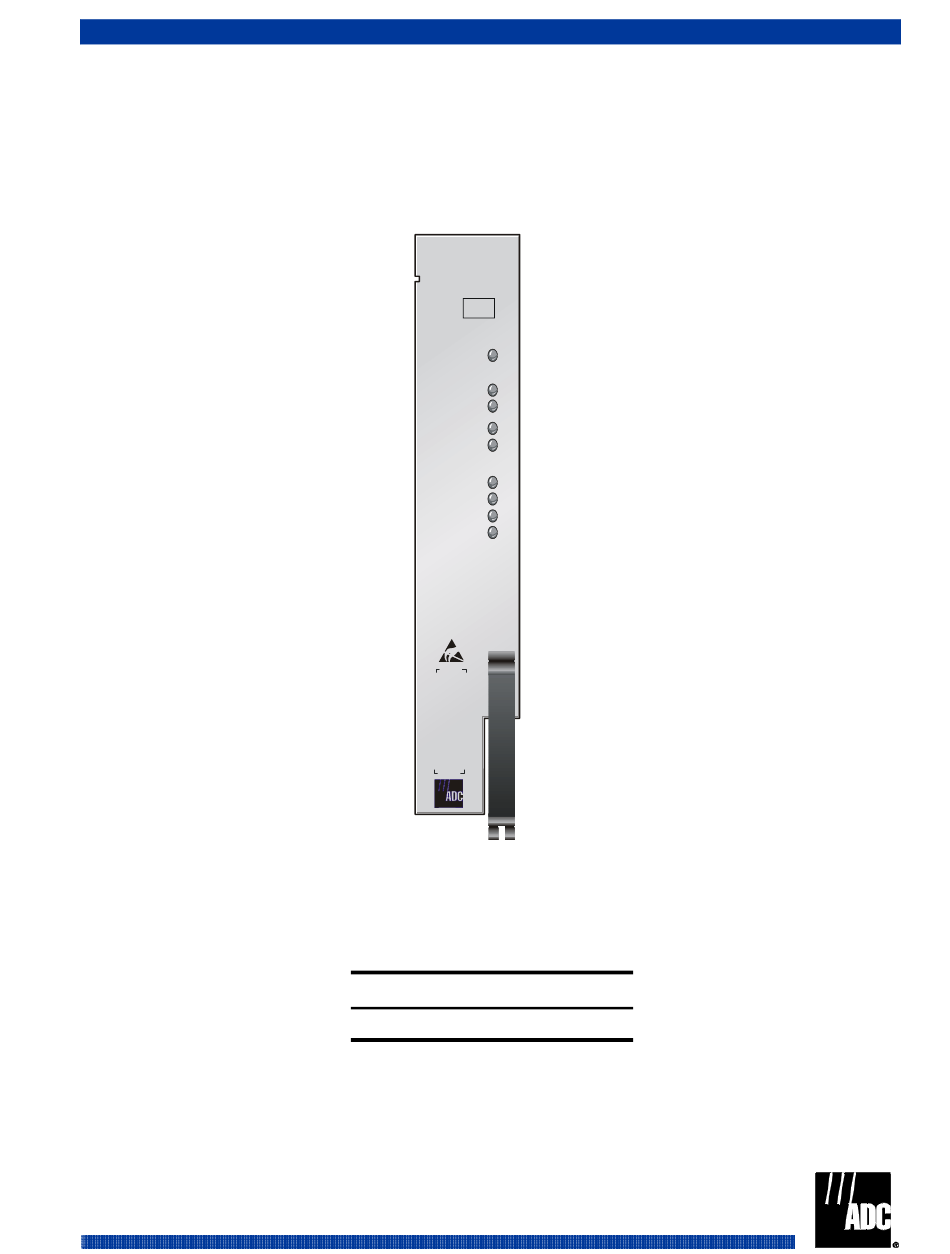

- Page 1 PG-P ECHNICAL RACTICE PG-PLUS PLL-722 LIST SYNC MARGIN BYPASS FAULT POTS1 POTS2 POTS3 ISDN 3 POTS/1 ISDN ENTRAL FFICE Model List CLEI Code PLL-722 S9L1AC0A~~ SCP-PLL722-010-04H ECTION...
- Page 2 Information furnished by ADC is believed to be accurate and reliable. In no event shall ADC be liable for any damages resulting from the loss of data, loss of use, or loss of profits and ADC further disclaims any and all liability for indirect, incidental, special, consequential or other similar damages.
- Page 3 • Unpack each container and visually inspect the contents for signs of damage. If the equipment has been damaged in transit, immediately report the extent of damage to the transportation company and to ADC. Order replacement equipment, if necessary. •...
- Page 4 Inspecting Your Shipment SCP-PLL722-010-04H January 6, 2003 PLL-722 List 1...
-
Page 5: Table Of Contents
SCP-PLL722-010-04H ABLE OF ONTENTS Overview ____________________________________________________________________________ 1 Description and Features........................1 Metallic Fallback..........................1 Specifications .............................2 Power Consumption and Heat Dissipation ..................3 Maximum Heat Dissipation....................3 Thermal Loading Limitations ....................3 Maximum Power Consumption...................4 Maximum Current Drain .....................4 Monitoring, History and Diagnostics....................4 Performance Parameters ......................4 Alarms Names and Types....................5 History ..........................5 LED Descriptions..........................6... - Page 6 SCP-PLL722-010-04H ISDN History Screen ......................22 Configuration Submenu........................23 System Options Screen ..................... 23 System Alarm Types Screen ..................... 24 HDSL Alarm Thresholds Screen ..................25 HDSL Alarm Types Screen ....................26 ISDN1 Options Screen...................... 27 ISDN Alarm Thresholds Screen ..................28 ISDN Alarm Types Screen ....................
- Page 7 SCP-PLL722-010-04H IST OF IGURES 1. Typical System Application ..........................1 2. COLU Front Panel LEDs ..........................6 PLL-722 List 1 January 6, 2003...
- Page 8 SCP-PLL722-010-04H January 6, 2003 PLL-722 List 1...
- Page 9 SCP-PLL722-010-04H IST OF ABLES 1. Power Consumption and Heat Dissipation......................3 2. LED Descriptions ............................7 3. Menu Bar Selections............................13 4. System Status..............................14 5. HDSL Alarms Screen ............................21 6. System Options Configuration Fields ......................24 7. System Alarms...............................25 8. HDSL Alarm Thresholds..........................25 9. Alarm Reports ...............................26 10.
- Page 10 SCP-PLL722-010-04H January 6, 2003 PLL-722 List 1...
-
Page 11: Overview
Craft port Figure 1. Typical System Application The COLU uses ADC's HDSL technology to provide digital transmission without the need for repeaters, loop conditioning, or pair selection. The COLU can be installed in the PCS-718 19-inch or the PCS-719 23-inch COTS. -
Page 12: Specifications
Specifications SCP-PLL722-010-04H PECIFICATIONS Power Supply Voltage Safety A2 compliant per GR-1089-CORE Input Voltage -42 Vdc to -56 Vdc HDSL Line Output Voltage + 140 Vdc maximum Output Power 27 Watts maximum HDSL Line Code 2B1Q HDSL Line Rate 196 K symbols/sec; 392 K bps HDSL Reach 12.5 kft (3.81 km), 26 AWG;... -
Page 13: Power Consumption And Heat Dissipation
Conditions other than worst case would permit increasing the number of COTS per bay without jeopardizing the CO thermal integrity. Due to the chimney effect, ADC recommends you install one heat-dissipating baffle between every COTS. This action would prevent exceeding the rated operating temperature of the COLU units. -
Page 14: Maximum Power Consumption
Monitoring, History and Diagnostics SCP-PLL722-010-04H Maximum Power Consumption Maximum power consumption is the total power that the COLU consumes or draws from its -48 Vdc COTS power source. This parameter is needed when the COLU is located remotely from its serving CO. It determines the battery capacity required to maintain an 8-hour standby battery reserve for emergency situations. -
Page 15: Alarms Names And Types
SCP-PLL722-010-04H Monitoring, History and Diagnostics Alarms Names and Types The COLUs generate alarms for problem conditions on the HDSL transmission facility and at the application interface. From the “System Alarm Types Screen” on page 24, you can set the alarms to the value types of Critical, Major, Minor, Not Alarmed, and Not Reported. -
Page 16: Led Descriptions
LED Descriptions SCP-PLL722-010-04H LED D ESCRIPTIONS Table 2, in which n equals the POTS line, describes the COLU front-panel LEDs depicted in Figure 2. For further details on the LEDs activities, refer to “Initialization Sequence” on page 8 and the “COLU and RT Fault Indicators”... -
Page 17: Led Descriptions
SCP-PLL722-010-04H LED Descriptions Table 2. LED Descriptions Condition Mode COLU is powered and the dc power provided to the HDSL pair is normal. Flashing One battery feed is missing or a battery feed fuse on the COLU is blown. On, and FAULT Flashing DC power provided to the HDSL pair is out of normal range. -
Page 18: Installation And Test
Required Tools and Test Equipment SCP-PLL722-010-04H NSTALLATION AND EQUIRED OOLS AND QUIPMENT No tools are required to install the COLU. For testing, the following tools may be utilized: • Telephone test set • ISDN Basic Rate test set • Optional, PSU-795, COTS Continuity Test Card, 150-1695-01 List 1 COLU NSTALLING THE You can install the COLU in any slot except the three positions labeled COMMON, MUX 1, and MUX 2. -
Page 19: Subscriber Drop Tests
SCP-PLL722-010-04H Subscriber Drop Tests UBSCRIBER ESTS You can perform this function in one of two ways: • Initiate a test by applying a test voltage on the Tip at the COLU through an MLT set • With the VT-100 Terminal connected to the PAU or PMU maintenance port, select the Subscriber Drop Test feature from the Test menu. -
Page 20: Logging On
Logging On SCP-PLL722-010-04H OGGING Press the several times to activate the Autobaud feature. Supported baud rates are 1200, 2400, SPACEBAR 4800, 9600, and 38400. The Logon Password screen displays. PG-Plus Login Screen Enter Password: ____________ Access Key: 062790011146 Type the default password and press to view the PAU or PMU Main menu bar. -
Page 21: Pau Or Pmu Main Submenu
SCP-PLL722-010-04H PAU or PMU Main Submenu PMU M UBMENU The first screen displays the COTS Main menu bar. The screens are identified by the COTS slot number at the top of each screen. The provisionable System ID string displays at the bottom center, the date displays at the lower left of the screen, and the time in military format displays at the lower right of the screen. -
Page 22: Colu Main Menu
COLU Main Menu SCP-PLL722-010-04H Scroll to the Select option and press to access the submenu. ENTER Scroll to the desired COLU slot number noted above and press ENTER COLU M When you select the COLU from the PAU or PMU Select option, the COLU Main menu displays. You can perform any of the functions listed in Table 3 from this screen. -
Page 23: Navigational Methods
↑ Moves down the submenu selection. Moves the cursor down the screen items. ↓ Returns to the PAU or PMU Main screen. The ADC banner appears briefly and then the Main menu bar CTRL displays. No effect. At COLU screen cycles through choices. -
Page 24: Colu Summary Screen
COLU Main Menu SCP-PLL722-010-04H COLU Summary Screen This screen details the performance condition of the COLU and RT. Select Main from the menu bar and press to view this screen. ENTER Status indicators for the HDSL span and the POTS interfaces HDSL performance summary in terms of margin and ES counts... -
Page 25: Performance Submenu
SCP-PLL722-010-04H Performance Submenu ERFORMANCE UBMENU The Performance submenu provides access to the COLU performance screens. Select Performance at the menu bar and press to display the submenu. ENTER HDSL Summary Screen This screen depicts an HDSL performance summary in terms of the MAR and ES count. Use the available options to reset the minimum and maximum margin counts. - Page 26 Performance Submenu SCP-PLL722-010-04H • ES: An interval of 1 second during which at least 1 error is detected at the incoming HDSL port or there is an LOSW condition. • UAS: An interval of 1 second during which a loop is down. •...
-
Page 27: Hdsl 24-Hour History Screen
SCP-PLL722-010-04H Performance Submenu HDSL 24-Hour History Screen This screen shows twenty-four hours of HDSL performance history. The performance history data displayed includes ES counts, UAS counts, and the validity of the counts. Select Performance at the menu bar and press to display the submenu. -
Page 28: Hdsl 7-Day History Screen
Performance Submenu SCP-PLL722-010-04H HDSL 7-day History Screen Shows seven days of performance history plus the current day's accumulated performance information. The information displayed includes ES counts, UAS counts, and the validity of the counts. Select Performance at the menu bar and press to display the submenu. -
Page 29: Isdn Summary Screen
SCP-PLL722-010-04H Performance Submenu ISDN Summary Screen Shows all of the stored ISDN performance data for the COLU and the RT. The information includes ES and SES counts for the current hour, the previous hour, the current day and the previous day; and BE counts for the current hour and previous hour. -
Page 30: Isdn 7-Hour History Screen
Alarms Submenu SCP-PLL722-010-04H ISDN 7-Hour History Screen Displays the 7-hour ISDN ES history information for the COLU and the RT. The ES counts for the current hour and the previous hour are also displayed for completeness. This means that the 7-hour history begins with the hour prior to the previous hour. -
Page 31: Hdsl History Screen
SCP-PLL722-010-04H Alarms Submenu HDSL History Screen The HDSL history maintained on the COLU contains a count of the number of times each alarm occurred, the time and date of the first and last occurrence, the provisioned notification type, and the current status. At this screen you view the results of the alarms set at the Configuration “HDSL Alarm Types Screen”... -
Page 32: Isdn History Screen
Alarms Submenu SCP-PLL722-010-04H ISDN History Screen The ISDN History has two pages: the first relates to the COLU, and the second relates to the RT. The information includes the alarm name, the provisional alarm type, the current status of the alarm, the number of times the alarm was reported, the date and time of the first report alarm that of the last reported alarm. -
Page 33: Configuration Submenu
SCP-PLL722-010-04H Configuration Submenu ONFIGURATION UBMENU Provides access to system provisioning screens, and an easy means of resetting all options to factory defaults. Select CONFIG at the menu bar and press to view the submenu. ENTER System Options Screen Allows the provisioning of options such as ringing frequency, SDT, HDSL Periodic Power Up, and a System ID. Table 6 shows the configured system data and their factory default value. -
Page 34: System Alarm Types Screen
Configuration Submenu SCP-PLL722-010-04H Table 6. System Options Configuration Fields Options Description Default POTS Ringing The ringing frequency sent from the RLU to the subscriber. Possible values include 20 HZ, 25 20 Hz Frequency HZ, 30 HZ, and 50 HZ. LCFO Blocking OFF, Detecting Removal of Battery command from CO causes RT to remove battery feed to the subscriber pair. -
Page 35: Hdsl Alarm Thresholds Screen
SCP-PLL722-010-04H Configuration Submenu Table 7. System Alarms Abbreviation Description Default MISPWRA -48 V A power is missing on the COLU or a fuse is blown. NA MISPWRB -48 V B power is missing on the COLU or a fuse is blown. NA MISMATCH COLU and RT hardware type incompatible. -
Page 36: Hdsl Alarm Types Screen
Configuration Submenu SCP-PLL722-010-04H HDSL Alarm Types Screen Allows the provisioning of the alarm types for all HDSL Alarms. Table 9 lists the Alarm Reports and Table 10 shows the HDSL Alarms, the possible alarm Types, and the default factory settings. You can view the results of these settings from the “HDSL History Screen”... -
Page 37: Isdn1 Options Screen
SCP-PLL722-010-04H Configuration Submenu Table 10. HDSL Alarms Alarm Description Default LOSW COLU cannot receive data over the given HDSL loop. COLU and RT cannot synchronize and is out of service. ES-15 Number of HDSL ES has exceeded the user-configurable threshold to give advance warning that HDSL Min. -
Page 38: Isdn Alarm Thresholds Screen
Configuration Submenu SCP-PLL722-010-04H At the field, use the to toggle to the desired value. Sealing Current SPACEBAR Move to the next option. Continue until you have completed your changes. Move to the field, and press to accept the changes. Accept ISDN Option Changes ENTER Press to move up a menu level, or... -
Page 39: Isdn Alarm Types Screen
SCP-PLL722-010-04H Configuration Submenu ISDN Alarm Types Screen Allows the provisioning of the alarm types. Table 11 shows the ISDN Alarms, the possible alarm Types, and the default factory settings. All Alarm fields can be set to Major, Minor, or Not Alarmed. Select CONFIG at the menu bar and press to display the submenu. -
Page 40: Save Configuration Screen
Configuration Submenu SCP-PLL722-010-04H Table 11. ISDN Alarms Alarm Description Default ISDN loss of signal condition at COLU and/or RT. LOSW ISDN loss of SYNC word condition at COLU and RT. ISDN hourly and/or daily ES count has reached or exceeded the configured value at COLU or ISDN hourly and/or daily SES count has reached or exceeded the value at the COLU or RT. -
Page 41: Set Factory Defaults Screen
SCP-PLL722-010-04H Configuration Submenu Type at the prompt to save the changes you made, or to leave the values in their original Continue? setting. A confirmation message is displayed. Press to move up a menu level, or to return to the PAU/PMU Main menu. CTRL Set Factory Defaults Screen Sets all configuration data back to factory default values. -
Page 42: Test Submenu
Test Submenu SCP-PLL722-010-04H Type at the prompt to reset the system to the Factory Default values, or to leave the values as Continue? is. A confirmation message is displayed. Press to move up a menu level, or to return to the PAU/PMU Main menu. CTRL Save Configuration This does not make the configuration changes permanent. - Page 43 SCP-PLL722-010-04H Test Submenu Use the key to move to the desired circuit to test, then press ENTER A warning displays when a channel is selected for the test. Performing an SDT on one of the POTS or ISDN channel interrupts service on the line under test. The remaining lines on the PG-Plus system remains in service.
-
Page 44: Information Submenu
Main menu. CTRL NFORMATION UBMENU Provides technical information about the COLU and contact information for ADC Technologies, Inc. Select INFO from the menu and press to view the submenu. ENTER Select either Inventory or Help to view the associated screen. -
Page 45: Inventory Screen
CTRL to return to the PAU/PMU Main menu. Help Screen Provides information on using the screens and menus. The Help screen also lists the ADC Customer Support and Bulletin Board telephone numbers. Press to move up a menu level, or... -
Page 46: Fault Isolation
COLU and RT Fault Indicators SCP-PLL722-010-04H AULT SOLATION The following sections detail the fault isolation procedures. For sections that indicate a condition such as “distance limitation exceeded”, refer to “Specifications” on page 2 for these values. COLU RT F AULT NDICATORS At the CO, you can use the Craft interface to initiate a SDT to determine the cause of any of the following problems. -
Page 47: Subscriber Reported Faults
SCP-PLL722-010-04H Subscriber Reported Faults Mode Condition Procedure no input power 1 Ground fault condition exists. on-board fuse is blown on 2 Check input power at COTS backplane with COLU removed. COLU 3 If power is present at COTS backplane, replace the COLU. Flashing HDSL line open 1 Check line continuity and resistance. - Page 48 Subscriber Reported Faults SCP-PLL722-010-04H Conditions Causes Procedures Phone does not faulty subscriber station 1 If phone stops ringing when using a butt set at the subscriber location, the instrument subscriber's station internal resistance is too high. Replace phone. stop ringing loop length too long 2 If phone does not stop ringing when using a butt set at the subscriber location, one or both of these conditions exist:...
-
Page 49: Product Support
ADC’s Return Material Authorization (RMA) Department. Call or write ADC’s RMA Department to ask for an RMA number and any additional instructions. Use the telephone number, fax number or email address listed below: •... - Page 50 If there is another reason for returning the equipment, please let us know so we can determine how best to help you. Pack the equipment in a shipping carton. Write ADC’s address and the RMA Number you received from the RMA Department clearly on the outside of the carton and return to: ADC DSL Systems, Inc.
-
Page 51: Fcc Classa Compliance
The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by ADC voids the user's warranty. All wiring external to the product(s) should follow the provisions of the current edition of the National Electrical Code. -
Page 52: Acronyms
Modifications SCP-PLL722-010-04H CRONYMS Alarm Cut-Off American Wire Gauge Bit Error Rate Controlled Environmental Vault Central Office COLU PG-Plus Central Office Line Unit COTS PG-Plus Central Office Terminal Shelf Customer Premises Equipment Critical Errored Seconds Federal Communications Commission HDSL High-Bit-Rate Digital Subscriber Line ISDN Integrated Services Digital Network LCFO... - Page 54 World Headquarters: ADC Telecommunications, Inc. 12501 Whitewater Drive Minnetonka, Minnesota USA 55343 For Technical Assistance: 800.366.3891 ´,Sn¶8N¨ 1251788...
