ADC Release 3.1 User Manual page 404

1152700 Issue 1 February 2001 Operation and Maintenance
DLP-787
Page 11 of 12
USE FORMAT TO SPECIFY
ORDER BY NE OR NAME,
OR RETURN TO FILTER
WINDOW.
Cellworx Vision: Connection List: ATM Bundled VC MULTICAST
Format
Connection Name
Broadcast-1 Uptown
Broadcast-2 Downtown
Video Trans-Office
Status...
RETRIEVES STATUS
OF SELECTED
CONNECTION IN
A NEW WINDOW.

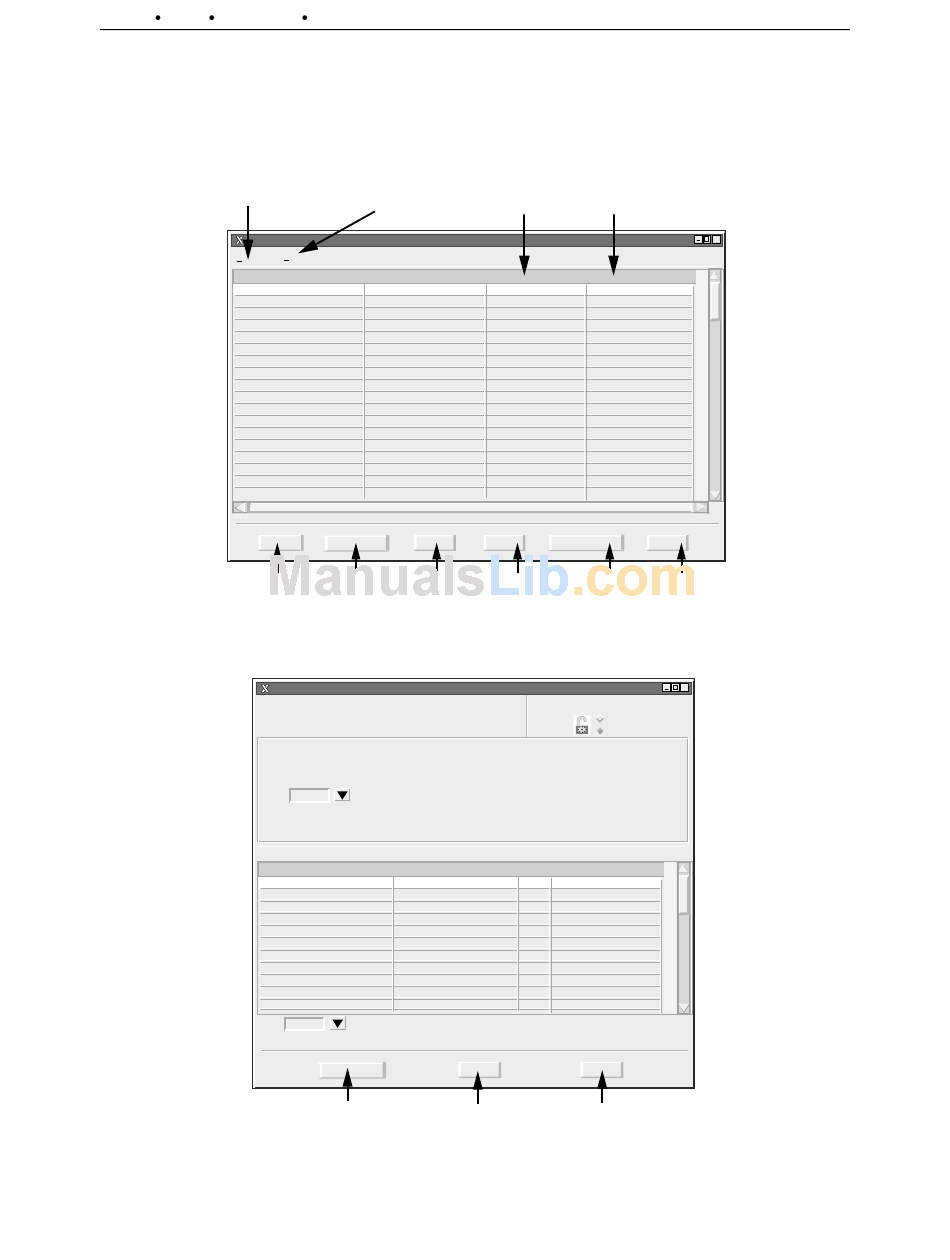

Figure 787-9. ATM VP Multicast Connection List Screen
Cellworx Vision: Connection Status
Connection Name: VP-Multicast
Connection Type:
Root Network Element: NE-2
UNI/NNI: oc3cmm:S-14:P-1:L-atm:I-1
VPI: 5
VCI:
Administrative State: up
Traffic Contract: cbr-1.5
Leaf Endpoints:
Network Element
NE-2
NE-4
NE-6
VCI: 32
Administrative State: up
Figure 787-10. ATM VP Multicast Connection Status Window
Page 2-384
© 2000, ADC Telecommunications, Inc.
USE VIEW TO DISPLAY
NDC DATA.
View
Root NE
NE-1
NE-1
NE3
Configure... Delete
BRINGS UP A DELETES
CONFIGURATION SELECTED
WINDOW FOR CONNECTION.
SELECTED
CONNECTION.
ATM VP MULTICAST
5
Interface
oc3cmm:S-11:P-2:L-atm:I-1
ds3crs:S-8:P-1:L-atm:I-1
t1multi1:S-14:P-5:L-atm:I-1
Configure Refresh
CONFIGURES THE REFRESHES STATUS
SELECTED LEAF INFORMATION.
ENDPOINT.
INDICATES NUMBER DISPLAYS THE STATUS
OF EACH CONNECTION.
OF LEAVES ON THE
CONNECTION.
Number of Leaves Status
3 FUNCTIONAL
6 FUNCTIONAL
2 INCOMPLETE
Clear Selected
Retry Close
TRIES TO REMOVES
COMPLETE HIGHLIGHT
SELECTED FRO SELECTED
CONNECTION. CONNECTIONS.
Administrative State:
Locked
Unlocked
VPI Status
2 FUNCTIONAL
2 FUNCTIONAL
2 FUNCTIONAL
Close
CLOSES WINDOW.
X
CLOSES
WINDOW.
14466-A
X
14469-A
