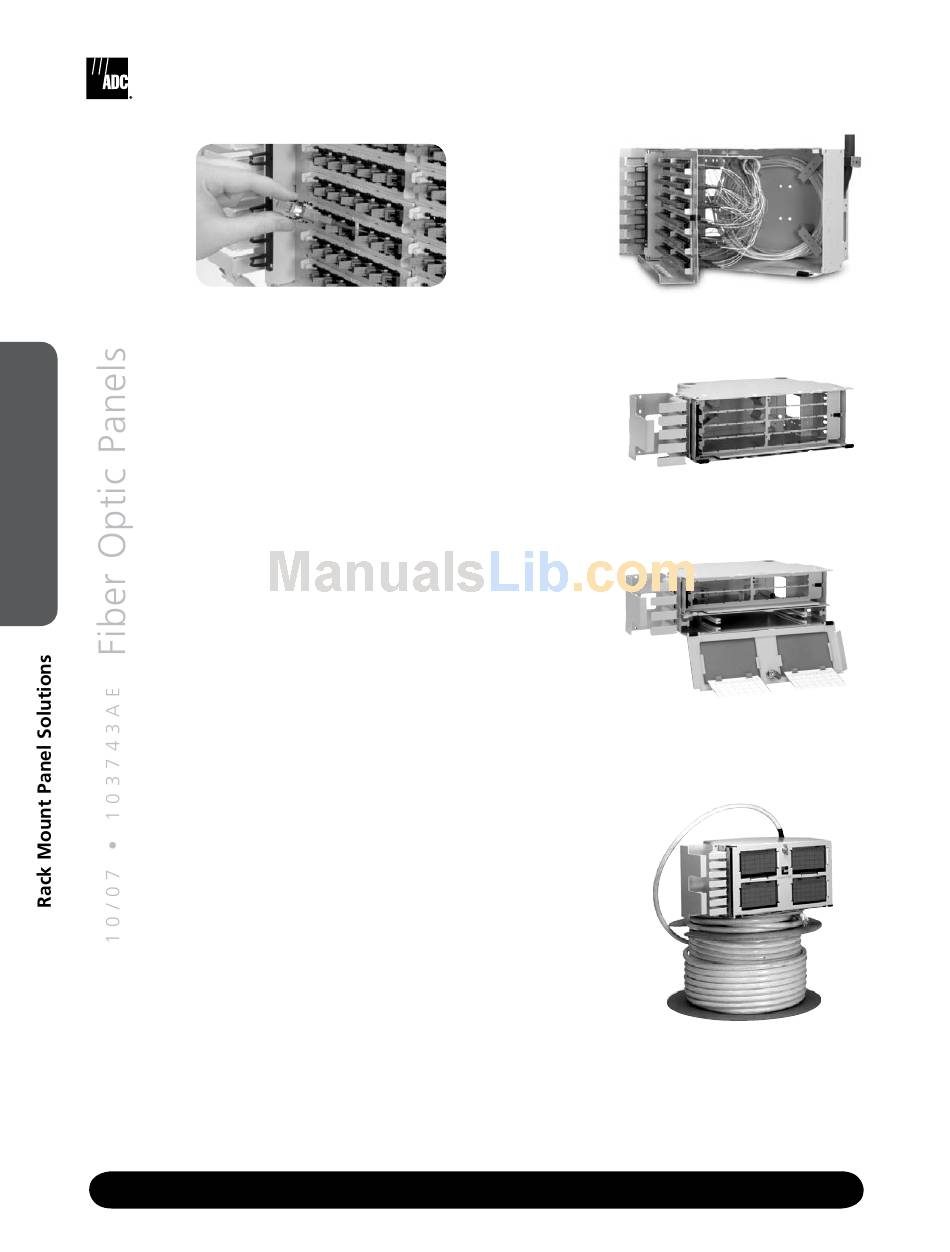

FL2000 Series Fiber Optic Panel
Introduction
Single Fiber Access
The FL2000 system is a flexible and modular series of
fiber products for today's and tomorrow's evolving
communications and data networks.
This product family is a complete line of modular panels
developed for rack and wall mounting. The system is
fully adaptable to small distribution frames, telephone
closet (TC) applications, or active equipment racks.
FL2000 panels are designed for both 19- and 23-inch EIA
rack or cabinet environments. FL2000 products provide
termination, splicing and storage capabilities for in-building
cables, outside plant cables and fiber optic terminal (FOT)
equipment.
FL2000's modular design offers maximum flexibility to
satisfy current needs and future growth requirements. A
full line of options and accessories ensures compatibility
with existing optical equipment. FL2000 panels
accommodate value-added module (VAM) plug-ins, adding
flexibilty and functionality to the optical transport system.
Splitters, wavelength division multiplexers (WDMs) and
other optical components can easily be incorporated.
All FL2000 panels accommodate 6pak adapters. 6paks
are available in all connector styles and can be ordered
as needed. ADC's removable angled retainers allow easy
access for single fiber maintenance.
FL2000 panels feature superior vertical cable protection
and management. Rack mount panels are hinged on one
side, allowing full access to the rear of the front bulkhead
plate and the interior of the panel. They come equipped
with mounting brackets to provide five-inch recess
mounting. Mounting brackets are available for virtually
any mounting application. Rack mount panels can be wall
mounted as well. The FL2000 splice wheel allows easy
storage of pigtail and buffer tube lengths and superior
bend radius protection. The FL2000 splice deck is available
to complete existing installations.
w w w . a d c . c o m
•
+ 1 - 9 5 2 - 9 3 8 - 8 0 8 0
Swing-out Bulkhead
(Allows Full Access)
Rack Mount
Termination Panel
(Empty)
Rack Mount
Termination/Splice Panel
(Empty)
Rack Mount
Termination Panel
(With IFC)
•
1 - 8 0 0 - 3 6 6 - 3 8 9 1
38
Advertisement
Related Manuals for ADC Fiber Optic Panel FL2000 Series
Summary of Contents for ADC Fiber Optic Panel FL2000 Series
- Page 1 All FL2000 panels accommodate 6pak adapters. 6paks are available in all connector styles and can be ordered as needed. ADC’s removable angled retainers allow easy access for single fiber maintenance. FL2000 panels feature superior vertical cable protection and management.
-
Page 2: Product Overview
FL2000 Series Fiber Optic Panel Introduction Product Overview Recommended Multi-purpose modular solution ideal for cabinet, rack, wall mount or medium Applications size frame applications. Ideal for small to medium fiber counts. Description Termination, termination/splice, storage, splice-only Number of fibers, 12 to 96 (up to 192 with LC connectors) future growth potential Flexibility/... - Page 3 6-fiber softwall bundle except with LC connectors, which uses 12-fiber. Mounting kit shipped unattached if other than standard mounting style. Other configurations are available upon request. Please contact ADC Technical Assistance Center. w w w . a d c . c o m •...
- Page 4 6pak assemblies (ordered separately) • Complete line of accessories including locks for security • Uses ADC splice wheels or splice decks • Ships with vertical cable guide (VCG) Fiber Chassis Data • Fiber capacity*: 12, 24, 48, 72 & 96 •...
-
Page 5: Multi Mode
Mounting kit shipped unattached, if other than standard mounting style. Other configurations are available upon request. Please contact ADC Technical Assistance center. w w w . a d c . c o m •... - Page 6 12-fiber. Mounting kit shipped unattached, if other than standard mounting style. Other configurations are available upon request. Please contact ADC Technical Assistance Center. w w w . a d c . c o m • + 1 - 9 5 2 - 9 3 8 - 8 0 8 0 257 mm (10.1")
- Page 7 FL2000 Series Fiber Optic Panel Empty Termination Chassis Features • Mounting - 19-inch EIA racks or cabinets, standard five-inch recess - Wall mounting option available - Other mounting kits available • Hinged on left front side; allows full access to rear of front plate and interior of panel •...
- Page 8 FL2000 Series Fiber Optic Panel Slack Storage Solutions Storage Deck Chassis Mounts with FL2000 termination panels to provide jumper storage. May be wall, rack or cabinet mounted. Storage Deck Storage Capacity (1 patch cord per deck) 1.7 mm patch cord 35 m (115') per deck 3.0 mm patch cord 20 m (66') per deck...
- Page 9 • Occupies same footprint and offers same mounting options as FL2000 termination panels • Accepts the ADC splice wheel for efficient management of fiber cable and splice protection • Accepts the ADC splice deck • Ships with vertical cable guide (VCG) Fiber Chassis Data •...
- Page 10 Value-Added Module (VAM) System ADC offers an expansive line of monitor, splitter, WDM and CWDM VAM plug-in modules designed to meet all application needs. Please reference the Value-Added Module (VAM) System Catalog #101663AE for details at www.adc.com or contact ADC Customer Service.
- Page 11 Standard Mount (VCG) (as shipped) • Other mounting options are available upon request. Please contact ADC Technical Assistance Center. O r d e r i n g I n f o r m a t i o n Description Standard mount kit...
- Page 12 FL2000 Series Fiber Optic Panel Panel Accessories – 19-Inch Rack Mount Installation Kits Maximum Mount Kit Allows entire panel to be contained within frame footprint. Mounting O r d e r i n g I n f o r m a t i o n Description Maximum mount kit Kit includes: VCG with integrated...
- Page 13 FL2000 Series Fiber Optic Panel Panel Accessories – 23-Inch Rack Mount Installation Kits Wide VCG Mount Kit Allows for increased fiber capacity within the VCG. Rear Guard Box (optional with some racks) 127 mm (5") O r d e r i n g I n f o r m a t i o n Description Wide VCG mount kit Kit includes: VCG with integrated...
- Page 14 FL2000 Series Fiber Optic Panel Panel Accessories – 23-Inch Rack Mount Installation Kits Centered Mount Kit Allows for standard mounting in a 23-inch rack. Rear Guard Box (optional with some racks) 127 mm (5") Extender Bracket O r d e r i n g I n f o r m a t i o n Description Centered mount kit (with extender brackets)
- Page 15 LC ultra polish LC angled polish LC 6paks are loaded with 12-fiber pigtails Other configurations are available upon request. Please contact ADC Technical Assistance Center. w w w . a d c . c o m • + 1 - 9 5 2 - 9 3 8 - 8 0 8 0...
- Page 16 LC angled polish* 6pak blank plug-in * LC 6pak adapter accommodates 12 LC connectors. Other configurations are available upon request. Please contact ADC Technical Assistance Center. w w w . a d c . c o m • + 1 - 9 5 2 - 9 3 8 - 8 0 8 0...
- Page 17 FL2000 Series Fiber Optic Panel Panel Accessories Splice Wheel and Splice Deck Splice Wheel Splice Deck O r d e r i n g I n f o r m a t i o n Description Splice wheel Heat shrink (single fiber fusion) Bare fusion Mechanical (mass fusion) Splice deck...
- Page 18 FL2000 Series Fiber Optic Panel Panel Accessories Miscellaneous Locks 2.14 m (7') 305 mm 64 mm (12") (2.5") End Guard UEGP-7PW 356 mm (14") Lower Cable Trough FL2-ACC011 178 mm (7") Lower Cable Trough FL2-ACC012 w w w . a d c . c o m •...
- Page 19 Panel Accessories Ordering Information for Patch Cords and Attenuators ADC offers a comprehensive line of cable assembly and accessory products including patch cords, IFC assemblies, attenuators, FasTerm network. Please refer to the Fiber Cable Assemblies Catalog #102880AE at www.adc.com for more detailed information.
