NTP-006
Page 4 of 5
C. PERFORMANCE MONITORING PARAMETERS
1.

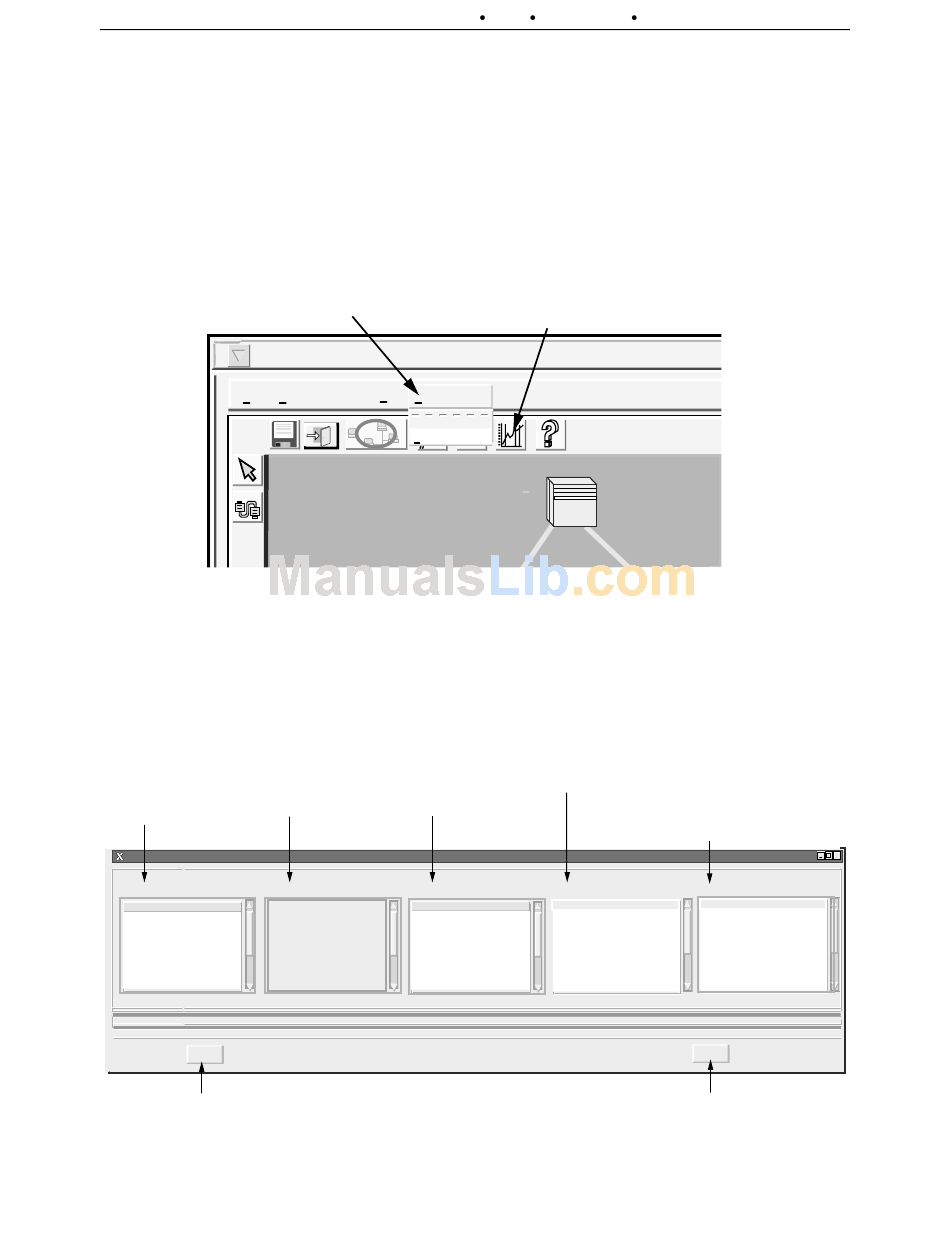

From the GUI main screen, select the Performance pull down
menu and then Monitoring using the left mouse button or by
hitting Alt+P and Alt+M. See Figure 006-1. User may also use
the graph icon shown on the tool bar above the workspace.
PERFORMANCE PULL
DOWN MENU
File
Configuration
Figure 006-1. Cellworx Vision Performance Pull Down Menu
2.
The Cellworx Vision Performance Monitoring - Selection
window appears as shown in Figure 006-2. In the upper left
selection box, select a network element, card type, port, layer,
and interval, followed by Apply at the bottom of the window.
SELECT AN NE FOR PM
SELECT A SLOT AND CARD
RETRIEVAL AND THE SLOT
TYPE, INDIVIDUAL OR
AND CARD TYPES IN THE
MULTIPLE, TO DISPLAY THE
SHELF WILL BE DISPLAYED
PORTS IN THE NEXT WINDOW.
IN THE NEXT WINDOW.
Cellworx Vision: Performance Monitoring - Statistics
Resource: NE-1
Slot / Card Type
Slot 17 / 622 Ring
NE-1
Cellworx1
Slot 16 / 622 Ring
NE-2
Cellworx2
Slot 5 / T3 TMUX Multi 1
NE-3
Cellworx3
Slot 6 / 155 SM CRS
Slot 7 / 155 SM CRS
Slot 8 / 155 SM CRS
Slot 9 / 155 SM CRS
Slot 10 / T3 CRS
Slot 11 / T3 CRS
Slot 12 / T1 Multi 1
Apply
SELECT TO RETRIEVE PM
DATA FOR SELECTED
PARAMETERS.
Figure 006-2. Cellworx Vision Performance Monitoring - Selection Window
ADCP-70-220 Issue 1 November 2000 Section 2 Operation and Maintenance
PERFORMANCE REPORT
GRAPH ICON SHORTCUT
Cellworx Vision Subnetwork Management System
Fault
Performance
MONITORING...
SELECT THE PORT(S) DESIRED
TO DISPLAY THE LAYERS
AVAILABLE IN THE NEXT
WINDOW.
Port
Slot 16 / Port 1
Slot 16 / Port 2
Slot 17 / Port 1
Slot 17 / Port 2
Slot 5 / Port 1
- Channel 1
- Channel 2
- Channel 3
- Channel 4
- Channel 5
GNE-1
11744-C
SELECT THE PM LAYER(S)
SELECT THE CURENT
TO BE RETRIEVED.
COUNT OR A HISTORICAL
TIME PERIOD FOR ONE
SLOT/PORT. USER CANNOT
SELECT CURRENT AND A
HISTORICAL AT THE SAME
TIME.
Layer
Interval
current
Sonet
00:00-00:15
DS1/E1
00:15-00:30
DS3
00:30-00:45
PLCP
00:45-01:00
ATM / TC
01:00-01:15
AAL1
01:15-01:30
01:30-01:45
01:45-02:00
0200 - 02:15
Close
CLOSES PM STATISTICS
WINDOW.
© 2000, ADC Telecommunications, Inc.
X
11743-D
Page 2-17
