ADC Release 3.1 User Manual page 380

1152700 Issue 1 February 2001 Operation and Maintenance
DLP-785
Page 4 of 7
CLICK ON THE UP OR DOWN ARROWS TO INCREASE OR DECREASE THE
VALUE WHICH PROVIDES EXPONENTIAL SMOOTHING FOR ALARM NOTICES
THAT REPORT/RESPOND TO FR BUFFER CONGESTION
Smoothing Constant:
Ingress:
Low Buffer Congestion Threshold:
High Buffer Congestion Threshold:
SELECT THE BLACK BLOCK AND DRAG
TO THE DESIRED BUFFER CONGESTION
THRESHOLD FOR ALARM ABATEMENT.
THIS VALUE WILL BE 10 PERCENT LESS
THAN THE THRESHOLD ONSET.

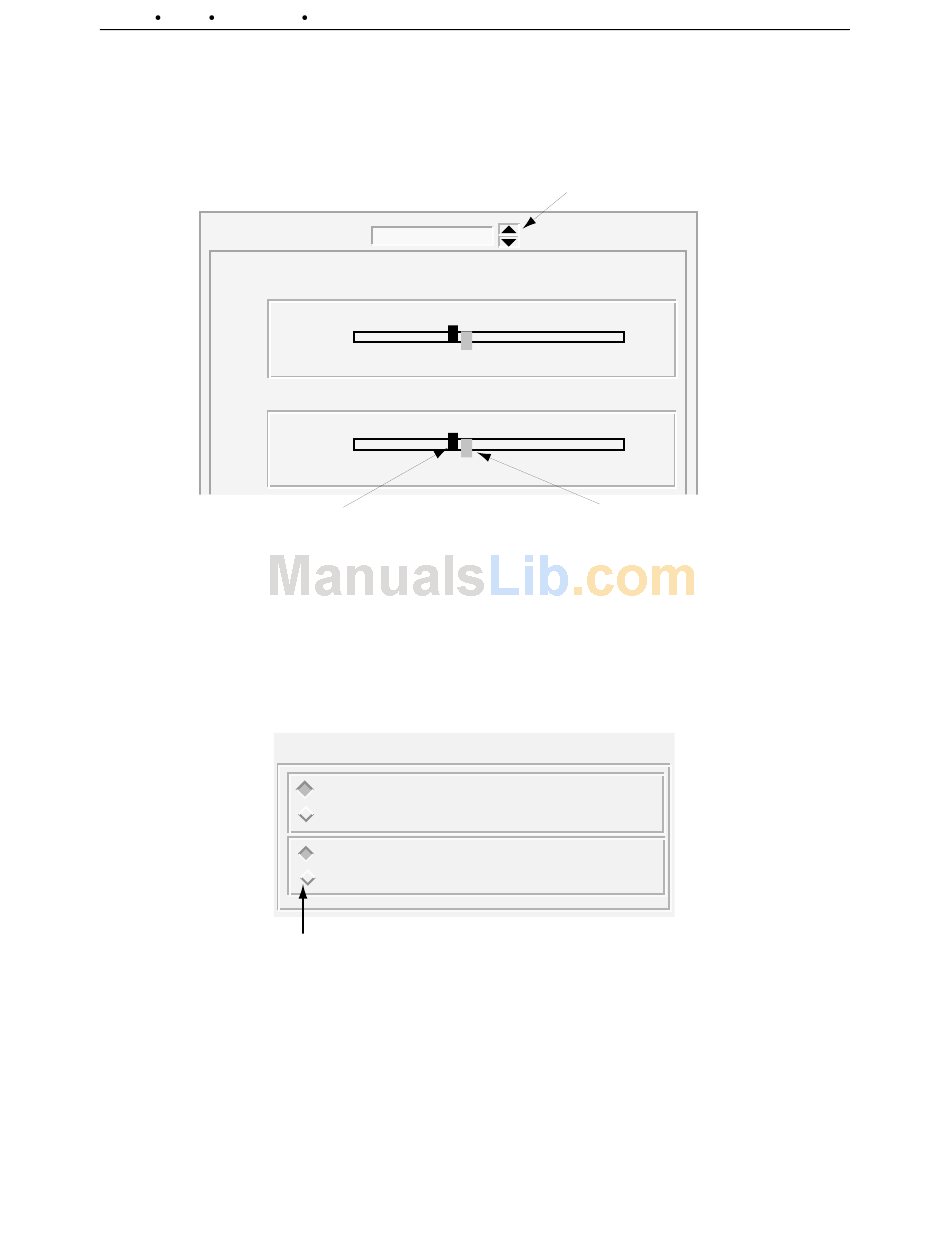

Figure 785-2. FRS Buffer Congestion Threshold Settings
Port Mode:
SELECT THE DESIRED PORT CONFIGURATION AND THEN
HIT THE APPLY BUTTON. NOTE THAT IF SELECTING
CHANNELIZED CONFIGURATION, PORTS 5 AND 6, AND/OR
7 AND 8 WILL NOT BE SELECTABLE FOR INTERFACE
CONFIGURATION.
Page 2-360
© 2000, ADC Telecommunications, Inc.
0.3
40
Abatement
0
Onset
65
Abatement
0
Onset
SELECT THE RED BLOCK AND DRAG
TO THE DESIRED BUFFER CONGESTION
THRESHOLD FOR ALARM ONSET. ANY
CELLS TAGGED AS DISCARD ELIGIBLE
FOR ANY INTERFACE AND PORT MAY BE
DISCARDED ONCE THIS THRESHOLD IS
CROSSED.
Ports 1 and 2 Channelized; Ports 5 and 6 disabled
Ports 1, 2, 5, and 6 Fractional
Ports 3 and 4 Channelized; Ports 7 and 8 disabled
Ports 3, 4, 7, and 8 Fractional
Figure 785-3. FRS Port Mode Settings
100
100
0026-001
0026-021
