NTP-008
Page 2 of 2
SELECT AN NE FOR PM SELECT A SLOT AND CARD
RETRIEVAL AND THE SLOT TYPE, INDIVIDUAL OR
AND CARD TYPES IN THE MULTIPLE, TO DISPLAY THE
SHELF WILL BE DISPLAYED PORTS IN THE NEXT WINDOW.
IN THE NEXT WINDOW.
Cellworx Vision: Performance Monitoring - Statistics
Resource: NE-1 Slot / Card Type
Slot 17 / 622 Ring
NE-1 Cellworx1
Slot 16 / 622 Ring
NE-2 Cellworx2
Slot 5 / T3 TMUX Multi 1
NE-3 Cellworx3
Slot 6 / 155 SM CRS
Slot 7 / 155 SM CRS
Slot 8 / 155 SM CRS
Slot 9 / 155 SM CRS
Slot 10 / T3 CRS
Slot 11 / T3 CRS
Slot 12 / T1 Multi 1
Apply
SELECT TO RETRIEVE PM
DATA FOR SELECTED
PARAMETERS.

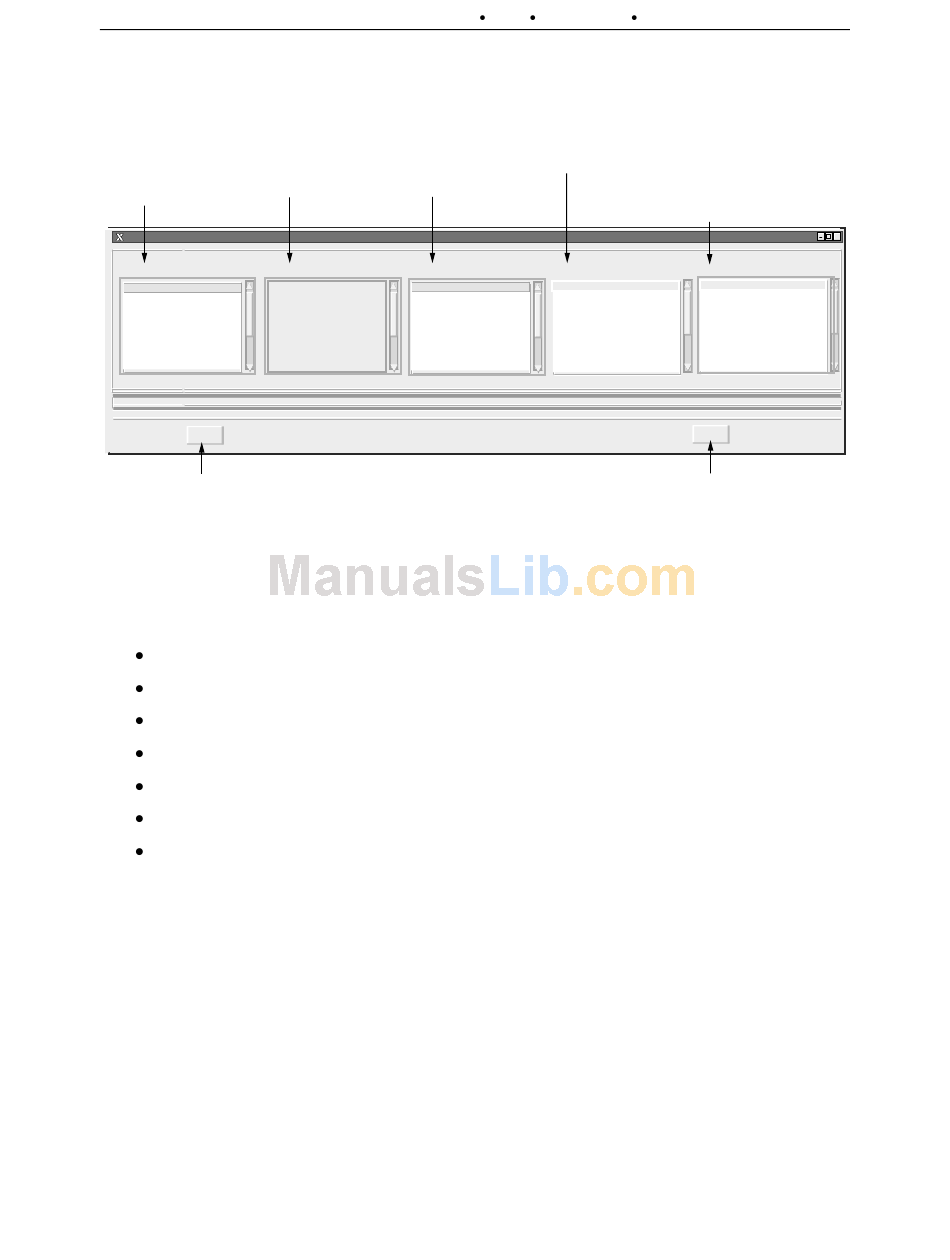

Figure 008-2. Cellworx Vision Performance Monitoring - Selection Window
3. Go to one of the following procedures according to the layer
selected:
Retrieve Optical Port Performance Monitoring Statistics
Retrieve T3 TMUX Performance Monitoring Statistics
Retrieve T3 CRS Port Performance Monitoring Statistics
Retrieve T1/E1 Multi 1 Port Performance Monitoring Statistics
Retrieve FT1 FRS Port Performance Monitoring Statistics
Retrieve FE1 FRS Port Performance Monitoring Statistics
Retrieve T3 CES Port Performance Monitoring Statistics
Stop! You have completed this procedure.
ADCP-70-220 Issue 1 November 2000 Section 2 Operation and Maintenance
SELECT THE PORT(S) DESIRED SELECT THE PM LAYER(S)
TO DISPLAY THE LAYERS TO BE RETRIEVED.
AVAILABLE IN THE NEXT
WINDOW.
Port Layer
Sonet
Slot 16 / Port 1
DS1/E1
Slot 16 / Port 2
DS3
Slot 17 / Port 1
PLCP
Slot 17 / Port 2
ATM / TC
Slot 5 / Port 1
AAL1
- Channel 1
- Channel 2
- Channel 3
- Channel 4
- Channel 5
SELECT THE CURENT
COUNT OR A HISTORICAL
TIME PERIOD FOR ONE
SLOT/PORT. USER CANNOT
SELECT CURRENT AND A
HISTORICAL AT THE SAME
TIME.
Interval
current
00:00-00:15
00:15-00:30
00:30-00:45
00:45-01:00
01:00-01:15
01:15-01:30
01:30-01:45
01:45-02:00
0200 - 02:15
Close
CLOSES PM STATISTICS
WINDOW.
DLP-726
DLP-727
DLP-728
DLP-729
DLP-732
DLP-733
DLP-794
Page 2-23
