DISPLAYS CONNECTION NAME
DISPLAYS CONNECTION TYPE
SELECT THE ORIGINATING ROOT
ID FROM THE LIST FOR THIS VPI.
NEXT SELECT THE DESTINATION
LEAF VCI TO MAP THE ROOT VCI
TO. FINALLY SELECT THE >>
BUTTON TO SEND THE PAIR TO
THE SELECTED TRANSLATION
BOX. USER CAN JUST SELECT
THE >> TOOL MULTIPLE TIMES
TO SELECT ONE FOR ONE VCI
TRANSLATION MAPPING.

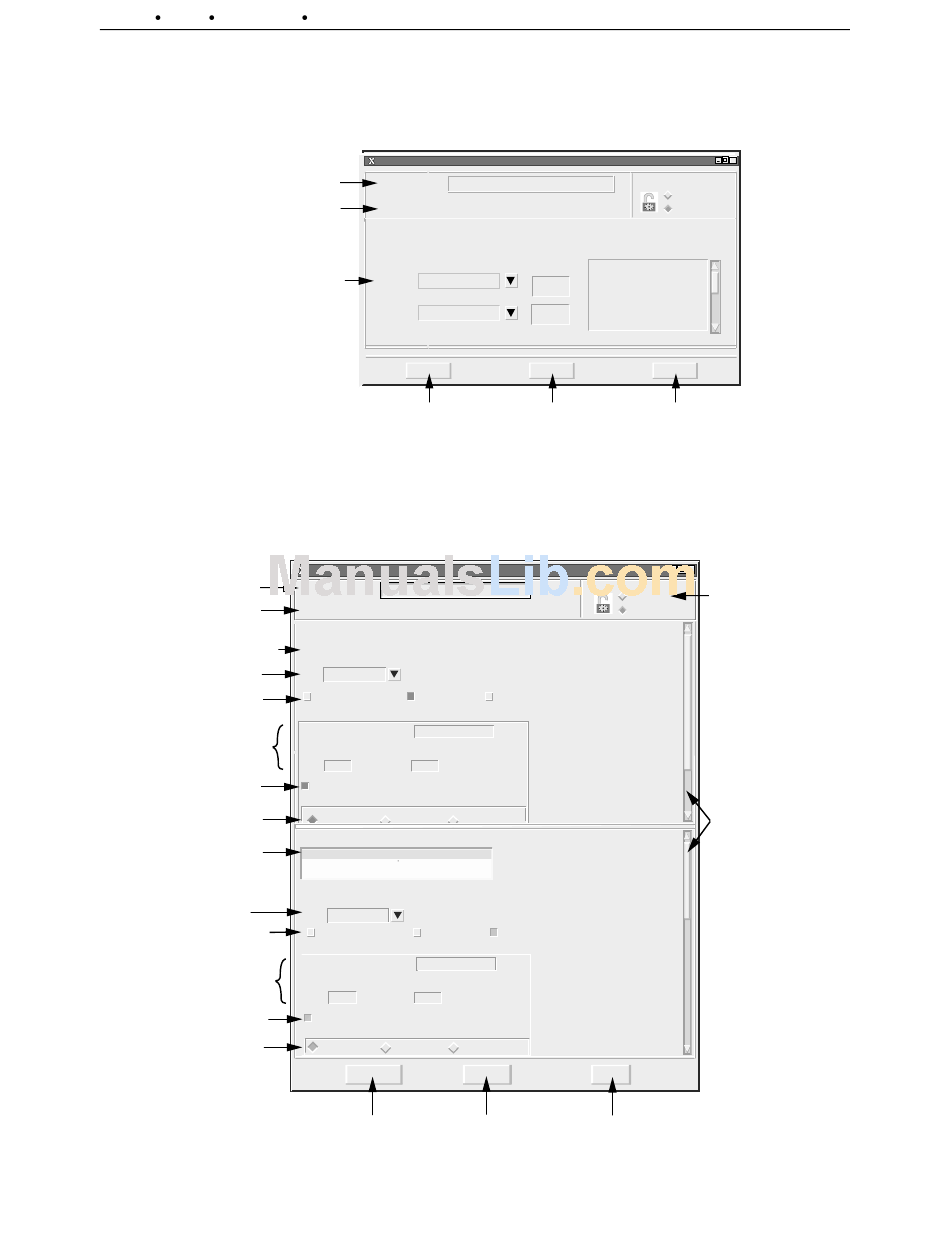

Figure 790-5. ATM VC Bundled Multicasting VCI Mapping
DISPLAYS CONNECTION NAME.
DISPLAYS PREVIOUSLY SELECTED
CONNECTION TYPE.
DISPLAYS ROOT NE INFORMATION
IN UPPER SECTION OF THIS WINDOW.
DISPLAYS VCI NUMBER BEING
CONFIGURED.
SET ROOT AS A SEGMENT ENPOINT
AND INITIATE NETWORK DATA
COLLECTION AS NEEDED.
FAR END LEC INTERFACE ID.
GENERATES USAGE INFORMATION
FOR STUDY PURPOSES.
FAR END LEC INTERFACE TYPE.
DISPLAYS LEAF INTERFACES
BEING CONFIGURED.
DISPLAYS VCI NUMBER BEING
CONFIGURED.
SET LEAF AS A SEGMENT ENPOINT
AND INITIATE NETWORK DATA
COLLECTION AS NEEDED.
FAR END LEC INTERFACE ID.
GENERATES USAGE INFORMATION
FOR STUDY PURPOSES.
FAR END LEC INTERFACE TYPE.
Figure 790-6. ATM VC Bundled Multicast Connection Configuration
Page 2-400
© 2000, ADC Telecommunications, Inc.
Cellworx Vision: Connection Configuration
Connection Name: NE-1 --> NE-2
Connection Type: ATM BUNDLED VC MULTICAST
Root VCI: 36
Leaf VCI:
55
<< Previous
RETURNS TO PREVIOUS
CONFIGURATION SCREEN.
Cellworx Vision: Connection Configuration
Connection Name: NE-1 <--> NE-2
Connection Type: ATM BUNDLED VC MULTICAST
Root Network Element: NE-1
UNI/NNI: oc3cmm:S-14:P-2:L-atm:I-1
VPI: 2
VCI: 34
Segment Endpoint Ingress NDC
Service Provider Profile
Remote Interface Identifier:
0
Remote Connection Identifier:
VPI: VCI:
Study Indication
Remote Interface Type:
UNI B-ICI FR UNI
Leaf Interfaces:
NE:2 / ds3crs:S-12:P-3:L-atm:l-1 / VPI: 3
NE:2 / oc3cmm:S-14:P-2:L-atm:l-1 / VPI: 3
Leaf Network Element:
VPI: 3
VCI:
34
Segment Endpoint Ingress NDC
Service Provider Profile
Remote Interface Identifier: 0
Remote Connection Identifier:
VPI: VCI:
Study Indication
Remote Interface Type:
UNI B-ICI FR UNI
<< Previous
Next >>
RETURNS TO PREVIOUS CONTINUES TO NEXT
CONFIGURATION WINDOW. CONFIGURATION WINDOW.
Administrative State:
Please map the root VCI to the leaf VCI
Selected Translation:
ROOT VCI ---> LEAF VCI
------------
------------
>>
34
35
<<
Next >>
CONTINUES TO NEXT CLOSES WINDOW
CONFIGURATION SCREEN WITHOUT SAVING
AFTER ALL SELECTIONS CHANGES.
HAVE BEEN MADE.
Administrative State:
Locked
Unlocked
Egress NDC
Egress NDC
Close
CLOSES CONFIGURATION
WINDOW WITHOUT SAVING
CHANGES.
X
Locked
Unlocked
53
54
Close
14460-A
X
LOCKS ROOT END OF
THE CONNECTION ONLY.
USE SLIDERS TO SCROLL
DOWN AND VIEW OTHER
CONFIGURATION OPTIONS.
14461-A
