ADC Release 3.1 User Manual page 375

DISPLAYS NE AND
CARD TYPE/SLOT
INFORMATION.
DOUBLE-CLICK ON
A PORT TO CHANGE
TO THAT PORT FOR
INTERFACE CONFIG-
URATION.
SELECT THE FIRST
CHANNEL AND/OR THE
LAST CONTIGUOUS
CHANNEL TO CREATE
AN INTERFACE.
Table 784-3. FE1 Frame Relay Interface Configuration Options
SELECTION DEFAULT
Interface Name <default>
Interface Contact <default>
Interface <default>
Location
Recording All 0s
Interface ID
Cellworx Vision: Frame Relay Interface
Node Name: NE-2
Node ID: 4
Location: Broadway
Double click on an interface to display it.
Select a channel number with the left mouse button to start channel selection.
Select a channel number with the right mouse button to end channel selection.
Select a port to switch ports.
Interface Name:
Port Channel
X
1
Interface Contact:
2 X
3 X Interface Location:
4 X
Recording Interface Id:
Operational Status:
Interface selection enabled
Provisioned Endpoints:
Interface creation allowed
DLCI Length:
1 2 3 4 5 6 7 8 9
Used Bandwidth:
2
1
Ingress:
Current
Effective Bandwidth:
Interface Type:
Signaling Parameters
Signaling Protocol:
None
Apply Delete
DELETES THE INTERFACE
SHOWN AS "CURRENT"
ABOVE.

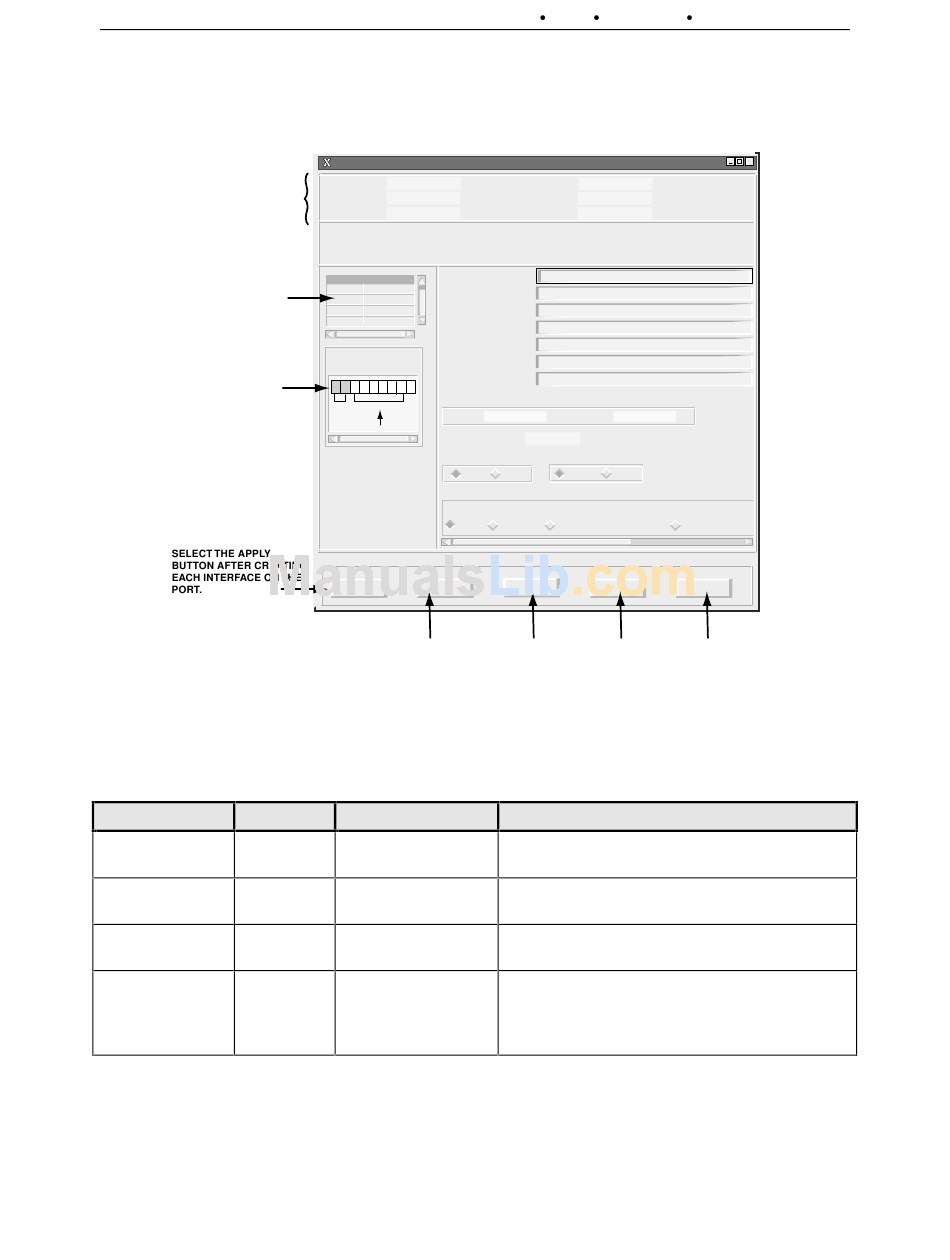

Figure 784-4. FE1 FRS Interface Configuration Window
OPTIONS
Any alphanumeric
characters.
Any alphanumeric
characters.
Any alphanumeric
characters.
Numeric
1152700 Issue 1 February 2001 Operation and Maintenance
Slot Number: 6
Card: FT1 FRS
Port Number: 4
DS0-E0 FRS : Slot 04 : Port 01 : Channels 01-24
default
default
0000000000000000
Up
0
2 Octets 10 Bits
Egress:
%
0.00
100.00 %
IWF Type:
FRF.5 FRF.8
UNI NNI
LMI Rev1 Annex D: ANSI T1.617D
Card View Refresh
RETURNS TO THE REFRESHES
CARD VIEW. SCREEN
DATA.
DEFINITIONS
User defined. Can describe the card type, slot,
port, and/or channel number, etc.
User defined. Can describe the name or number
of a contact person or place.
User defined. Can describe the location of the
interface (street, building, row, rack, shelf, etc.)
Identifies the site card and port location for
customer billing capabilities, (allows assignment
of a customer ID for each port), limited to 15
numeric characters.
© 2000, ADC Telecommunications, Inc.
DLP-784
Page 6 of 7
X
%
0.00
Annex A: CCITT Q
Close
CLOSES THE WINDOW
AND RETURNS TO THE
CARD VIEW WINDOW.
0026-012
(continued)
Page 2-355
