1152700 Issue 1 February 2001 Section 1 Introduction
NE AND CARD TYPE/
SLOT INFORMATION.
CARD REPRESENTATION
WITH REAL-TIME ALARM
INDICATIONS.
APPLIES CHANGES
AND SENDS TO SHELF
CONTROLLER.

GUI Menu Structure and Utilization

There are three possible methods for performing configuration tasks using the GUI;
1) utilizing the pull down menu trees, 2) mouse controlled popup menus, 3)
keyboard operations. Refer to Figure 1-9 for examples.
Using the mouse, click the right button over the work area to display the
popup menu and select desired task using the left mouse button. This may
bring up another pop up menu, depending on the task.
Using the mouse, select a topic on the menu bar above the work area using the
left mouse button. Select a task shown on the pull down menu using the left
mouse button. This may bring up a pop up menu, depending on the task.
Using the keyboard, select "Alt" plus the underlined letter of a topic shown on
the menu bar above the work area. This opens the pull down menu from the
menu bar. Using the arrow keys on the keyboard, step up or down to the
desired task and hit enter, or return, or right arrow. Other pop up menus may
be generated depending on the task.
Page 1-8
© 2000, ADC Telecommunications, Inc.
Cellworx Vision: Card View - 622 Ring Interface Card
NE Name: Cellworx1
NE Id: 1
Card: 622 Ring
Slot Number: 17
Port Number: 1
622
Ring
ADC
Status
Status
Active
Active
Protect
Timing Timing
Port
1
Apply Chassis View
RETURNS TO CHASSIS
VIEW WITHOUT CLOSING
CARD LEVEL VIEW.

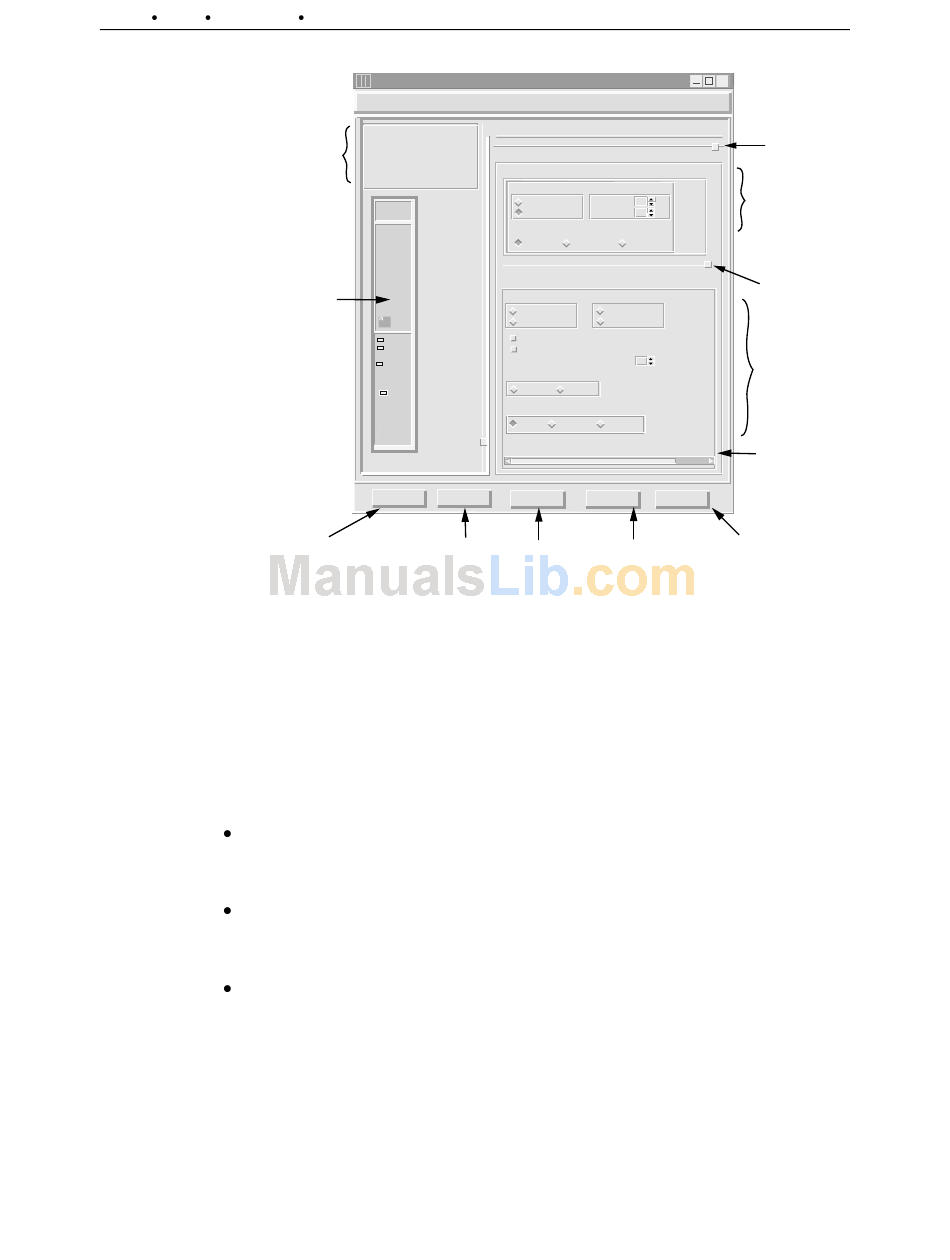

Figure 1-8. Cellworx Vision Card Level View (622 Ring Interface Card example)
Status:
Configuration:
Card Level
Administrative State: Congestion Thresholds:
80 %
Locked Ingress:
Unlocked Egress: %
80
Ring Selection :
Auto Ring 16 Ring 17
Port Level
Administrative State: Transmit Timing Source:
Locked System
Unlocked Recieved
Do not use for synchronization
Enable signal degrade
Signal Degrade BER Threshold: 10E- 5
Medium Type:
SONET SDH
Loopback towards:
None Terminal Facility
Line Coding: sonetMediumNRZ
Line Type: sonetLongSingleMode
Diagnostics
Refresh Close
PERFORMS TEST REPAINTS WINDOW
OVER FIBER TO REFLECT ANY
CHANGES.
LINK.
X
CLICK ON BOX AND DRAG
UP OR DOWN TO WIDEN
STATUS OR CONFIGURATION
VIEWS.
CARD LEVEL
CONFIGURATION OPTIONS.
CLICK ON BOX AND DRAG UP
OR DOWN TO WIDEN PORT
LEVEL VIEW.
622 MBPS PORT LEVEL
CONFIGURATION OPTIONS.
USE SLIDERS TO VIEW
HIDDEN SELECTIONS.
CLOSES CARD LEVEL
VIEW AND RETURNS TO
SHELF LEVEL VIEW.
13443-B
