AT commands
Parameter
0
1
Default
0

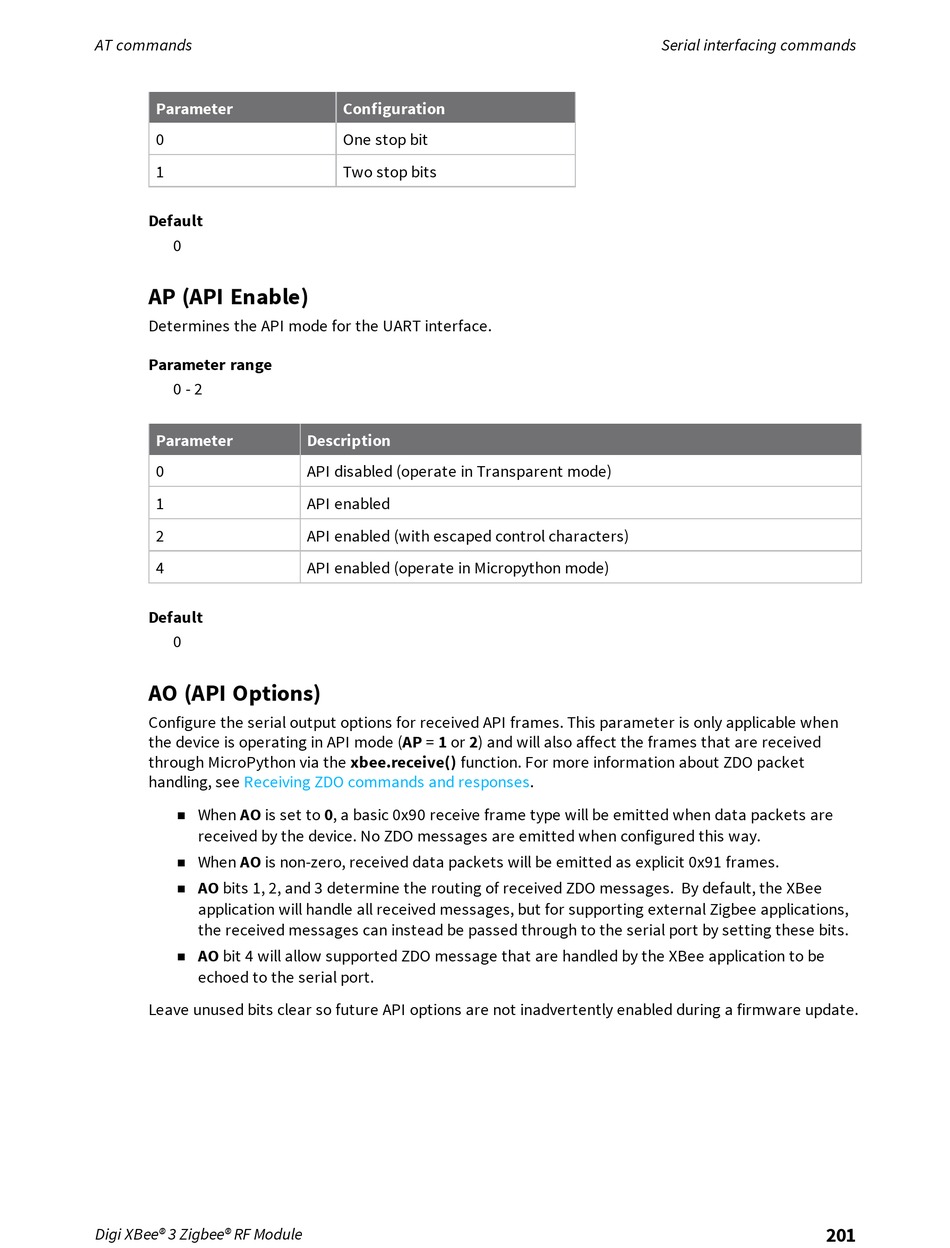

AP (API Enable)

Determines the API mode for the UART interface.
Parameter range
0 - 2
Parameter
0
1
2
4
Default
0

AO (API Options)

Configure the serial output options for received API frames. This parameter is only applicable when
the device is operating in API mode (AP = 1 or 2) and will also affect the frames that are received
through MicroPython via the xbee.receive() function. For more information about ZDO packet
handling, see Receiving ZDO commands and
When AO is set to 0, a basic 0x90 receive frame type will be emitted when data packets are
n
received by the device. No ZDO messages are emitted when configured this way.
When AO is non-zero, received data packets will be emitted as explicit 0x91 frames.
n
AO bits 1, 2, and 3 determine the routing of received ZDO messages. By default, the XBee
n
application will handle all received messages, but for supporting external Zigbee applications,
the received messages can instead be passed through to the serial port by setting these bits.
AO bit 4 will allow supported ZDO message that are handled by the XBee application to be
n
echoed to the serial port.
Leave unused bits clear so future API options are not inadvertently enabled during a firmware update.
Digi XBee® 3 Zigbee® RF Module
Configuration
One stop bit
Two stop bits
Description
API disabled (operate in Transparent mode)
API enabled
API enabled (with escaped control characters)
API enabled (operate in Micropython mode)
responses.
Serial interfacing commands
201
