Frame descriptions
Frame
data
fields Offset Description
Timeout
13-14
Password 15-n
Example
64-bit address: 0x00 00 00 00 00 00 00 00 (coordinator)
n
Options: 0x00 - Login with fixed timeout
n
Timeout: 0x1554 (arbitrary valid timeout)
n
Password: 'PASSWORD'
n
7E 00 16 2E 00 00 00 00 00 00 00 00 00 15 54 50 41 53 53 57 4F 52 44 F8
Frame data fields
Start delimiter
Length
Frame type
64-bit destination address
Session Options
Timeout
Digi XBee® 3 Zigbee® RF Module
Timeout value for the secure session in units of ⅒ th second. Accepts up to
0x4650 (30 minutes).
A session with a timeout of 0x0000 is considered a yielding session. Yielding
sessions will never time out, but if a server receives a request to start a session
when it has the maximum incoming sessions, the oldest yielding session will be
ended by the server to make room for the new session. Sessions with non-zero
timeouts will never be ended in this way.
The password set on the remote node (up to 64 ASCII characters)

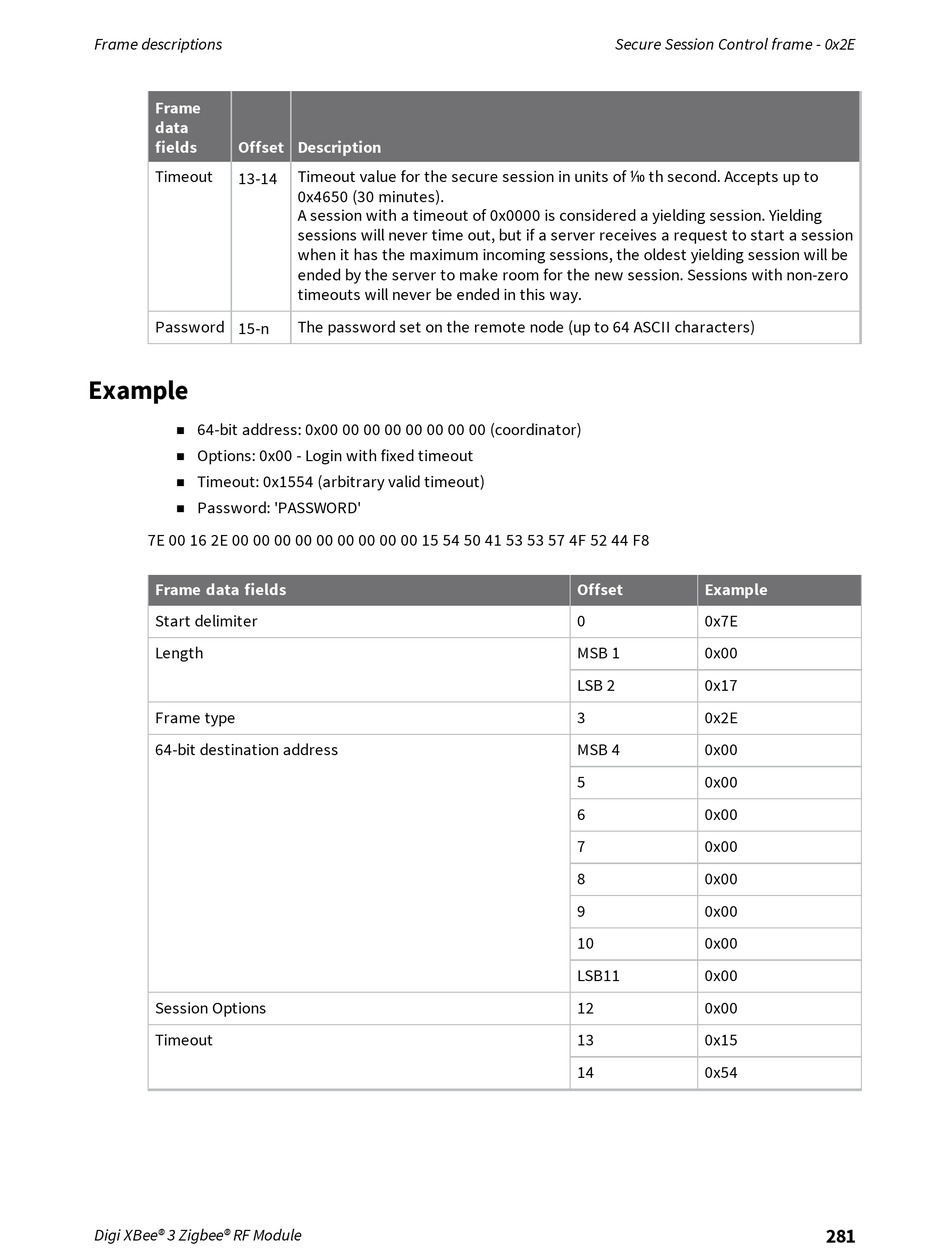

Secure Session Control frame - 0x2E
Offset Example
0 0x7E
MSB 1 0x00
LSB 2 0x17
3 0x2E
MSB 4 0x00
5 0x00
6 0x00
7 0x00
8 0x00
9 0x00
10 0x00
LSB11 0x00
12 0x00
13 0x15
14 0x54
