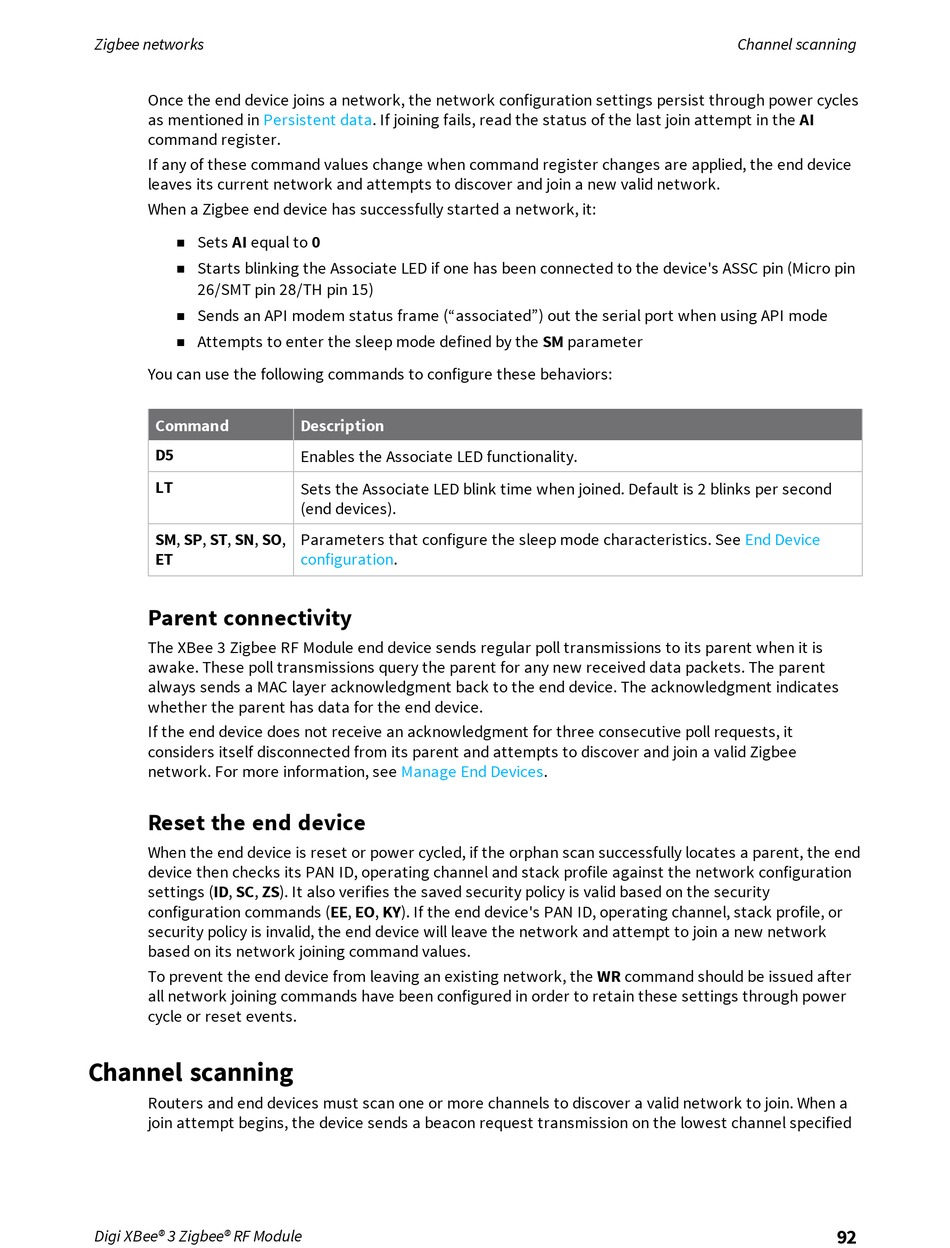

Zigbee networks
Once the end device joins a network, the network configuration settings persist through power cycles
as mentioned in Persistent
command register.
If any of these command values change when command register changes are applied, the end device
leaves its current network and attempts to discover and join a new valid network.
When a Zigbee end device has successfully started a network, it:
Sets AI equal to 0
n
Starts blinking the Associate LED if one has been connected to the device's ASSC pin (Micro pin
n
26/SMT pin 28/TH pin 15)
Sends an API modem status frame ("associated") out the serial port when using API mode
n
Attempts to enter the sleep mode defined by the SM parameter
n
You can use the following commands to configure these behaviors:
Command
D5
LT
SM, SP, ST, SN, SO,
ET

Parent connectivity

The XBee 3 Zigbee RF Module end device sends regular poll transmissions to its parent when it is
awake. These poll transmissions query the parent for any new received data packets. The parent
always sends a MAC layer acknowledgment back to the end device. The acknowledgment indicates
whether the parent has data for the end device.
If the end device does not receive an acknowledgment for three consecutive poll requests, it
considers itself disconnected from its parent and attempts to discover and join a valid Zigbee
network. For more information, see

Reset the end device

When the end device is reset or power cycled, if the orphan scan successfully locates a parent, the end
device then checks its PAN ID, operating channel and stack profile against the network configuration
settings (ID, SC, ZS). It also verifies the saved security policy is valid based on the security
configuration commands (EE, EO, KY). If the end device's PAN ID, operating channel, stack profile, or
security policy is invalid, the end device will leave the network and attempt to join a new network
based on its network joining command values.
To prevent the end device from leaving an existing network, the WR command should be issued after
all network joining commands have been configured in order to retain these settings through power
cycle or reset events.

Channel scanning

Routers and end devices must scan one or more channels to discover a valid network to join. When a
join attempt begins, the device sends a beacon request transmission on the lowest channel specified
