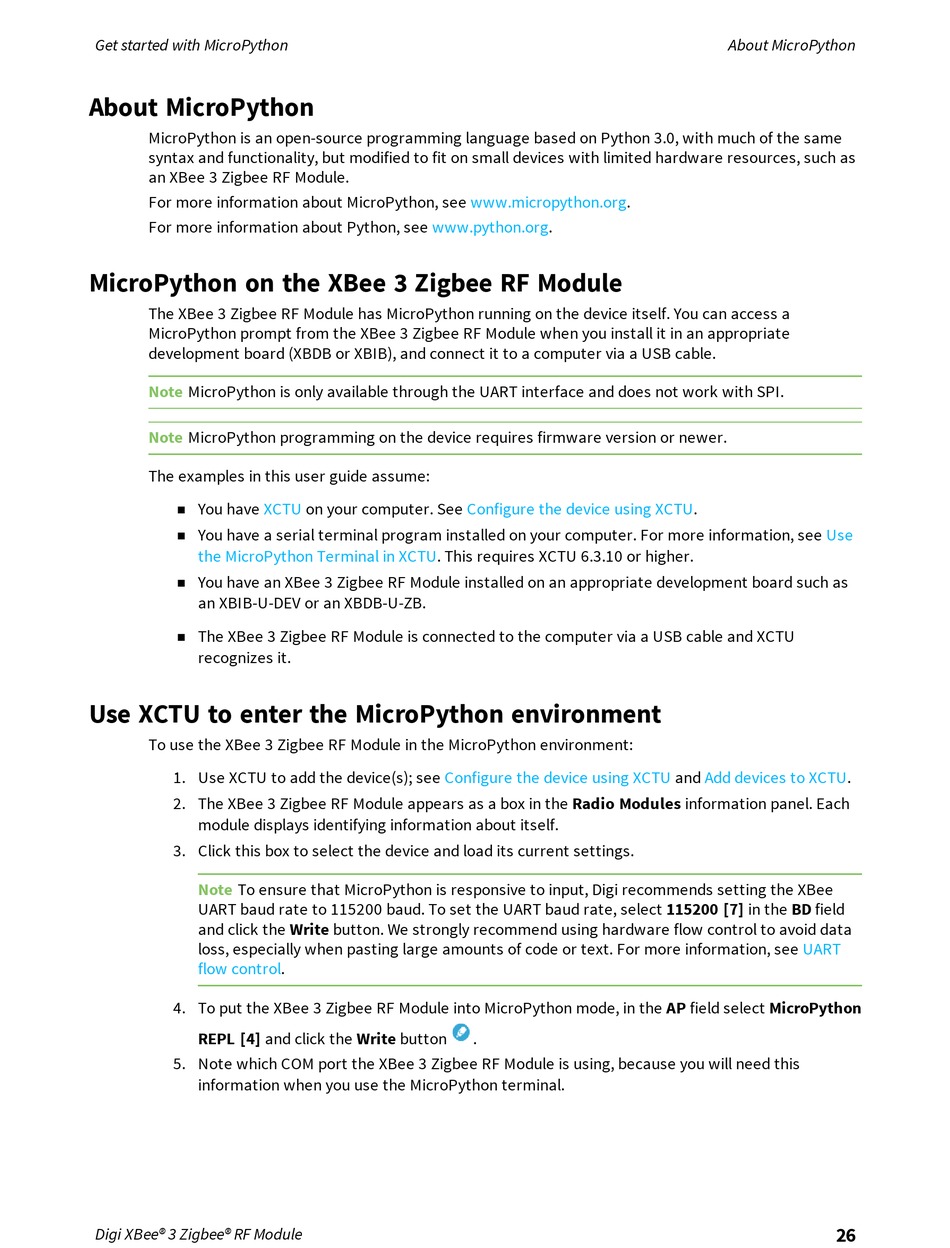

Get started with MicroPython

About MicroPython

MicroPython is an open-source programming language based on Python 3.0, with much of the same
syntax and functionality, but modified to fit on small devices with limited hardware resources, such as
an XBee 3 Zigbee RF Module.
For more information about MicroPython, see www.micropython.org.
For more information about Python, see www.python.org.

MicroPython on the XBee 3 Zigbee RF Module

The XBee 3 Zigbee RF Module has MicroPython running on the device itself. You can access a
MicroPython prompt from the XBee 3 Zigbee RF Module when you install it in an appropriate
development board (XBDB or XBIB), and connect it to a computer via a USB cable.
Note MicroPython is only available through the UART interface and does not work with SPI.
Note MicroPython programming on the device requires firmware version or newer.
The examples in this user guide assume:
You have XCTU
n
You have a serial terminal program installed on your computer. For more information, see
n
the MicroPython Terminal in
You have an XBee 3 Zigbee RF Module installed on an appropriate development board such as
n
an XBIB-U-DEV or an XBDB-U-ZB.
The XBee 3 Zigbee RF Module is connected to the computer via a USB cable and XCTU
n
recognizes it.

Use XCTU to enter the MicroPython environment

To use the XBee 3 Zigbee RF Module in the MicroPython environment:
1. Use XCTU to add the device(s); see
2. The XBee 3 Zigbee RF Module appears as a box in the Radio Modules information panel. Each
module displays identifying information about itself.
3. Click this box to select the device and load its current settings.
Note To ensure that MicroPython is responsive to input, Digi recommends setting the XBee
UART baud rate to 115200 baud. To set the UART baud rate, select 115200 [7] in the BD field
and click the Write button. We strongly recommend using hardware flow control to avoid data
loss, especially when pasting large amounts of code or text. For more information, see
flow control.
4. To put the XBee 3 Zigbee RF Module into MicroPython mode, in the AP field select MicroPython
REPL [4] and click the Write button
5. Note which COM port the XBee 3 Zigbee RF Module is using, because you will need this
information when you use the MicroPython terminal.
Digi XBee® 3 Zigbee® RF Module
on your computer. See Configure the device using
XCTU. This requires XCTU 6.3.10 or higher.
Configure the device using XCTU
.
About MicroPython
XCTU.
Use
and Add devices to XCTU.
