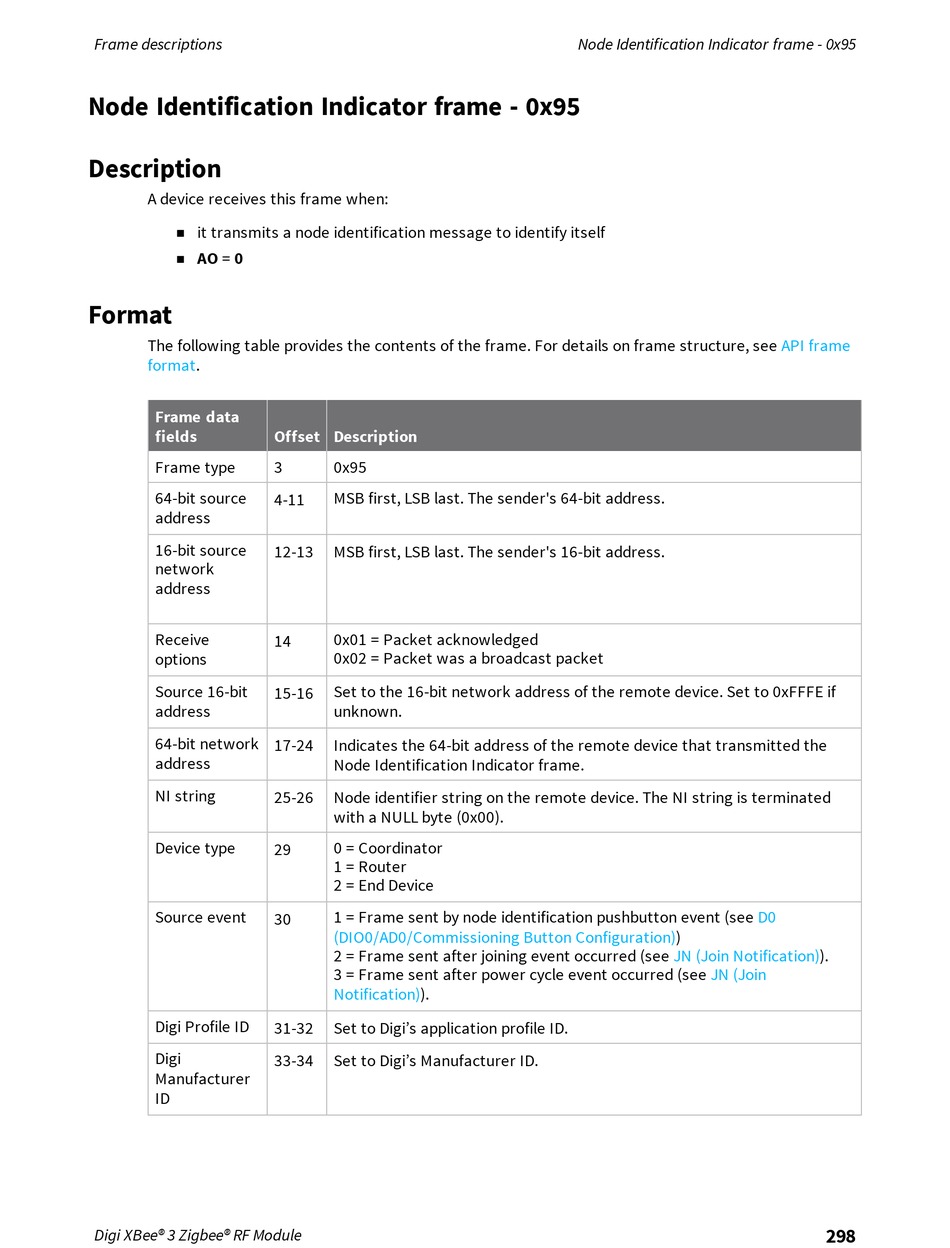

Node Identification Indicator frame - 0x95

Description
A device receives this frame when:
it transmits a node identification message to identify itself
n
AO = 0
n
Format
The following table provides the contents of the frame. For details on frame structure, see
format.
Frame data
fields
Frame type
64-bit source
address
16-bit source
network
address
Receive
options
Source 16-bit
address
64-bit network
address
NI string
Device type
Source event
Digi Profile ID
Digi
Manufacturer
ID
Digi XBee® 3 Zigbee® RF Module
Offset Description
3 0x95
MSB first, LSB last. The sender's 64-bit address.
4-11
12-13 MSB first, LSB last. The sender's 16-bit address.
0x01 = Packet acknowledged
14
0x02 = Packet was a broadcast packet
Set to the 16-bit network address of the remote device. Set to 0xFFFE if
15-16
unknown.
17-24 Indicates the 64-bit address of the remote device that transmitted the
Node Identification Indicator frame.
25-26 Node identifier string on the remote device. The NI string is terminated
with a NULL byte (0x00).
0 = Coordinator
29
1 = Router
2 = End Device
1 = Frame sent by node identification pushbutton event (see
30
(DIO0/AD0/Commissioning Button
2 = Frame sent after joining event occurred (see
3 = Frame sent after power cycle event occurred (see
Notification)).
31-32 Set to Digi's application profile ID.
33-34 Set to Digi's Manufacturer ID.
Node Identification Indicator frame - 0x95
Configuration))
JN (Join Notification)).
JN (Join
API frame
D0
