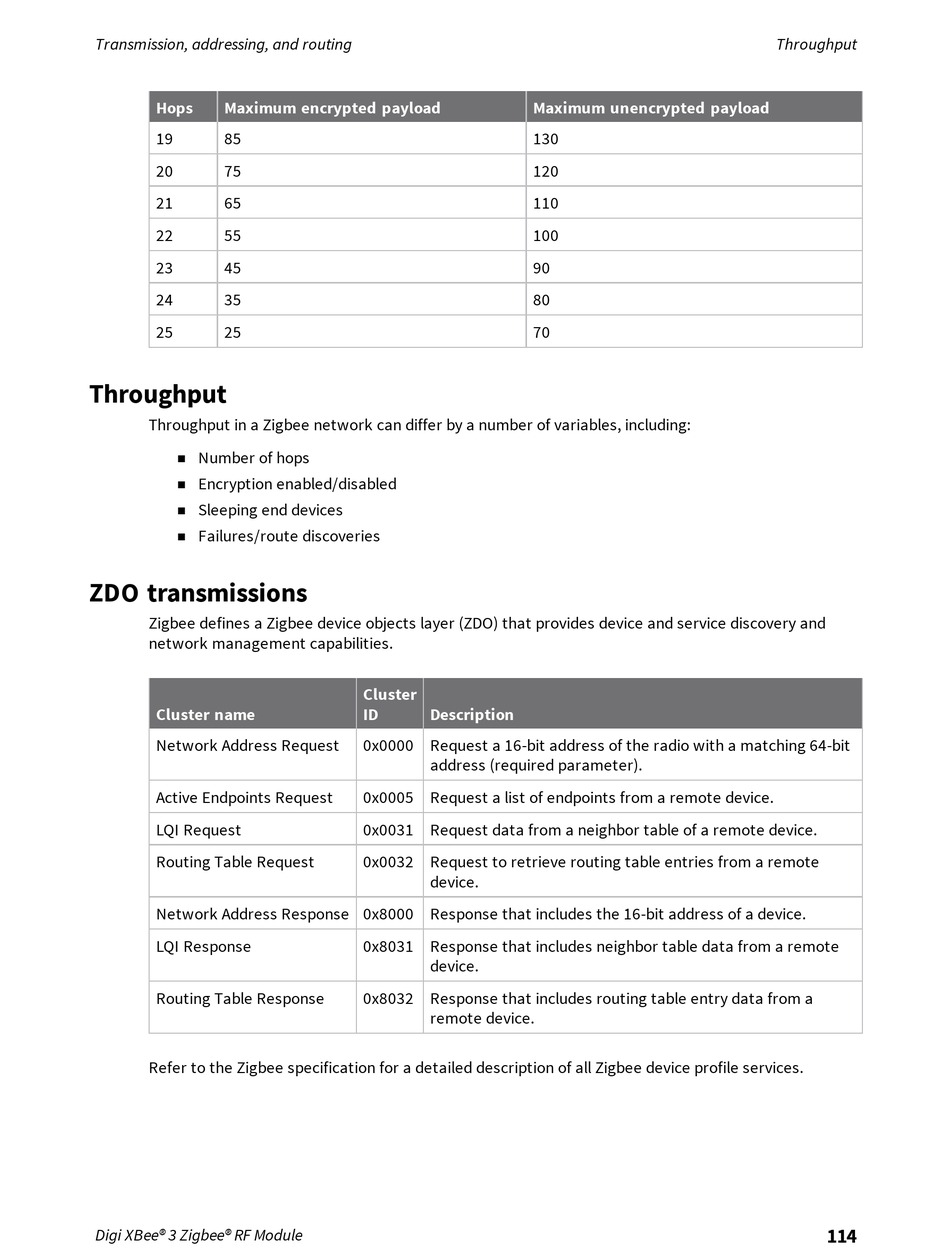

Transmission, addressing, and routing
Hops Maximum encrypted payload
19 85
20 75
21 65
22 55
23 45
24 35
25 25

Throughput

Throughput in a Zigbee network can differ by a number of variables, including:
Number of hops
n
Encryption enabled/disabled
n
Sleeping end devices
n
Failures/route discoveries
n

ZDO transmissions

Zigbee defines a Zigbee device objects layer (ZDO) that provides device and service discovery and
network management capabilities.
Cluster name
Network Address Request
Active Endpoints Request
LQI Request
Routing Table Request
Network Address Response 0x8000 Response that includes the 16-bit address of a device.
LQI Response
Routing Table Response
Refer to the Zigbee specification for a detailed description of all Zigbee device profile services.
Digi XBee® 3 Zigbee® RF Module
Maximum unencrypted payload
130
120
110
100
90
80
70
Cluster
ID Description
0x0000 Request a 16-bit address of the radio with a matching 64-bit
address (required parameter).
0x0005 Request a list of endpoints from a remote device.
0x0031 Request data from a neighbor table of a remote device.
0x0032 Request to retrieve routing table entries from a remote
device.
0x8031 Response that includes neighbor table data from a remote
device.
0x8032 Response that includes routing table entry data from a
remote device.
Throughput
