infinite transmission (test behavior). This is HW based LBM/LBR and
Requires VOE.
<Count : uint>
size The number of bytes in the LBM PDU Data Pattern TLV
<size> The LBM frame size. This is entered as the wanted size (in bytes) of a
un-tagged frame containing LBM OAM PDU - including CRC (four
bytes). Example when 'Size' = 64 => Un-tagged frame size = DMAC(6)
+ SMAC(6) + TYPE(2) + LBM PDU LENGTH(46) + CRC(4) = 64
interval The number of bytes in the LBM PDU Data Pattern TLV
<interval> The interval between transmitting LBM PDU. in case 'count' != 0 this
dei Drop Eligible Indicator in case of tagged OAM.
multi OAM PDU is transmitted with multicast MAC.
uni OAM PDU is transmitted with unicast MAC. The MAC is taken from
peer MEP MAC database.
mac Loop Back unicast MAC to be used in case of LB against MIP.
<Mac : mac_addr>
mep-id Peer MEP-ID for unicast LB. The MAC is taken from peer MEP MAC
database.
<Mepid : uint>
Default:
None
Usage Guide:
To configure Loop Back of MEP.
Example:

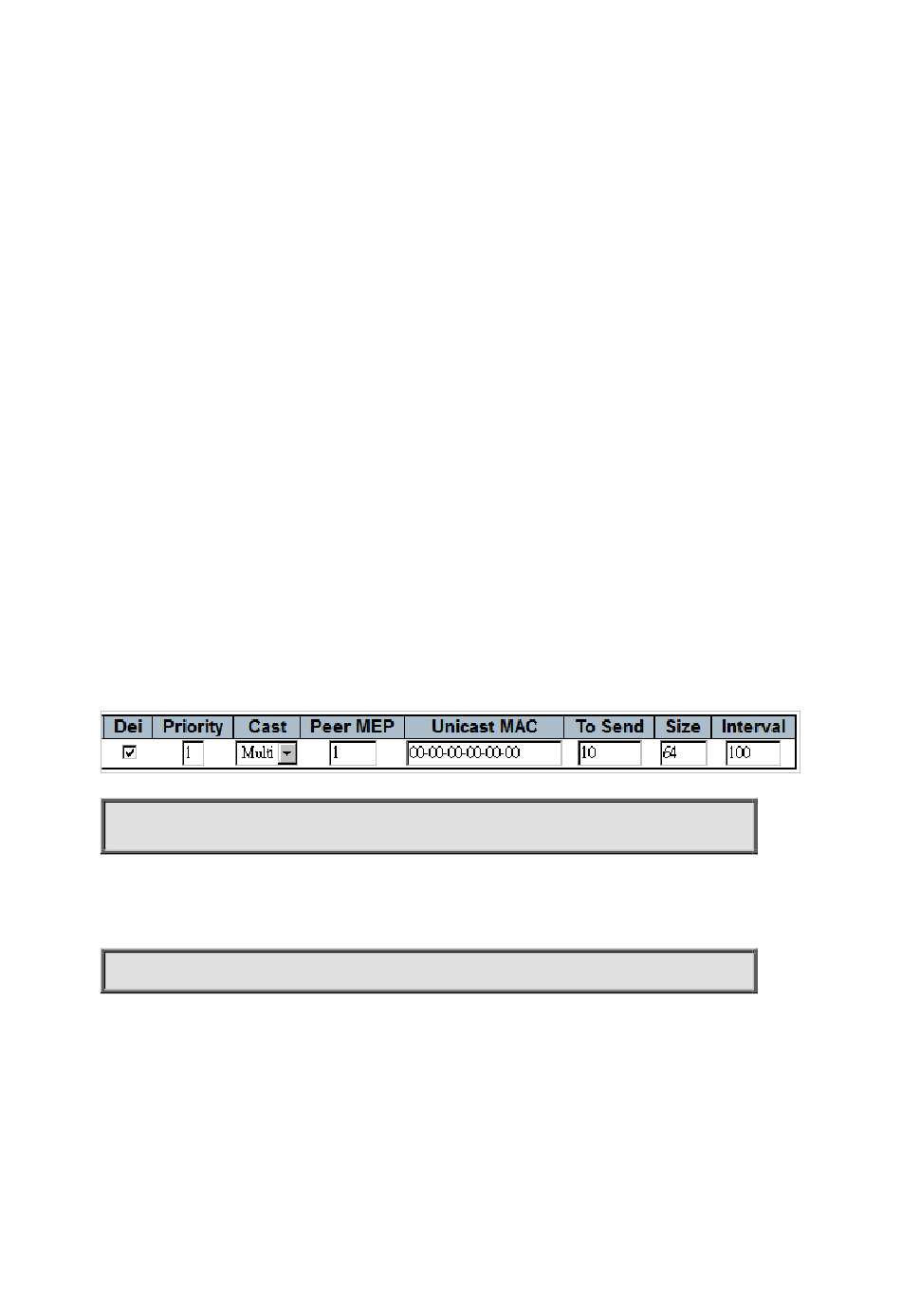

To configure Loop Back of MEP 2 as below table
Switch# configure terminal
Switch (config)# mep 2 lb 1 dei count 10 size 64 interval 100
mep <Instance> lck
Command:
mep <Instance> lck fr1m | fr1s
mep Maintenance Entity Point
<Instance> The MEP instance number.
lck Locked Signal
fr1m Frame rate is 1 f/min.
fr1s Frame rate is 1 f/s.
Default:
1 frame/sec
Usage Guide:
To configure Locked Frame Rate of MEP.
Example:
NS4750-24S-4T-4X-V2 Managed Switch Command Guide
Number of LBM PDU to send value
is in 10ms and max is 100. In case 'count' == 0 this is in 1us and
max is 10.000.
Loop Back target unicast MAC value
Peer MEP-ID value
