6.6 Coupling

The following are available standard Coupling for the 2-Finger Adaptive Robot Gripper – 200, to order see section
Spare Parts, Kits and Accessories.
B-061 : M8 Socket Head Cap Screws on 100mm PCD (Pitch Circle Diameter).
B-062 : M10 Socket Head Cap Screw on 125 mm PCD.
Info
For details on the available threads for Gripper mounting see
adapter .
Robotiq inc. © 2008-2013

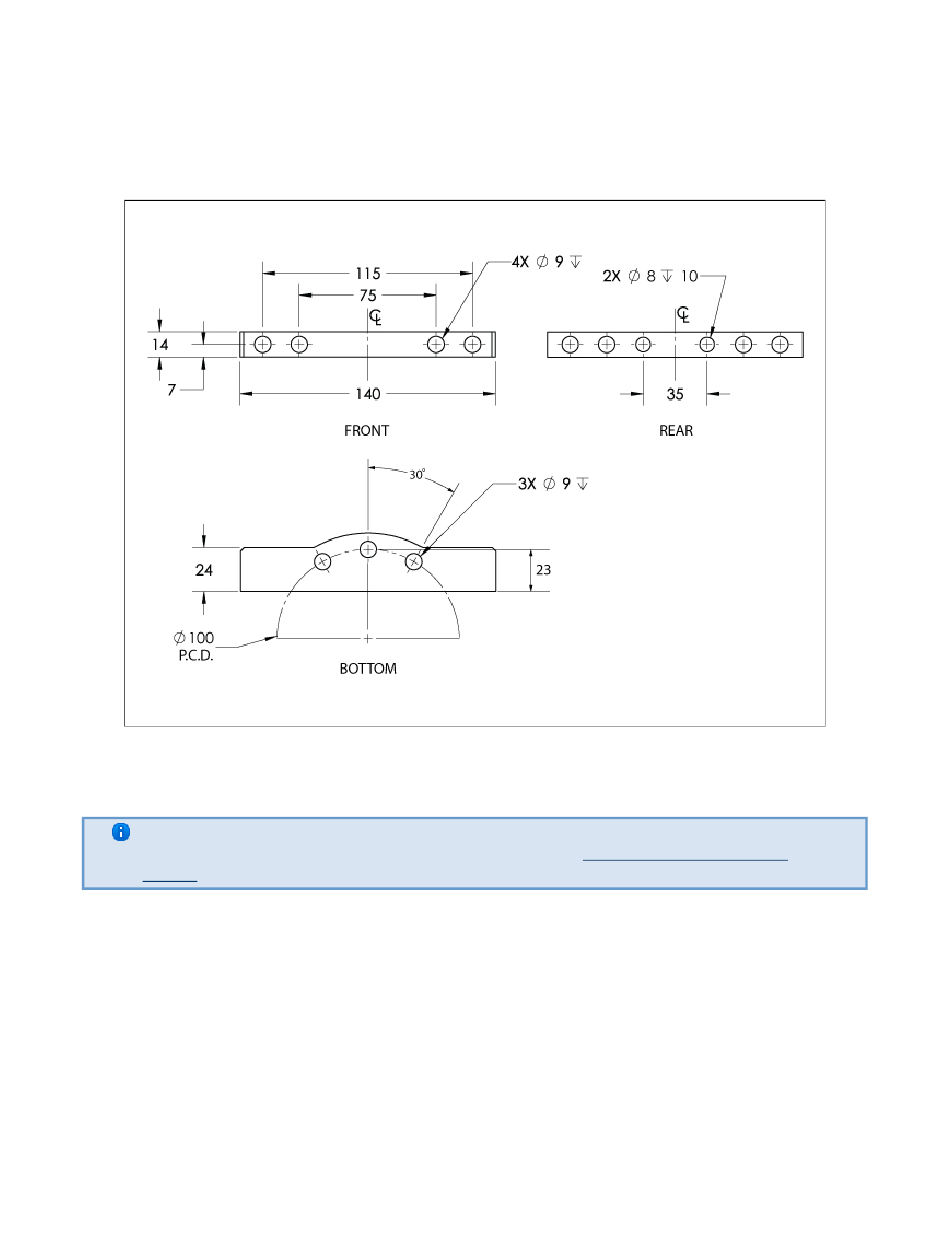

Figure 6.6.1 : B-061 coupling.
