4.4 Status LEDs
Four LED lights provide general information about the Gripper status on the controller communication panel. Figure
4.4.1 shows the LEDs and their locations.
There is an additional LED on the Gripper next to the Signal Cable Connector shown in figure 4.4.2
Robotiq inc. © 2008-2013

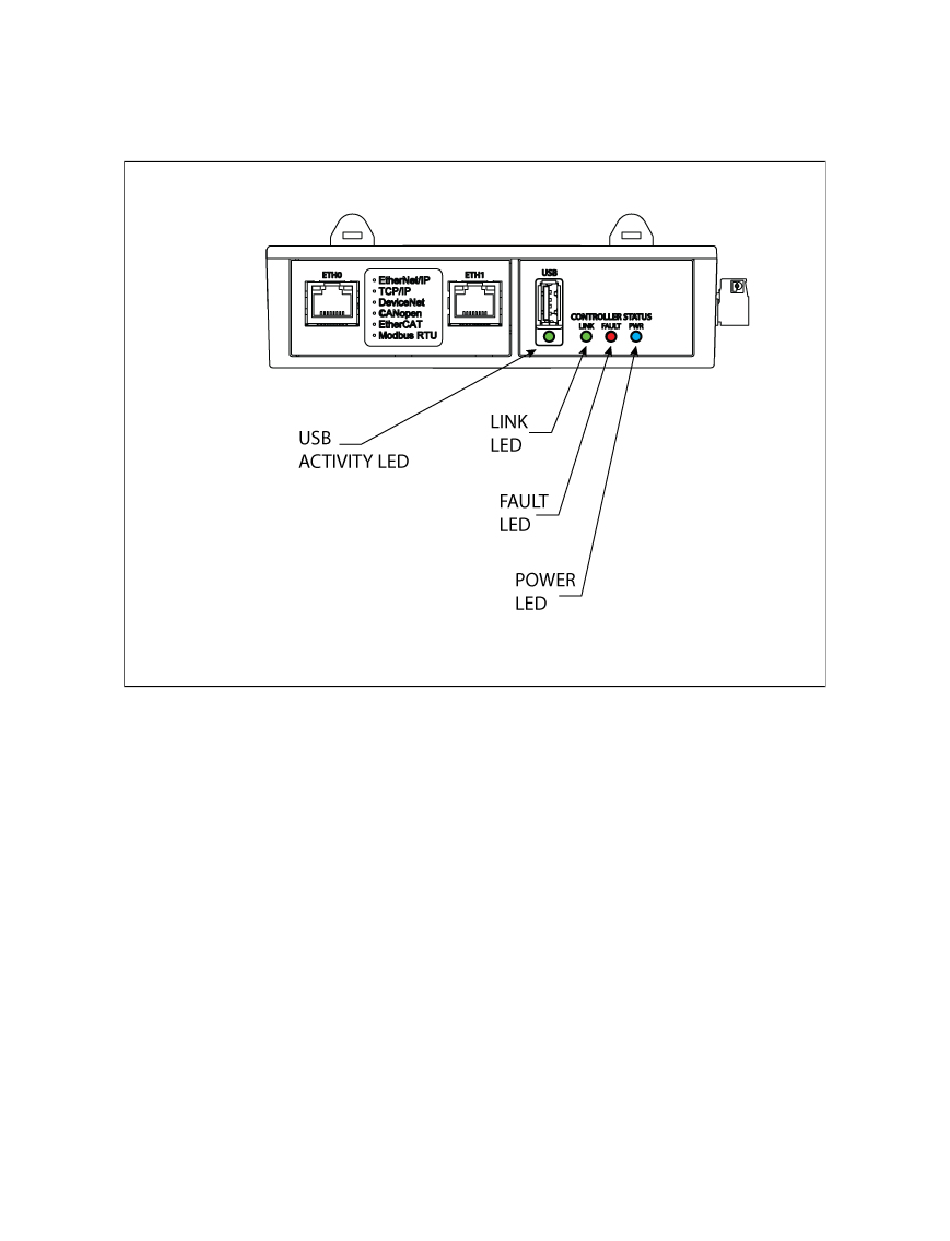

Figure 4.4.1 : Controller status LEDs.
Instruction Manual
38
