Popup Menus

Scrolling Popup

Pointer Popup

Revision C

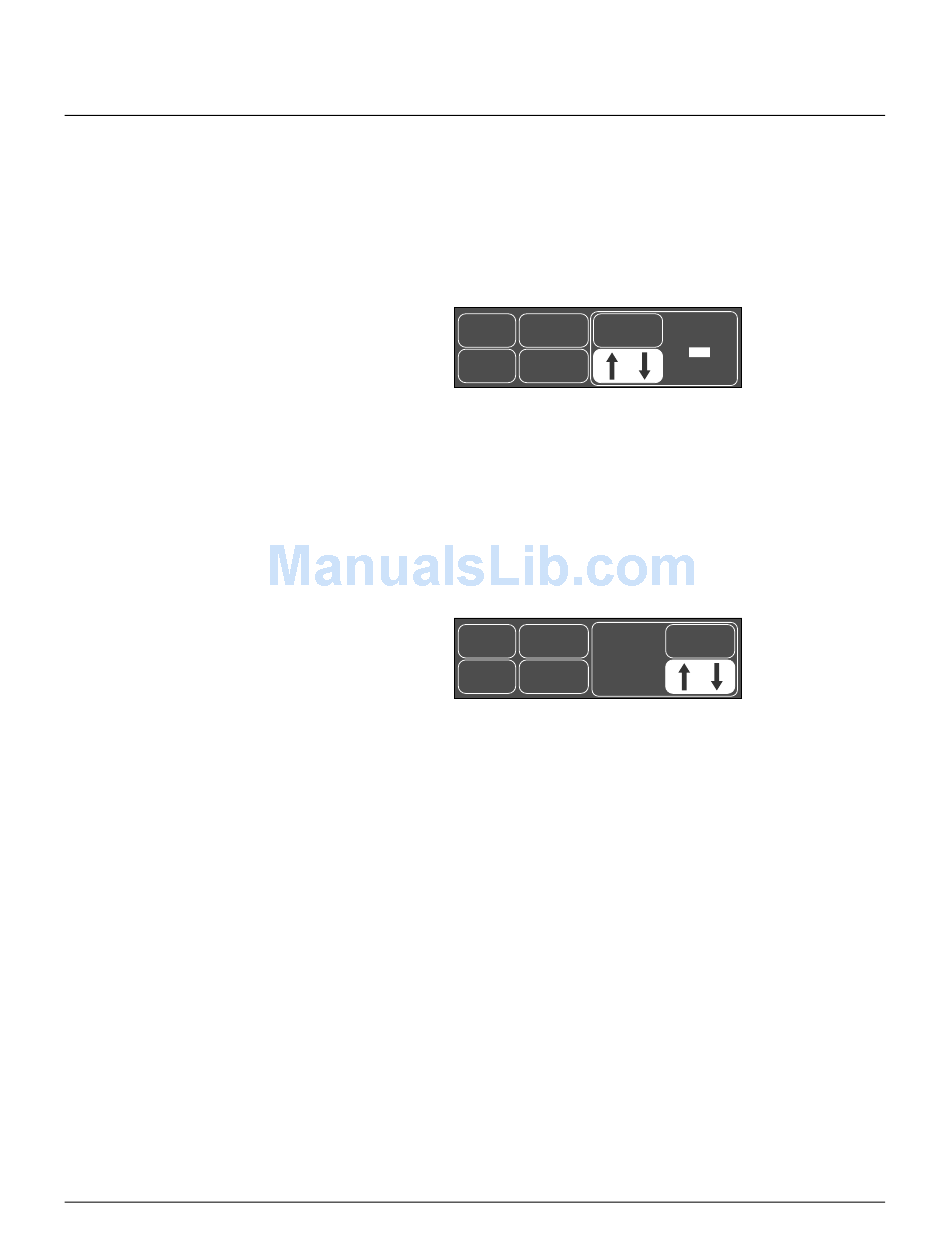

When some menu options are selected, a small menu "pops up" around the
selected menu option. These are called popup menus. There are different
types of popup menus. Those most commonly used are described below.
Note that with all popup menus, the original menu remains on the screen
but the options are dimmed. The popup menu must be closed before you can
select other options from the original menu.
MAIN
MENU
All available selections appear with the current selection highlighted. The
arrows are also highlighted indicating that the Trim Knob control can be
rotated (scrolled) to change the selection. When the Trim Knob control is
rotated, the new selection is highlighted and the change occurs
immediately on the screen so that the user can see if the selection is
appropriate before exiting the popup. Press the Trim Knob control to close
the popup menu.
MAIN
MENU
PREV.
MENU
All available selections appear and a pointer (>) is displayed. The arrows
are highlighted indicating that the Trim Knob control can be rotated to
move the pointer to another selection. However, before the change is
actually implemented, the Trim Knob control must be pressed. The popup
menu closes and the change is in effect.
Dash 2000 Patient Monitor
2005873-001
ECG
DISPLAY:
4X
SIZE
LEAD II
2X
1X
1X
0.5X
RELEARN
Scrolling Popup Menu
ECG DETECT
> OFF
FILTER PACE:
PACE 2
MONITORG OFF
PACE 1
QRS
HELP
WIDTH:
NORMAL
Pointer Popup Menu
