Select Parameters

6-6
1. Select the SELECT PARAMETERS option from the Graphic Trends Menu.
A popup menu and the Vital Signs information window are displayed.
27-APR-2001 17:10
II
VITAL SIGNS
27-APR
16:15
> HR
68
SPO2-% 99
SPO2-R
NBP-S
NBP-D
NBP-M
ALARMS
MAIN VIEW
MENU OLDER
PREV
MENU

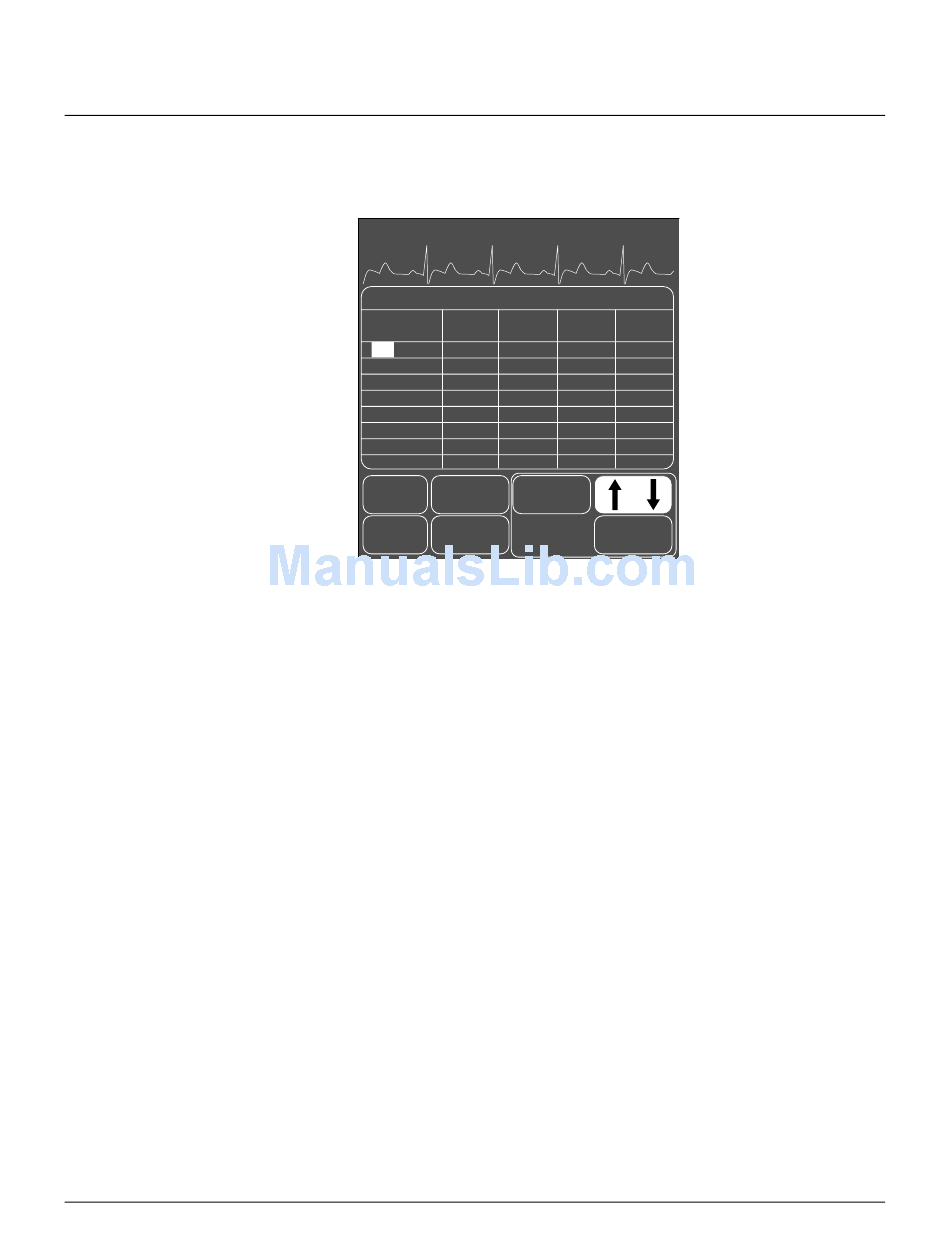

SELECT PARAMETERS Popup Menu
2. To mark (highlight) a parameter for trending, rotate the Trim Knob control
to move the pointer and then press the Trim Knob control. In this example
HR is highlighted because that is the default.
Up to two parameters can be selected. Selecting a third will unmark the
first selection chosen.
NOTE: NBP or an invasive pressure with a systolic, diastolic,
and mean value is considered one selection. For
example, if you select ART-S, the other two parameters
(ART-D and ART-M) will also highlight. However, the
trends for these parameters will appear in only one trend
window. If you only want to plot one of the three
pressure parameters, simply unmark those you don't
want.
3. When the parameters you want to plot as trends are highlighted, move
the pointer to RETURN and press the Trim Knob control. The popup
menu closes and the information window reconfigures to display the
trends.
Dash 2000 Patient Monitor
2005873-001
DAK.BED 1
27-APR-2001 17:10
27-APR 27-APR 27-APR
16:30 16:45 17:10
68 67 67
99 98 99
132
70
92
OFF OFF
MARK
PARAM
SELECT
PARAM.
078
Notice the pointer (>)
and a RETURN option
in this window.
