Handle – An optional alarm indicator can be
built into the handle of the monitor (not shown).
When activated, the LED indicator flashes red
for CRISIS and WARNING patient status alarms
and yellow for all other alarms.
Network Connector – A cable
can be connected to this port
for monitors used in the patient
monitoring network configuration.

Optional Nurse Call

Revision C
On the back of the monitor, you can find all connectors for equipment and
network. (See the illustration below.)
NOTE: Refer to the service manual for system safety requirements when
connecting the monitor to accessory equipment.
Peripheral
AC Power
Connector
Expansion
Connector

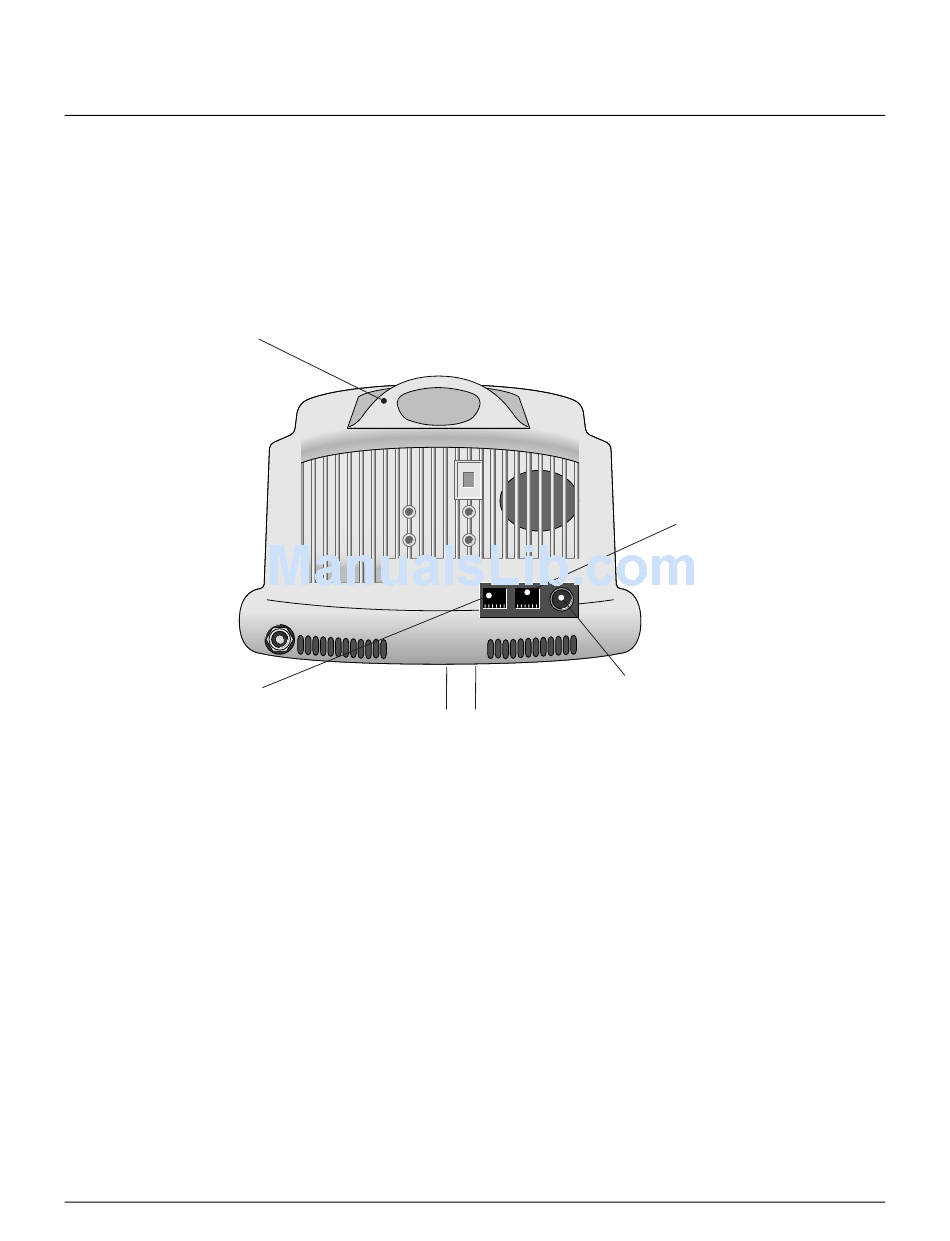

Monitor, Back View
For connection of the monitor to a nurse-call system, a separation line
according to IEC 60601 (4 kV voltage isolation) is required. Use parts set
2005693-001. Please note the information given in chapter 4, section
"Alarm Structure", on the different categories of transferred alarms.
Dash 2000 Patient Monitor
2005873-001
Aux Port – Used for
nurse call connector
only.
002
Defib Sync Connector – Provides ECG analog
output signals to user-supplied equipment. A 5-volt,
2-milisecond artificial pacer spike is added to the
analog output when PACE is on and detection
occurs. Refer to the Appendices, Analog Output, for
details on signal output.
1-3
