Components

The Monitoring
System

Dash 2000 Monitor

1-2
The Dash 2000 patient monitor can function by itself with a built-in writer
(optional) or it can be cabled in with the Unity network via Ethernet.
Optional components are, if cabled to Ethernet, a Centralscope central
station and the Clinical Information Center.
This device is designed to monitor a fixed set of parameters including ECG,
noninvasive blood pressure, impedance respiration, SpO2, and
temperature. Invasive pressure is an optional feature.
All of the patient cable connectors are located on the right side panel of the
monitor. The screen displays patient information in a logical, easily
understood format. A Trim Knob control provides single control operation of
virtually all monitor functions.
The monitor is available in both monochrome and color.
Screen
DASH 2000
21-NOV-1998 16:27 DAK.BED 1
II
SPO
2
MORE
MENUS
+ -

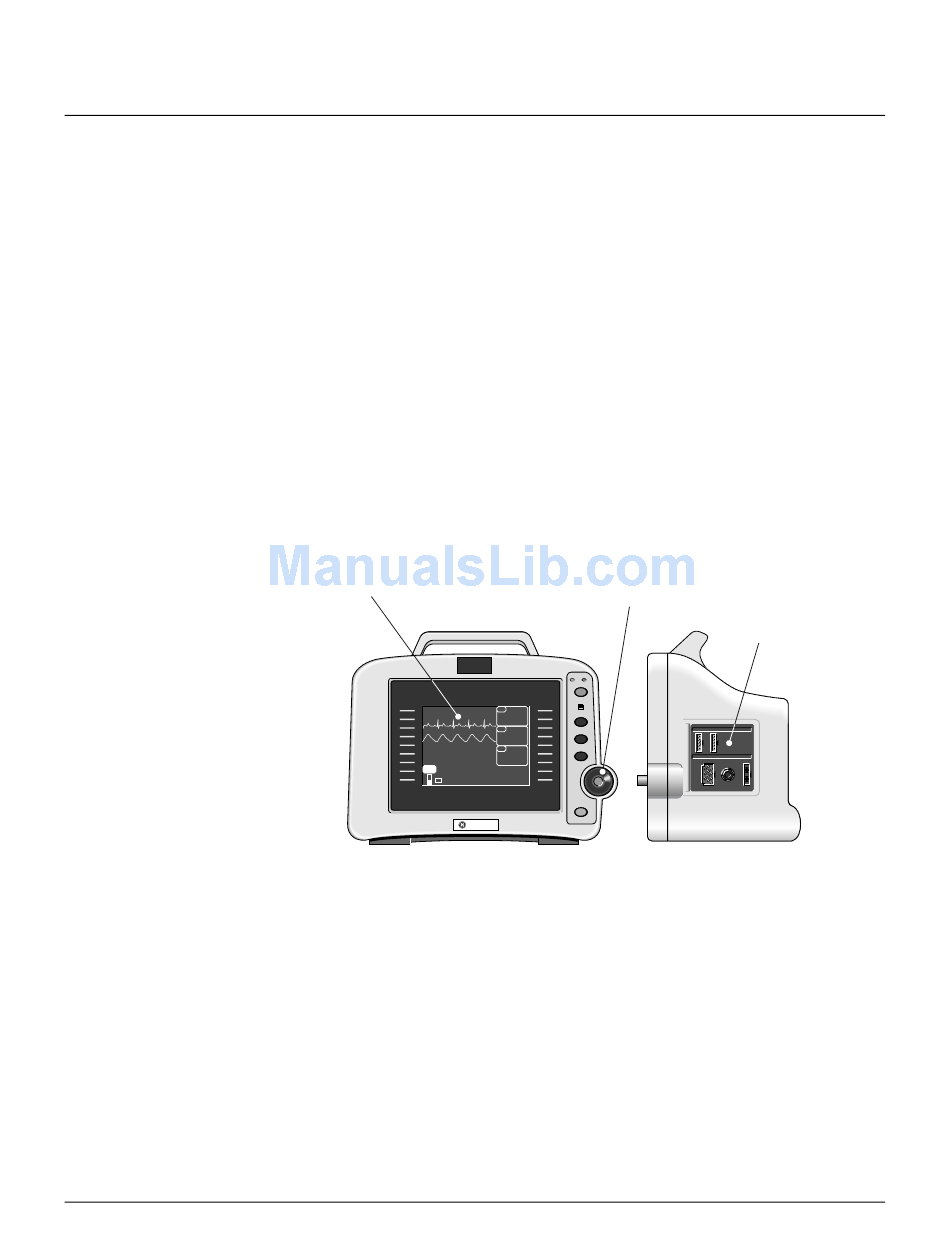

Monitor, Front and Side Views
The illustration above shows one invasive pressure connector (labeled BP).
This is an optional feature which your monitor may not have. References
are made to this optional feature throughout the manual. Please ignore
such references if this feature was not purchased with your monitor.
Dash 2000 Patient Monitor
2005873-001
Trim Knob
Control
AC Battery
Power
Charging Status
150/ 50
ECG
75
Graph Go/Stop
105/ 90
SPO
2
NBP Go/Stop
97
* * *
70
RT
200/ 80
NBP
Function
X/ X
X
ADT
Trim Knob
Silence Alarm
Patient Cable
Connectors
001
Revision C
