Respiration monitoring can be done with any ECG cable. Refer to the ECG
chapter for patient preparation and electrode placement.
This chapter gives guidelines for adjusting respiration setup, and problem
solving. The illustration below shows the location of the connector on the
side of the monitor used for impedance respiration monitoring.

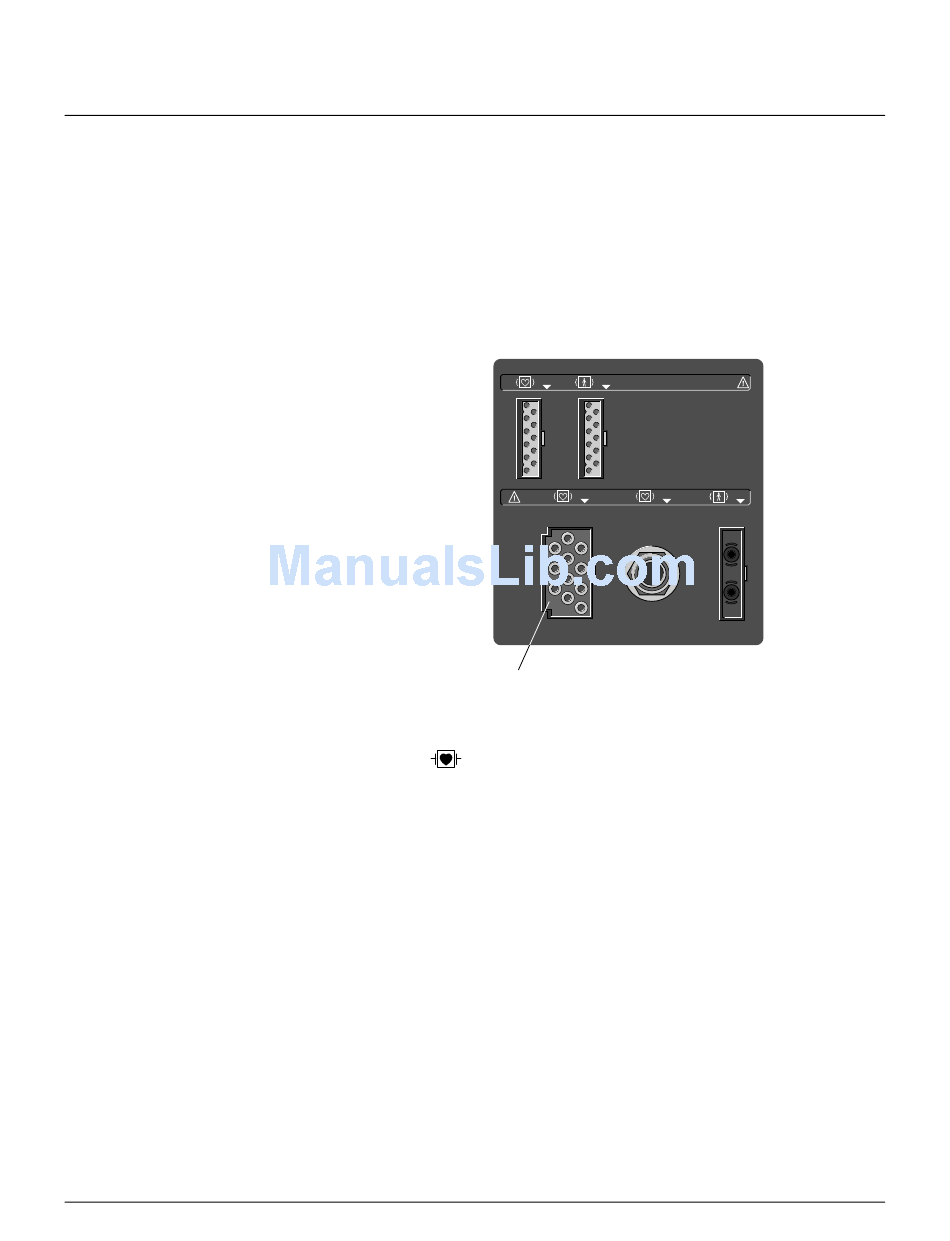

ECG/RESP Cable Connector
Dash 2000 Monitor—ECG/Resp Cable Connector
NOTE: The signal input is a high-insulation port and it is defibrillator-
proof ( ).
The insulated input ensures patient safety and protects the device
during defibrillation and electrosurgery.
NOTE: Respiration monitoring is not adversely affected by the use of a
patient cable with ESU filter as listed in the enclosed publication
"Accessories – Dash 2000/3000".
