Equipment Symbols

NOTE: The rating of protection
against electric shock
(indicated by symbol for
CF or BF) is achieved
only when used with
patient applied parts
recommended by
Medical Systems
Information
Technologies
.
Revision C

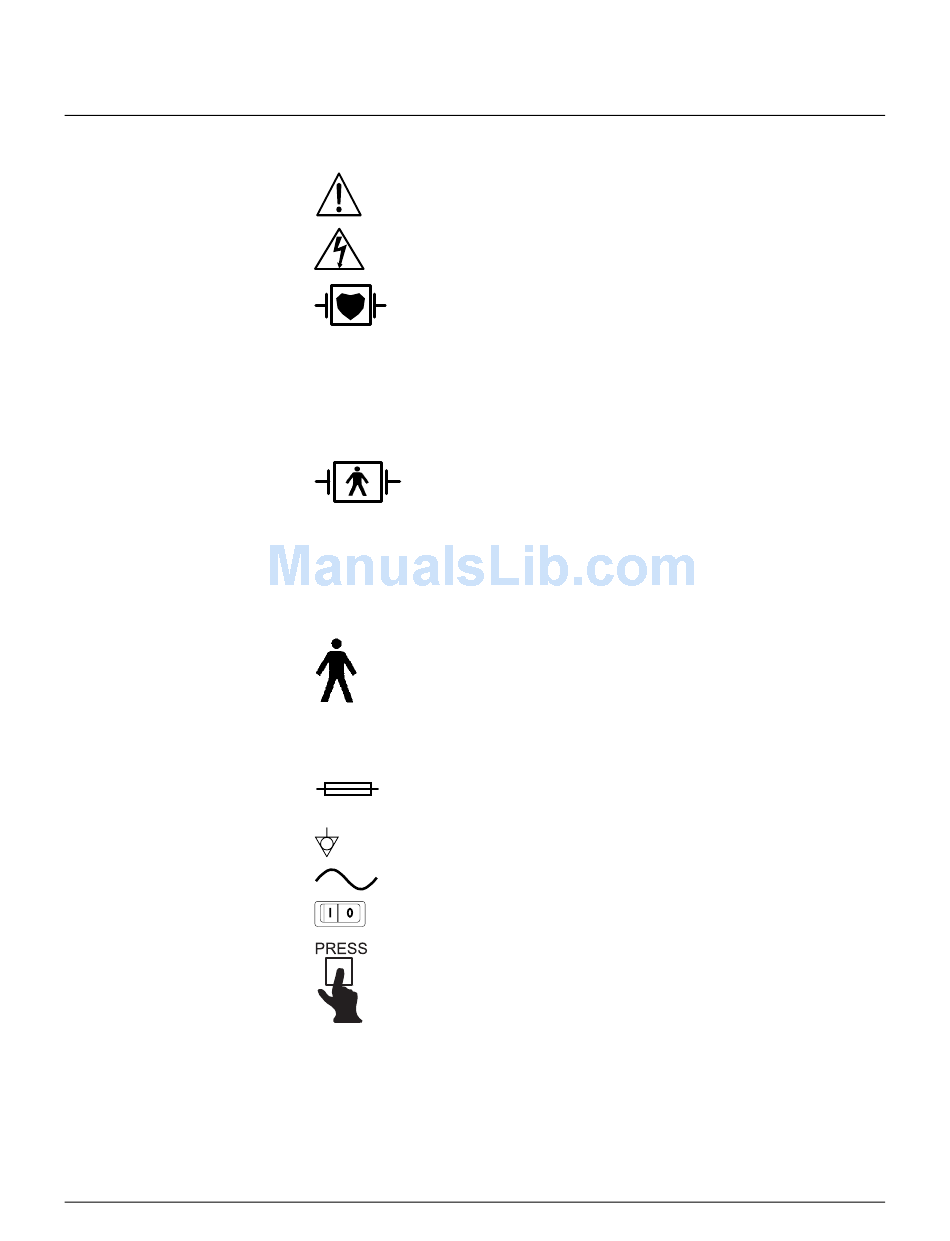

NOTE: Some symbols may not appear on all equipment.
ATTENTION: Consult accompanying documents
CAUTION: To reduce the risk of electric shock, do NOT
remove cover. Refer servicing to qualified service personnel.
TYPE CF APPLIED PART: Insulated (floating) applied part
suitable for intentional external and internal application to
the patient including direct cardiac application. "Paddles"
outside the box indicate the applied part is defibrillator proof.
Medical Standard Definition: F-type applied part
(floating/insulated) complying with the specified requirements
of IEC 60601-1/UL 2601-1/CSA 601.1 Medical Standards to
provide a higher degree of protection against electric shock
than that provided by type BF applied parts.
TYPE BF APPLIED PART: Insulated (floating) applied part
suitable for intentional external and internal application to
the patient excluding direct cardiac application. "Paddles"
GE
outside the box indicate the applied part is defibrillator proof.
Medical Standard Definition: F-type applied part
(floating/insulated) complying with the specified requirements
of IEC 60601-1/UL 2601-1/CSA 601.1 Medical Standards to
provide a higher degree of protection against electric shock
than that provided by type B applied parts.
TYPE B APPLIED PART: Non-insulated applied part suitable
for intentional external and internal application to the patient
excluding direct cardiac application.
Medical Standard Definition: Applied part complying with the
specified requirements of IEC 60601-1/UL 2601-1/CSA 601.1
Medical Standards to provide protection against electric shock,
particularly regarding allowable leakage current.
Fuse
Equipotentiality
Alternating current (AC)
Power; I = ON; O = OFF
Indicates where to press to open the door on the DDW.
Dash 2000 Patient Monitor
2005873-001
2-13
